Indoor Blower Motors
v0.2
Replacing the Premium ECM Control Module
Warning – You must have the correct replacement module. USING THE
WRONG MODULE VOIDS ALL PRODUCT WARRANTIES AND MAY PRODUCE
UNEXPECTED RESULTS.
Warning – Disconnect AC power from the HVAC system and wait 5 minutes
before opening the motor to avoid electrical shock from the motor’s
capacitors.

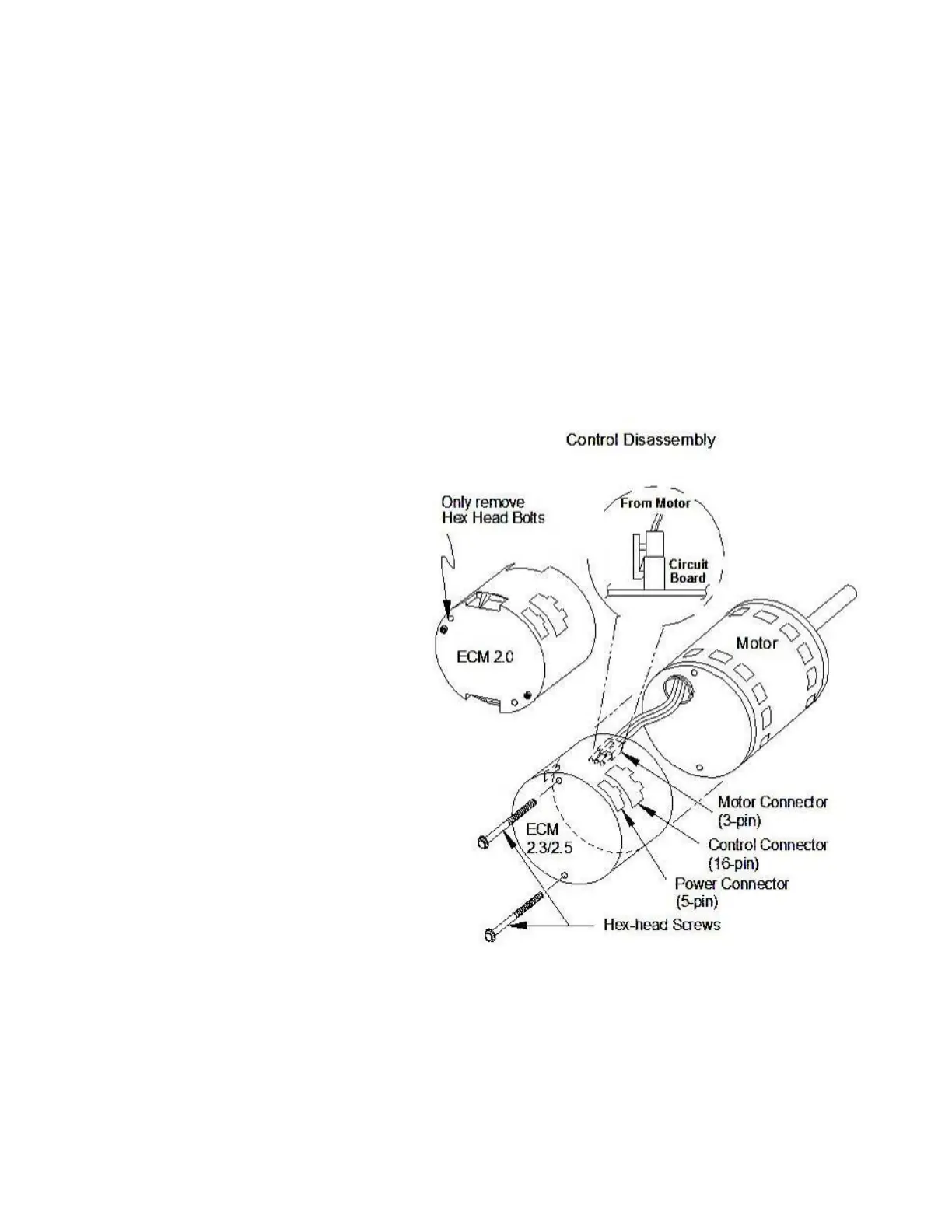

1. Unplug the 5-pin connector and the 16-pin connector from the motor control.
2. Remove the blower assembly from the HVAC system.
3. Remove the two (2)
hex-head screws from
the back of the control.
4. Unplug the 3-pin
connector from inside
the control by
squeezing the latch and
gently pulling on the
connector.
5. Ensure the motor
module is not damaged
by performing the two
simple tests listed on
page 65.
