Indoor Blower Motors
v0.2
Replacing the X13 Motor
When replacing the X13 motor keep in mind that this is a one piece motor that is
replaced as a whole and is not field repairable.
This motor must be a direct replacement from the OEM for the specific model,
voltage and size unit it came from. There are no generic replacement motors.

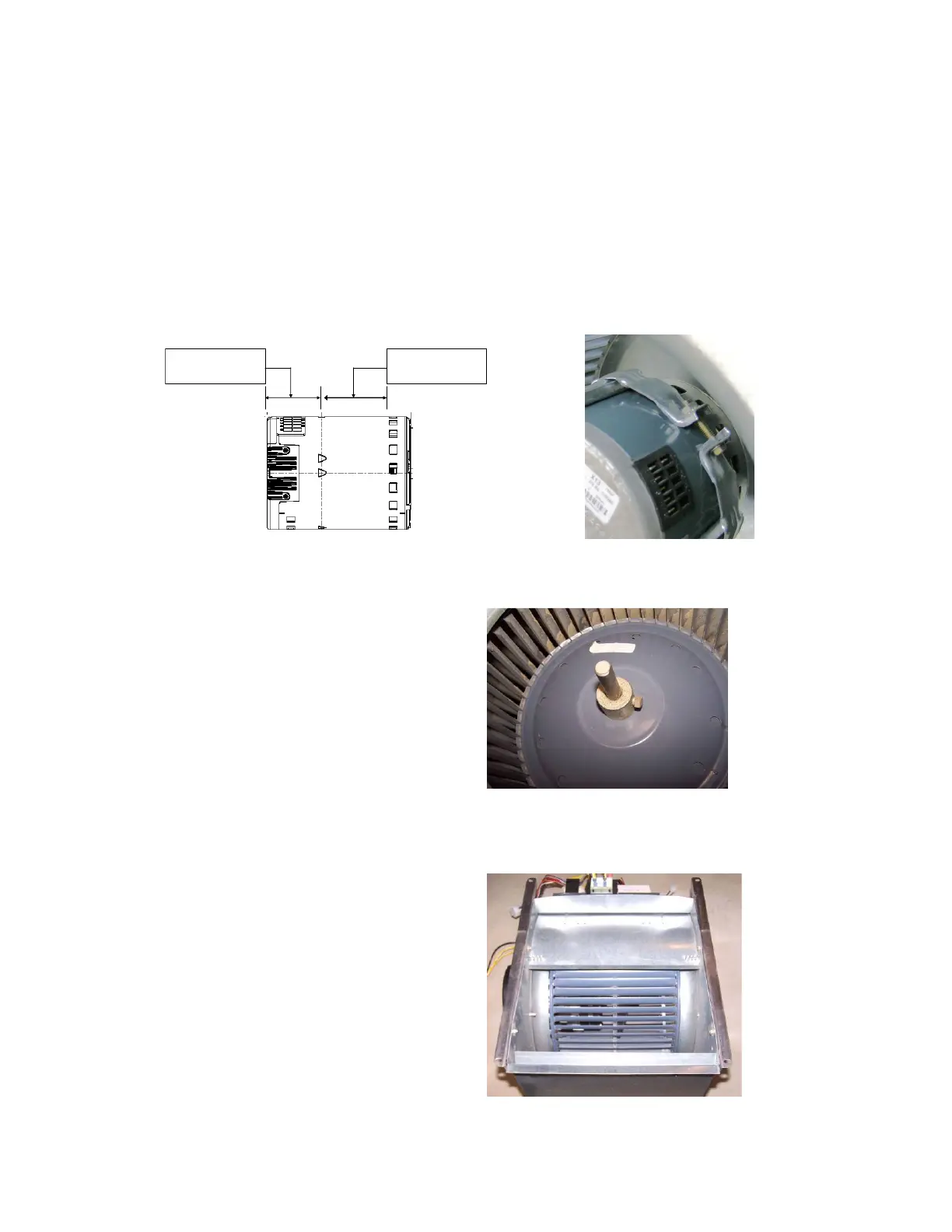

When using a bellyband for mounting, the band should not be located in the area
identified in the drawing as the “Keep Out Area”.
Always make sure to tighten the wheel key on the flat side of the motor shaft with
blower wheel centered in the housing.
If the wheel sits too close to the motor when centered or cannot be centered
because it hits the motor, the motor must be adjusted in the belly band.
2.75” Bellyband
Keep Out Area
Recommended
Bellyband Area
