Indoor Blower Motors

v0.2

X13 Connections

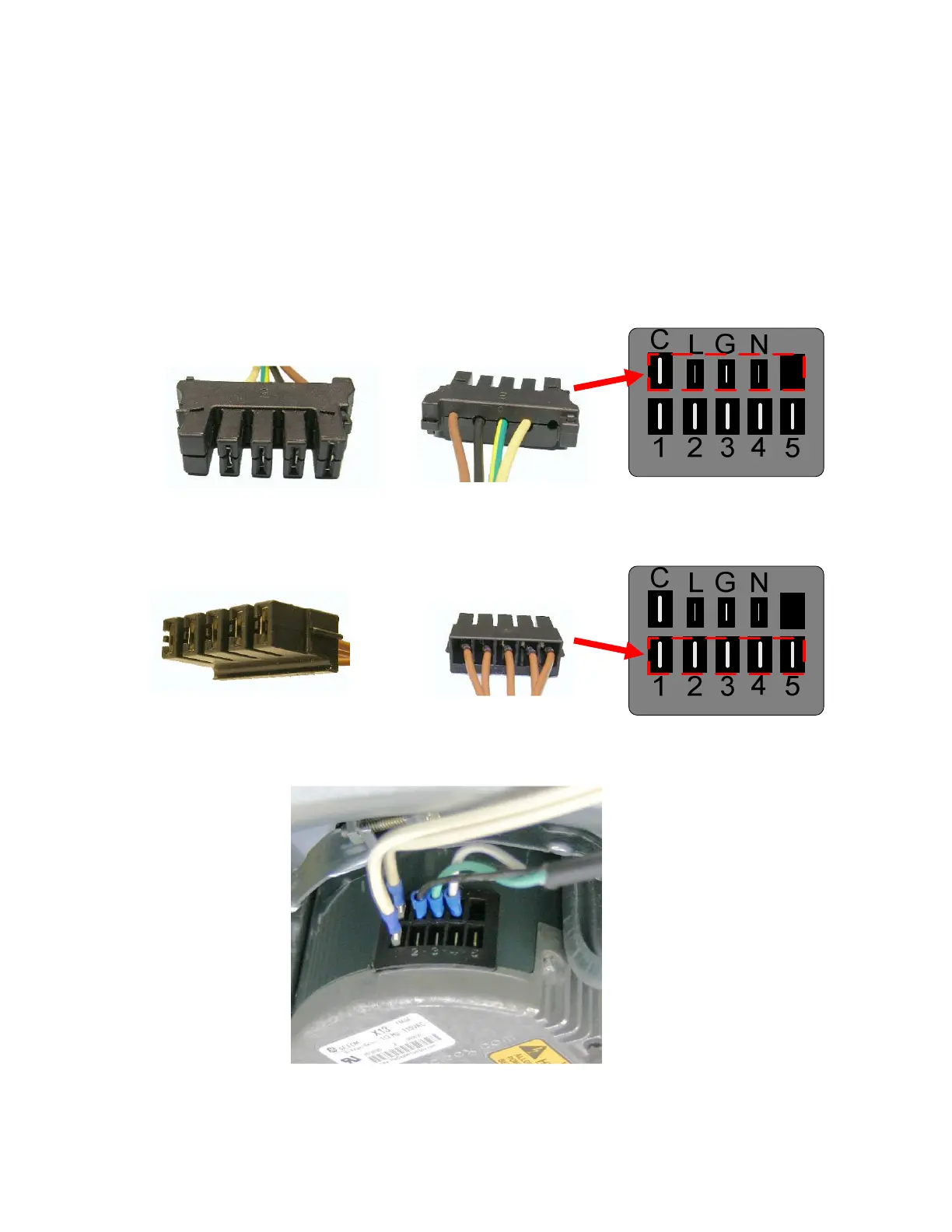

The wiring connections to the X13 can be made with connectors or individual wires.

Connectors –

The high voltage connection plug contains the three 3/16” terminals for (L), (G),

and (N), and one 1/4” terminal for (C).

The low voltage connection plug contains the five (1-5) 1/4” terminals.

Each of these terminals could also be individually wired as shown here.
