Battery Switch Circuitry
Battery
Switch

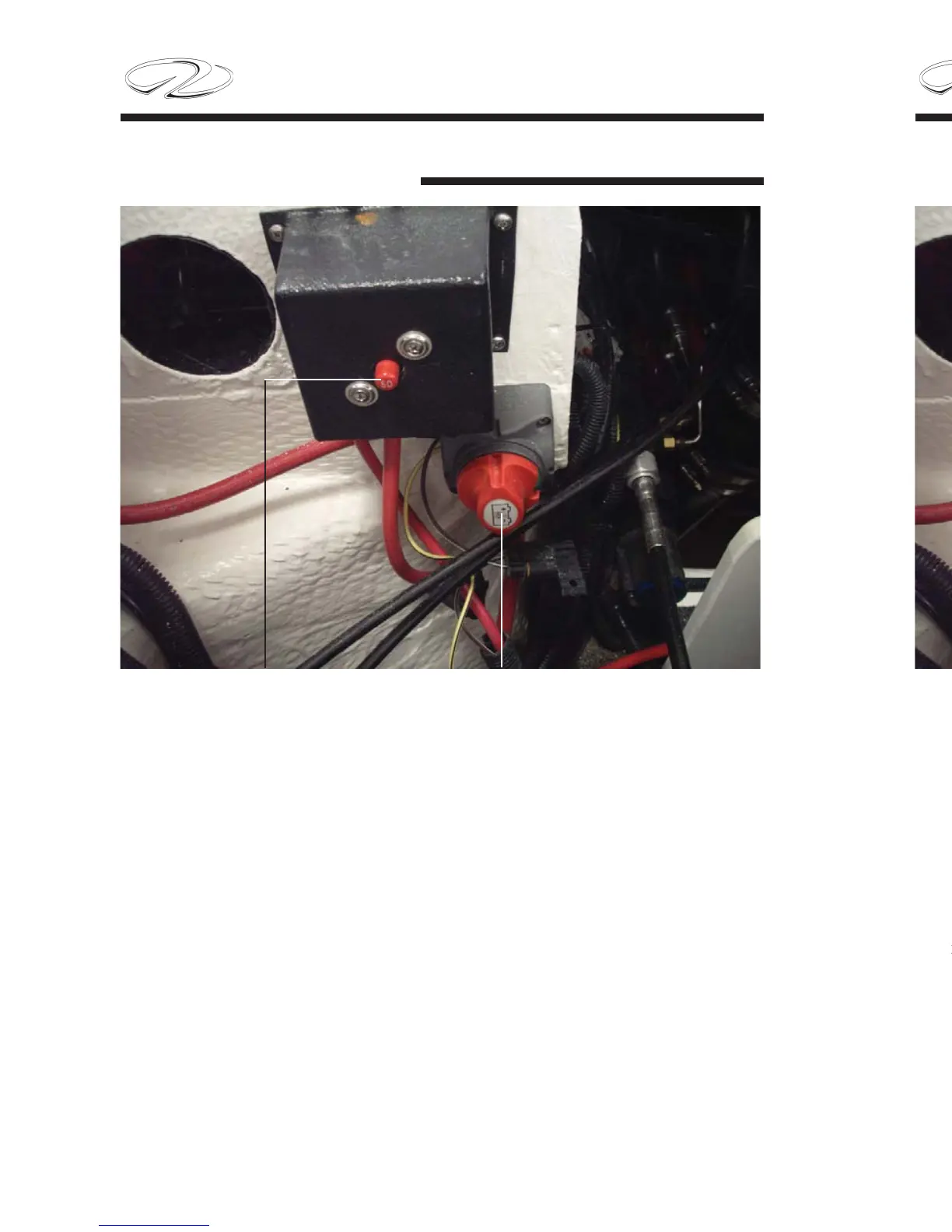

The battery components shown above feature a universal on/off
battery switch with an overcurrent protection device (breaker). The
battery switch is located in the engine compartment. The 50 amp
breaker normally protects the main harness feed wiring (red).
The stereo memory fuse (15 amp) located in the same location protects
the memory circuit and holds the stereo settings for a predetermined
time frame should the stereo lose power due to a dead battery.
The aft bilge pump fuse (10 amp) protects the aft bilge pump and if
the stereo performance package is installed a 30 amp breaker normally
protects it.
Note: Should a breaker “pop” or fuse “blow” determine the
cause of the problem before resetting the breaker or replacing
the fuse. When replacing breakers and fuses use the correct type
and amperage.
