Motor Module Tests

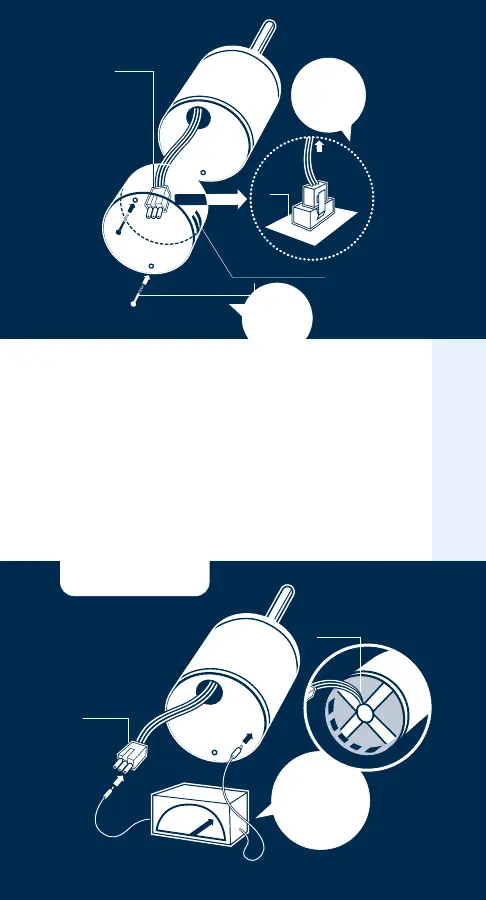

A. The Winding Test (see Figure 5)
Set ohm meter to the highest possible setting
and measure resistance between each of the
three motor leads to the unpainted part of the end
shield (or x-brace on model Eon
®
& 3.0). The motor
passes the test if the meter indicates greater than
100k ohms.
MOTOR CONNECTOR
(3-PIN)
16-PIN & 5-PIN CONNECTORS
FROM
MOTOR
CIRCUIT
BOARD
HEX HEAD SCREWS
Push until latch
seats over ramp
Only remove
Hex Head Bolts
Figure 4
MOTOR CONNECTOR
(3-PIN)
MOTOR OK WHEN
R
>
100k ohm
Figure 5
20
X-BRACE
To Next Page
