32
Motor Module Tests

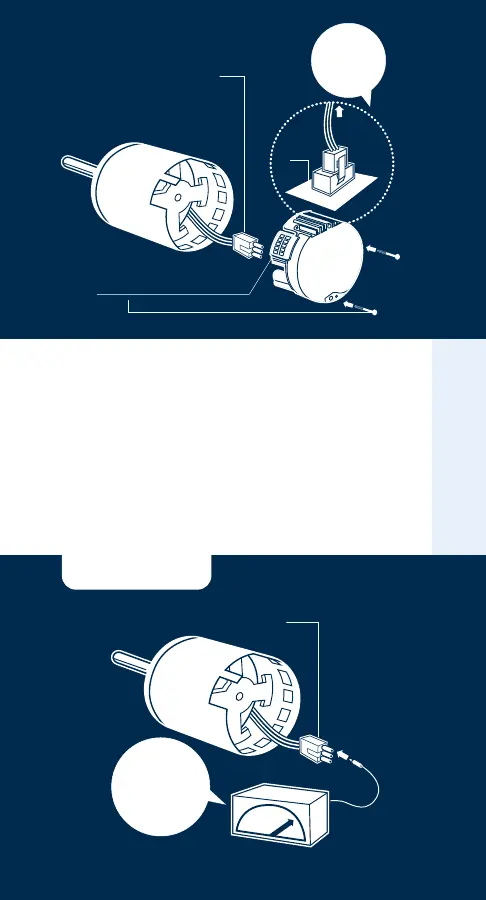

A. The Winding Test (see Figure 12)
Set ohm meter to the highest possible setting and
measure resistance between each of the three
motor leads to the unpainted part of the x-brace.
The motor passes the test if the meter indicates
greater than 100k ohms.
MOTOR CONNECTOR
(3-PIN)
4-PIN & 5-PIN CONNECTORS
FROM
MOTOR
CIRCUIT
BOARD
Push until latch
seats over ramp
HEX HEAD SCREWS
Figure 11
MOTOR CONNECTOR
(3-PIN)
WINDING TEST
MOTOR OK WHEN
R
>
100k ohm
Figure 12
