Regal genteq ECM - Page 46

43

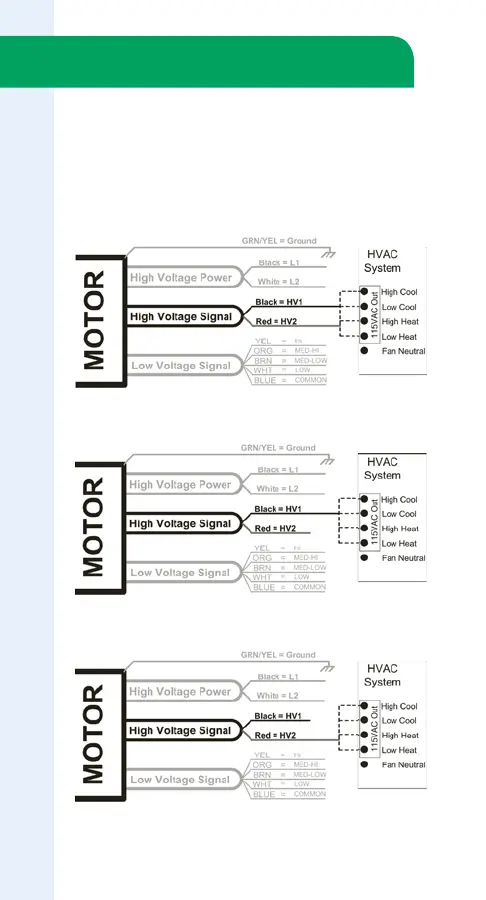

The High Voltage SIGNAL connections are
connected together with all the 115VAC fan outputs
from the HVAC Systems controls to communicate to
the motor when to turn on and at what horse power
to operate at.
IF THE MOTOR IS RUNNING
(continued)
