Pull straps to tighten Latch Closed
Latch Open
Swung Down
English 7
NOTE: Each set of corner hinges is permanently connected by an anchoring
strap. On one side of each set, the strap is adjustable. The adjustable sides
should be mounted to the same side wall assembly.

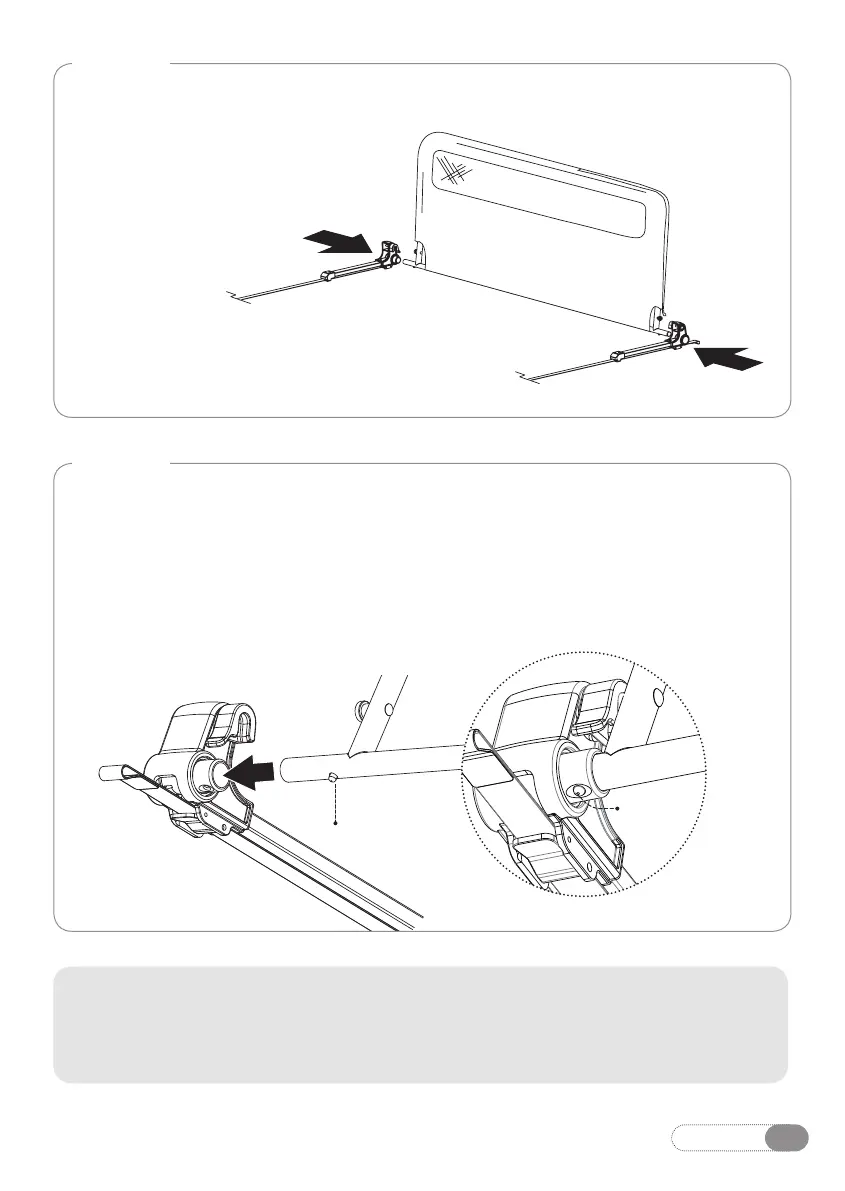

STEP 4
With the wall of the bed rail
completely assembled, you will
now connect the left and right
swing lock and strap assemblies.
STEP 5
Insert one side of the wall frame into one of the leg pieces. Press in the metal
spring button to fully insert the tube into the hole in the plastic hinge.
The spring button should line up with the access hole in the plastic sleeve on
the hinge. The spring button will rebound and lock the tube in place.
Repeat to complete the assembly of the other three corner hinges.
Pull straps to tighten Latch Closed
Latch Open
Swung Down
SPRING BUTTON
SPRING
BUTTON
