Regency F2500 - Minimum Clearance to Combustible Materials

2 | F2500 Wood Stove

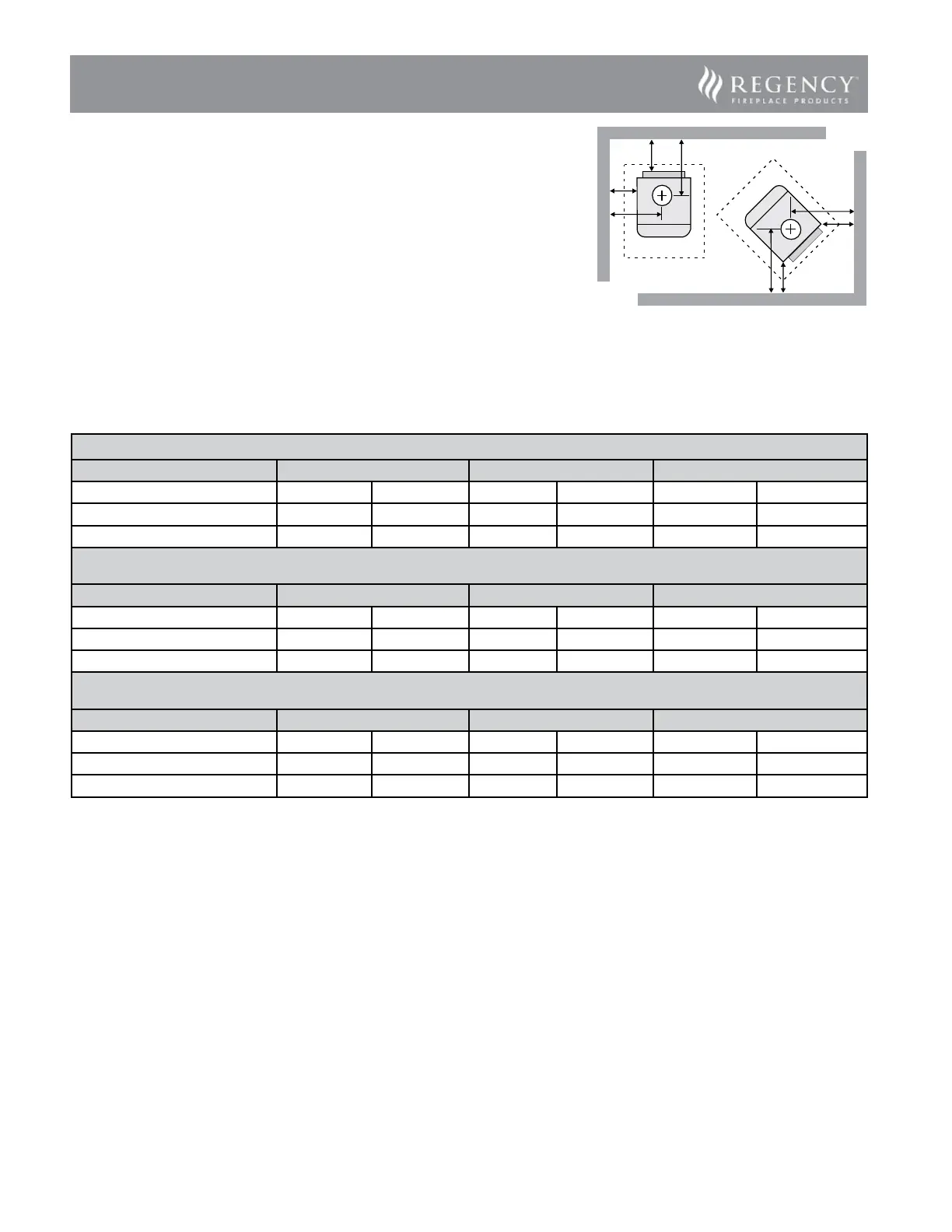

MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Please read the section below carefully as clearances depend on whether the airmate or
the rear heat deector is installed on the stove.
Measurements "From Unit" are from the top plate of the stove to a side wall or to a corner,
and from the rear heat shield to a back wall.
Clearances may only be reduced by means approved by the regulatory authority.
Minimum ceiling height - 83" (2108mm)
A
F
F
C
C
B E
D
NOTE: Be aware that local Codes and Regulations may override some clearances listed in this manual.
Check with your local inspector.
NOTE: This clearance is also required for air space between the appliance and wall/ceiling.
Residential Installation “C” Vent (Single Wall)
Unit From Unit From Corner From Flue Center-Line
A B C D E F
Medium F2500M with Airmate 16" (406mm) 8.5" (216mm) 7" (178mm) 28" (711mm) 15" (381mm) 19" (483mm)
with Rear Deector 16" (406mm) 10.5" (267mm) 7" (178mm) 28" (711mm) 17" (432mm) 19" (483mm)
Residential Close Clearance (To be installed with required pipe components)
When the stove is installed as a close clearance residential unit, a listed double wall connector is required from the stove collar to the ceiling level.
Unit From Unit From Corner From Flue Center-Line
A B C D E F
Medium F2500M with Airmate 15" (381mm) 7" (178mm) 5" (127mm) 27" (686mm) 13.5" (343mm) 17" (432mm)
with Rear Deector 15" (381mm) 9" (229mm) 5" (127mm) 27" (686mm) 15.5" (394mm) 17" (432mm)
Mobile Home Close Clearance (To be installed with required pipe components)
"C" Vent single wall pipe is not approved for Mobile Home installations. (Refer to Mobile Home Instructions.)
Unit From Unit From Corner From Flue Center-Line
A B C D E F
Medium F2500M with Airmate 15" (381mm) 7" (178mm) 5" (127mm) 27" (686mm) 13.5" (343mm) 17" (432mm)
with Rear Deector 15" (381mm) 9" (229mm) 5" (127mm) 27" (686mm) 15.5" (394mm) 17" (432mm)
