Regency F33 - Pedestal & Leg Assembly

Regency
®
F33-3 Freestanding Gas Stove 23
PARTS LIST
Part # Description Part # Description
Bottom Shield & Leg Option
100) 948-216 Logo Plate - Regency
®
102) 904-257 Magnetic Catch - Large
103) * 11" Pedestal Hinge
108) 910-246 Burner ON/OFF Switch
109) 910-140 Fan Hi/Off/Low Switch
110) * Strain Relief for power cord
121) * Access Panel
140) 850-127 Cast Legs - Gold
850-126 Cast Legs - Black
850-128 Cast Legs - Brush Nickel
142) 850-125 Steel Legs
Pedestal Assembly
490-926 Complete Pedestal
100) 948-216 Logo Plate - Regency
®
102) 904-257 Magnetic Catch - Large
103) * 11" Pedestal Hinge
108) 910-246 Burner ON/OFF Switch
109) 910-140 Fan Hi/Off/Low Switch
110) * Strain Relief for power cord
123) * Pedestal Blanking Plate
124) 820-058F Pedestal Cover
125) * Rear Cover Plate
*Not available as a replacement part.

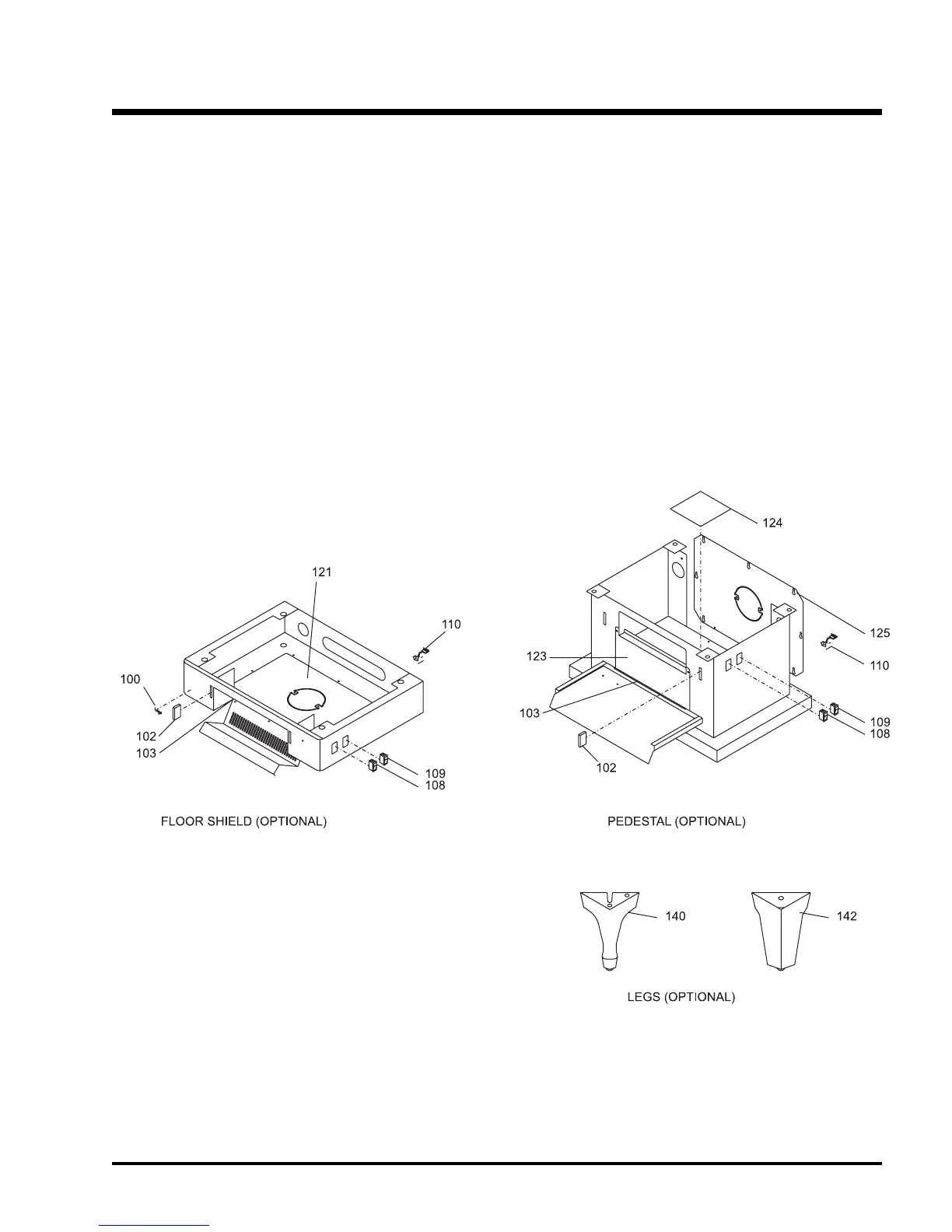

PEDESTAL & LEG ASSEMBLY
