Regency Studio ES105 - Page 17

17
B
A
C
DIMENSION
(mm)
A B C
Studio ES105
56-3/4"
(1141 mm)
20-1/2"
(520 mm)
7-5/8"
(193 mm)
Studio ES135
56-3/4"
(1441 mm)
20-1/2"
(520 mm)
7-5/8"
(193 mm)
Studio ES165
66-1/8"
(1679 mm)
20-1/2"
(520 mm)
7-5/8"
(193 mm)

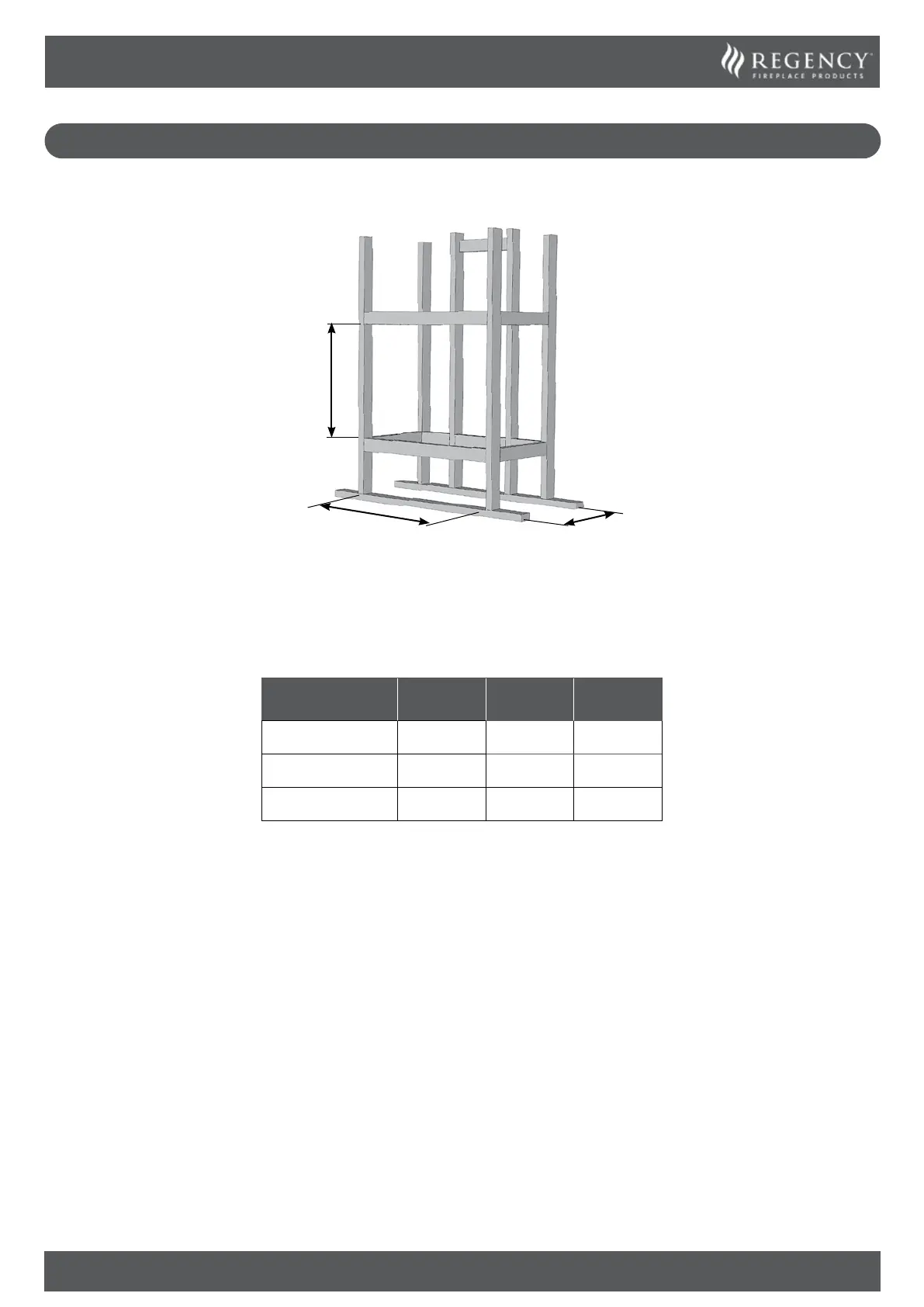

FRAMING INSTALLATION
NOTE: Framing may be constructed of combustible material (I.e. 2 x 4/2 x 6) and does not require steel studs.
NOTE: The appliance must be installed on a flat, solid, continuous surface (e.g. wood, metal, concrete).which must be the full width and depth
of appliance.
This may be the floor, or raised up on a platform to enhance its visual impact.
Note: Measurement (B) does not include height of platform base if raised off the ground.
Example 1/2"(13 mm) thick platform base = 21" (533mm) framing height.
