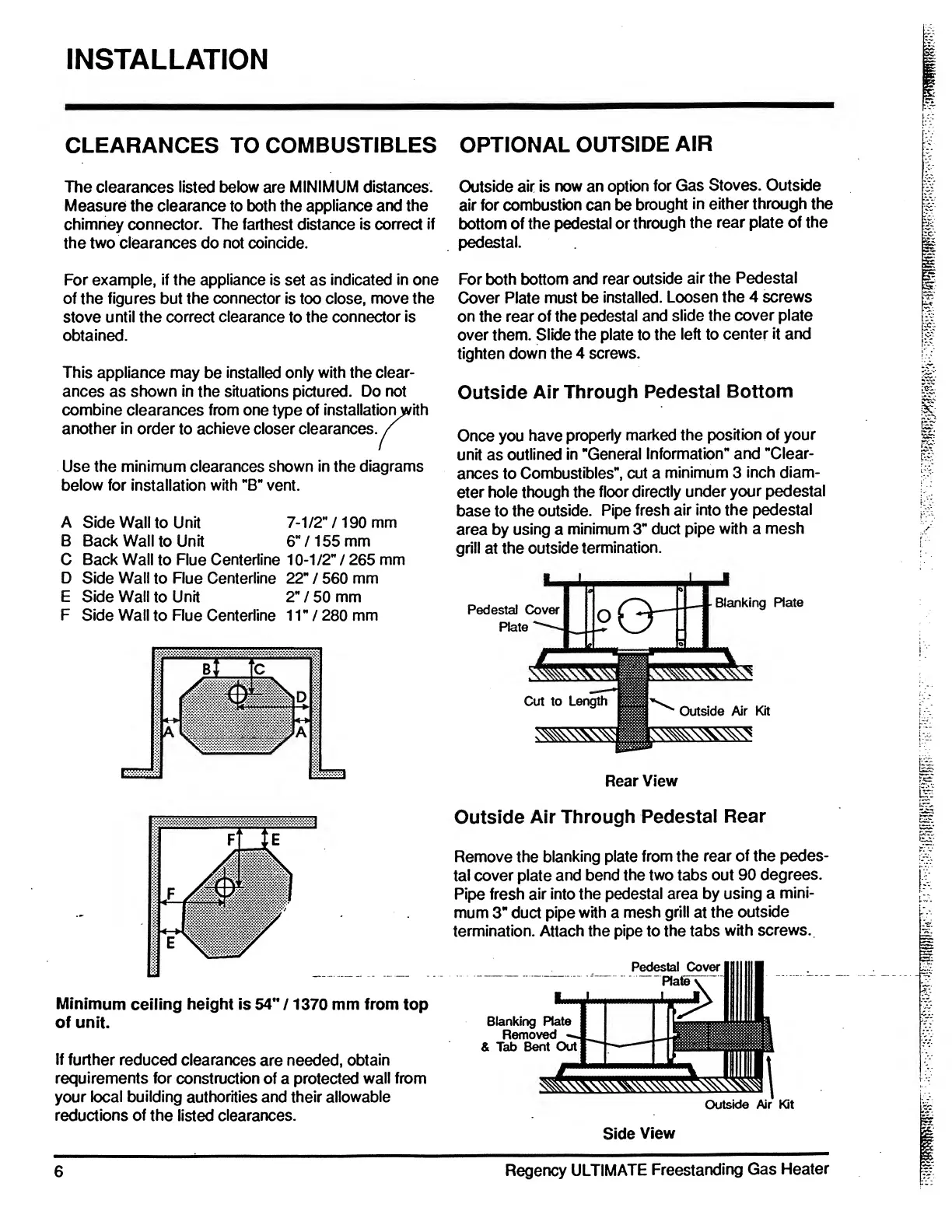

Regency ULTIMATE U41FS-NG - Clearances to Combustibles; Optional Outside Air

INSTALLATION
CLEARANCES TO COMBUSTIBLES OPTIONAL OUTSIDE AIR
The clearances listed below are MINIMUM distances.
Measure the clearance to both the appliance and the
chimney connector. The farthest distance is correct if
the two clearances do not coincide.
Outside air is now an option for Gas Stoves. Outside
air for combustion can be brought in either through the
bottom of the pedestal or through the rear plate of the
pedestal.
For example, if the appliance is set as indicated in one
of the figures but the connector is too close, move the
stove until the correct clearance to the connector is
obtained.
This appliance may be installed only with the clear¬
ances as shown in the situations pictured. Do not
combine clearances from one type of installation with
another in order to achieve closer clearances, f
Use the minimum clearances shown in the diagrams
below for installation with "B" vent.
A Side Wall to Unit 7-1/2" /190 mm
B Back Wall to Unit 6" /155 mm
C Back Wall to Flue Centerline 10-1/2" / 265 mm
D Side Wall to Rue Centerline 22" / 560 mm
E Side Wall to Unit 2" / 50 mm
F Side Wall to Rue Centerline 11"/ 280 mm
For both bottom and rear outside air the Pedestal
Cover Plate must be installed. Loosen the 4 screws
on the rear of the pedestal and slide the cover plate
over them. Slide the plate to the left to center it and
tighten down the 4 screws.
Outside Air Through Pedestal Bottom
Once you have properly marked the position of your
unit as outlined in "General Information" and "Clear¬
ances to Combustibles", cut a minimum 3 inch diam¬
eter hole though the floor directly under your pedestal
base to the outside. Pipe fresh air into the pedestal
area by using a minimum 3" duct pipe with a mesh
grill at the outside termination.
Pedestal Cover
Plate
0-1
j
Blanking Rate
Cuttol^ _
Rear View
Minimum ceiling height is 54" /1370 mm from top
of unit.
If further reduced clearances are needed, obtain
requirements for construction of a protected wall from
your local building authorities and their allowable
reductions of the listed clearances.
Outside Air Through Pedestal Rear
Remove the blanking plate from the rear of the pedes¬
tal cover plate and bend the two tabs out 90 degrees.
Pipe fresh air into the pedestal area by using a mini¬
mum 3" duct pipe with a mesh grill at the outside
termination. Attach the pipe to the tabs with screws.
Side View
i v
m
6
Regency ULTIMATE Freestanding Gas Heater
