Regency ULTIMATE U41FS-NG - Gas Connection; High Elevation; Log Installation

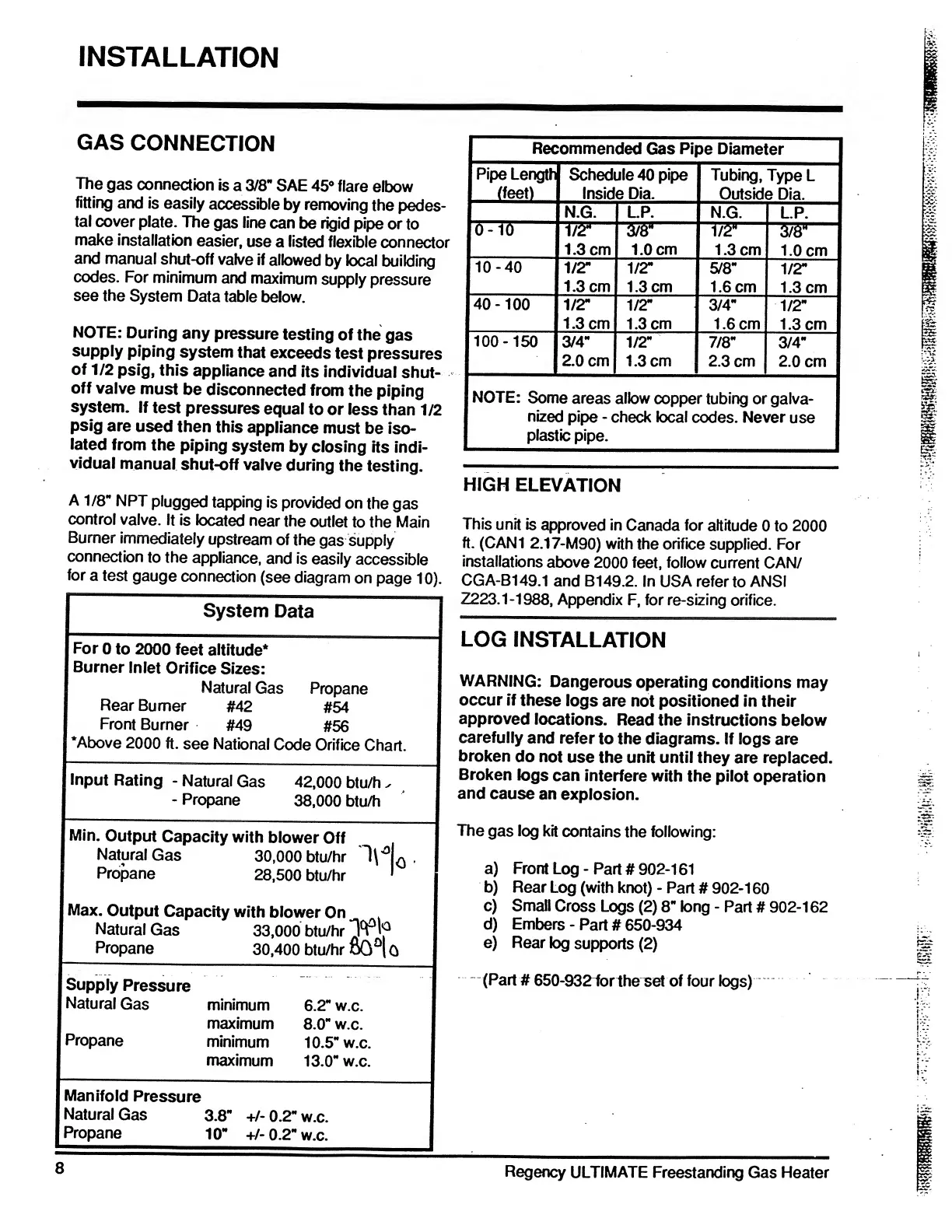

INSTALLATION
GAS CONNECTION
The gas connection is a 3/8" SAE 45° flare elbow
fitting and is easily accessible by removing the pedes¬
tal cover plate. The gas line can be rigid pipe or to
make installation easier, use a listed flexible connector
and manual shut-off valve if allowed by local building
codes. For minimum and maximum supply pressure
see the System Data table below.
NOTE: During any pressure testing of the gas
supply piping system that exceeds test pressures
of 1/2 psig, this appliance and its individual shut¬
off valve must be disconnected from the piping
system. If test pressures equal to or less than 1/2
psig are used then this appliance must be iso¬
lated from the piping system by closing its indi¬
vidual manual shut-off valve during the testing.
A1/8" NPT plugged tapping is provided on the gas
control valve. It is located near the outlet to the Main
Burner immediately upstream of the gas supply
connection to the appliance, and is easily accessible
for a test gauge connection (see diagram on page 10).
I System Data J
For 0 to 2000 feet altitude*
Burner Inlet Orifice Sizes:
Natural Gas Propane
Rear Burner #42 #54
Front Burner #49 #56
‘Above 2000 ft. see National Code Orifice Chart.
Input Rating - Natural Gas 42,000 btu/fw
- Propane 38,000 btu/h
Min. Output Capacity with blower Off
Natural Gas 30,000 btu/hr "l\’°L .
Propane 28,500 btu/hr '
Max. Output Capacity with blower On
Natural Gas 33,000 btu/hr "fa? ^
Propane 30,400 btu/hr oCn o
Supply Pressure
Natural Gas minimum
maximum
Propane minimum
maximum
Manifold Pressure
Natural Gas 3.8" +/- 0.2" w.c.
Propane 10" +/- 0.2" w.c.
1 Recommended Gas Pipe Diameter |
Pipe Length
(feet)
Schedule 40 pipe
Inside Dia.
Tubing, Type L
Outside Dia.
N.G.
L.P.
N.G. L.P.
?TT(5
1/2"
1.3 cm
3/6
1.0 cm
T/2 U “
1.3 cm
”375"
1.0 cm
10-40
1/2"
1.3 cm
1/2"
1.3 cm
5/8"
1.6 cm
1/2"
1.3 cm
40-100
1/2"
1.3 cm
1/2"
1.3 cm
3/4"
1.6 cm
1/2"
1.3 cm
100-150 3/4"
2.0 cm
1/2"
1.3 cm
7/8"
2.3 cm
3/4"
2.0 cm
NOTE: Some areas allow copper tubing or galva¬
nized pipe - check local codes. Never use
plastic pipe.
HIGH ELEVATION
This unit is approved in Canada for altitude 0 to 2000
ft. (CAN1 2.17-M90) with the orifice supplied. For
installations above 2000 feet, follow current CAN/
CGA-B149.1 and B149.2. In USA refer to ANSI
2223.1-1988, Appendix F, for re-sizing orifice.
LOG INSTALLATION
WARNING: Dangerous operating conditions may
occur if these logs are not positioned in their
approved locations. Read the instructions below
carefully and refer to the diagrams. If logs are
broken do not use the unit until they are replaced.
Broken logs can interfere with the pilot operation
and cause an explosion.
The gas log kit contains the following:
a) Front Log - Part # 902-161
b) Rear Log (with knot) - Part # 902-160
c) Small Cross Logs (2) 8" long - Part # 902-162
d) Embers - Part # 650-934
e) Rear log supports (2)
(Part # 650-932 for the set of four logs)
6.2" w.c.
8.0" w.c.
10.5" w.c.
13.0" w.c.
8
