PREPARATION
PREPARATION:
Verify you have all parts before beginning the installation. Check foam insert closely for missing parts. Remove motor
from packing. To avoid damage to finish, assemble motor on soft padded surface or use the original foam inset in
motor box. Do not lay motor housing on its side as this could result in shifting of motor in decorative enclosure
: To avoid possible electrical shock, be sure
electricity is turned off at the main power box before
wiring. All wiring must be in accordance with National
and Local Electrical Codes and the ceiling fan must be
grounded as a precaution against possible electric shock.
1. Locate ceiling joist where fan is to be mounted, being
sure location agrees with the requirements in the mini-
mum clearance section of this guide. Wood joist must be
sound and of adequate size to support 35 lbs. (See Page 1,
Items 3 and 4).
2. If not already present, mount a UL listed outlet box
marked "suitable for fan support" following the instruc-
tions provided with the outlet box. The outlet box must be
able to support a minimum of 35 pounds.
3. Attach hanging bracket to outlet box using screws
provided with the outlet box.
4

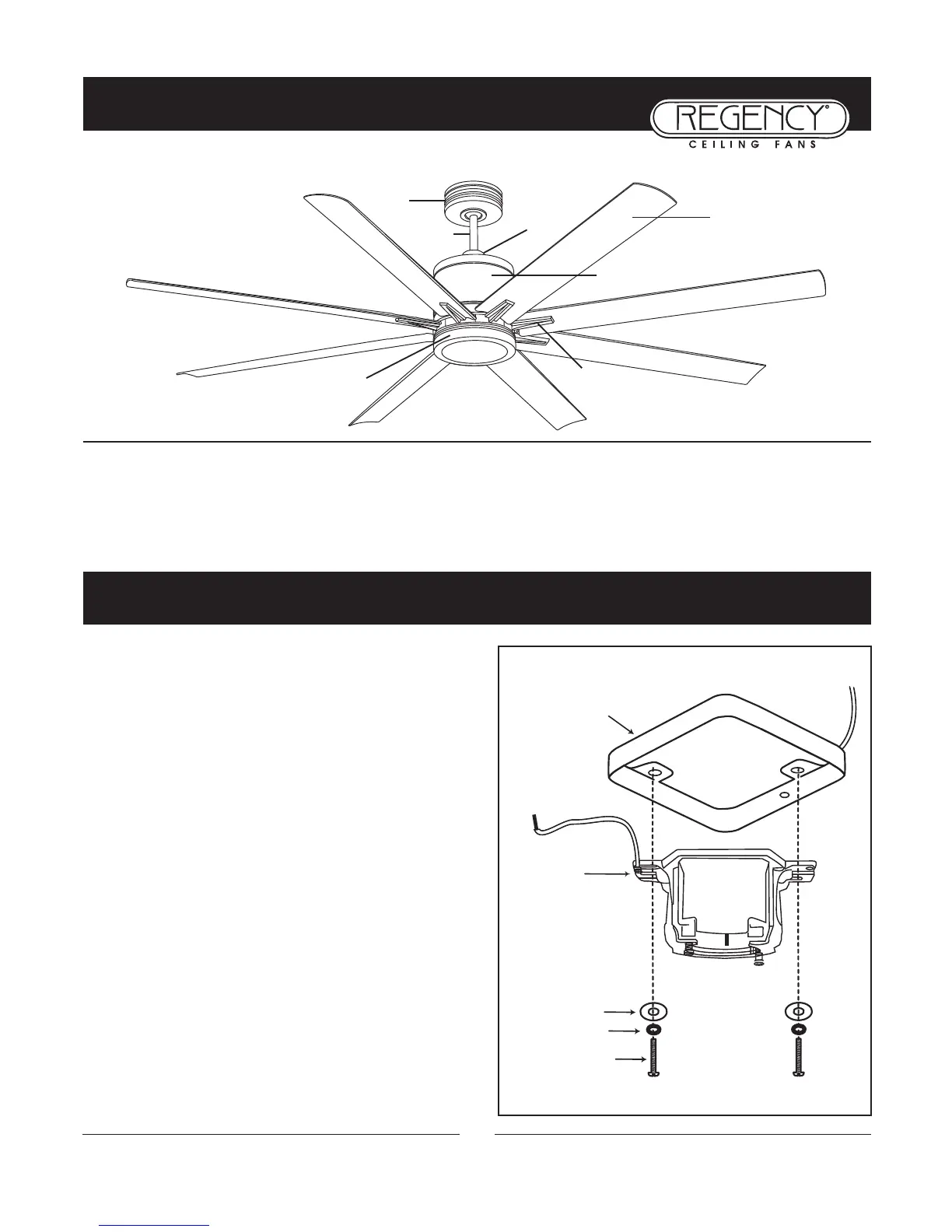

Parts identification on assembled fan
INSTALLING THE HANGING BRACKET
Ceiling Fan
Outlet Box
Hanger
Bracket
Outlet Box
Screw
Flat Washer
Spring Washer
Fig. 1
Blade
Blade
Arm
Collar Cover
Downrod
Canopy
Motor Housing
Light Cover
To Next Page
