6
Fixation

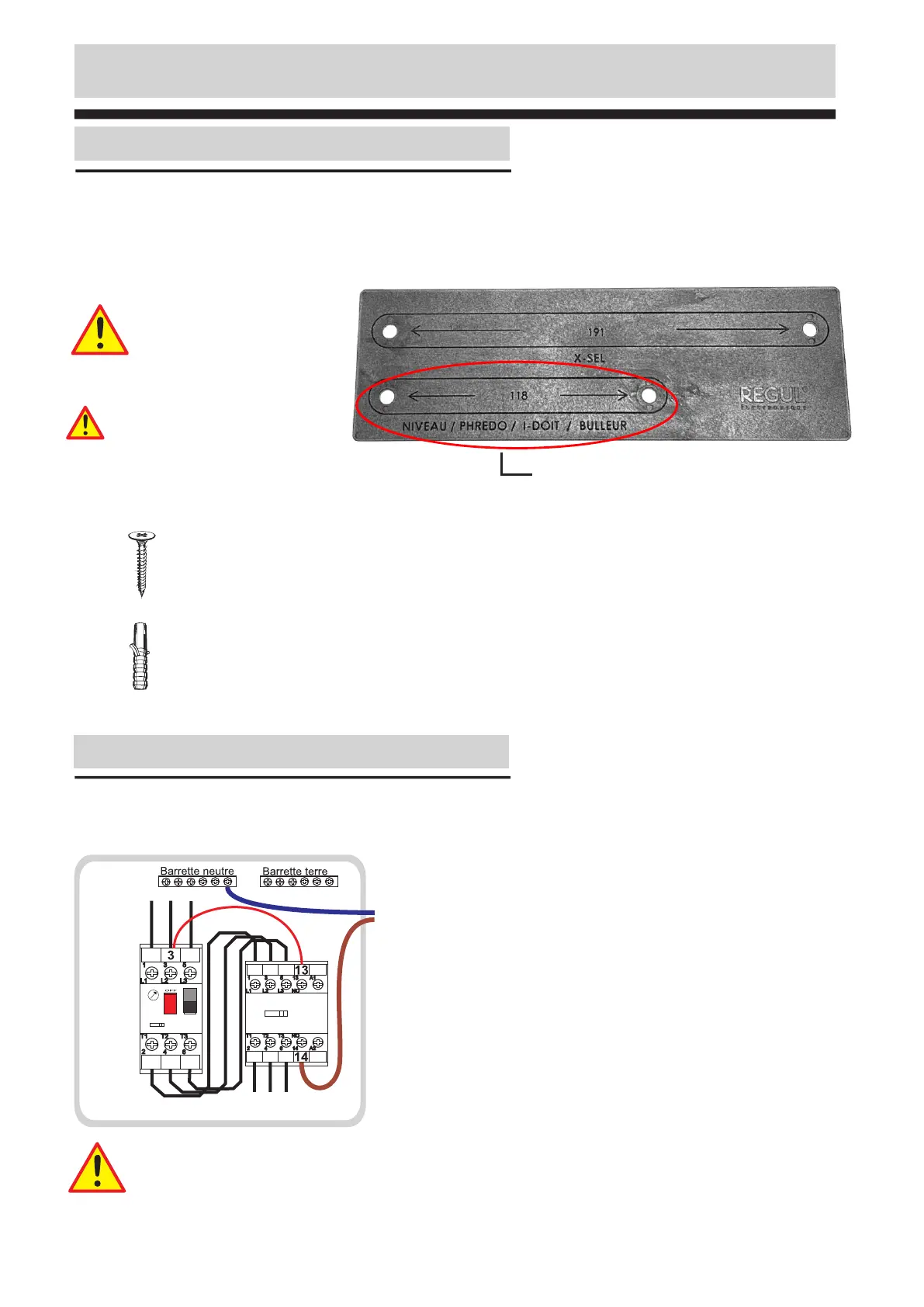

Phredo is supplied with a drilling template to simplify its placement.
In order to maintain the performance and reliability of the device, provide the necessary space
between it and the nearest obstacles.
Installation of the machine
Régul’ Electronique
Device connections
Phredo is enslaved, it must work only the time of filtration.
When connecting control electronics, use flexible cable.
Risk of electric shock
Before working on the device, switch off the
power breaker
1- Add a wire on the input of the circuit breaker and
the contactor input (on the example red wire between
the 3 of the circuit-breaker and the 13 of the
contactor). If a phase already occupies this terminal
13, needless to add a wire, go to the next paragraph.
2- Connect a power cable from the unit to the filter
cabinet (2 x 1.5mm²).
The phase, brown wire, on terminal 14 of the
contactor, auxiliary contact.
Neutral, blue wire, on the neutral bar.
3- Plug the cable into the device on the screw
terminal block, intended for power supply, on the
electronic board (brown on P and blue on N).
Phredo
The device must be fixed in a
properly ventilated room
and protected from any
water splashes.
2x stainless steel screws 4x35mm
2x Dowels diam.6mm
Using the materials provided, which were
chosen for their qualities.
Stainless steel screws for a better hold.
Use the drilling template.
Plaque de gabarit des appareils Régul’
Measure with drilling template
Hole spacing for Phredo
D r i l l i n g t h e c a b i n e t
causes the removal of
the warranty.
Filtration cabinet
Engine
