Installation of the probe

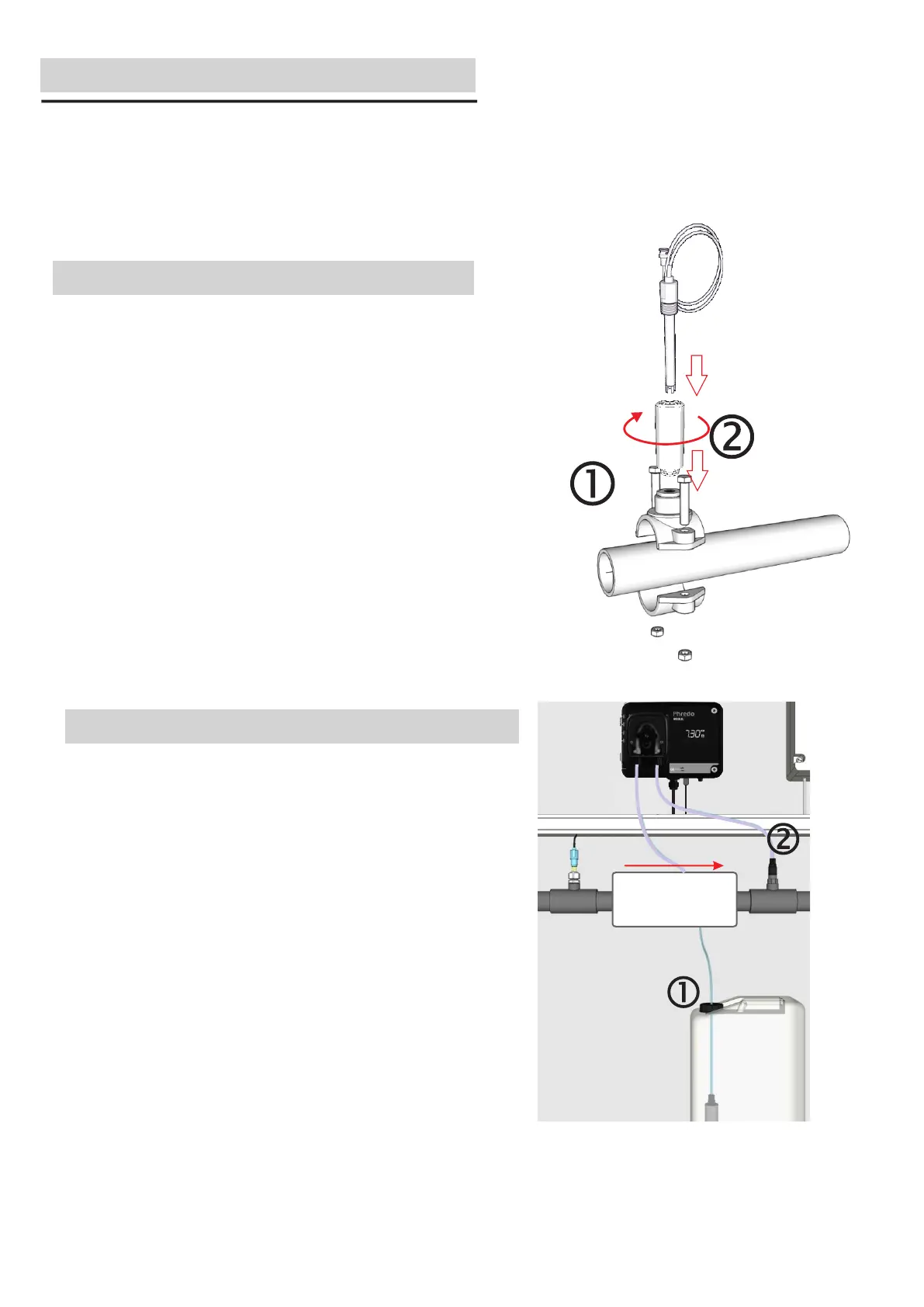

1 - Install the support collar on the piping.
2 - Screw the probe holder.
3 - Screw the probe firmly with your hand and plug
it on the Phredo connector to its BNC plug
(page5)
The probe must be placed between the filter assembly and the electrolysis
cell, heating etc ...
PH and redox probes
The probe must always be positioned vertically
Installation of injection system
1 - Drill the cap of the liquid container inject
(diameter 6mm) pass the crystal tube and
connect the suction ballast which go into
the bottom of the can. Connect the other
end to the part left of the Phredo pump.
2 - Screw the injector on the reduction 1/2 "-
3/8 "Connect the opaque tube to it and the
other end on the right side of the pump.
mité sur la partie droite de la pompe.
pH- container
Electrolyzer
Heating...
Probe
Injection
Flow direction
