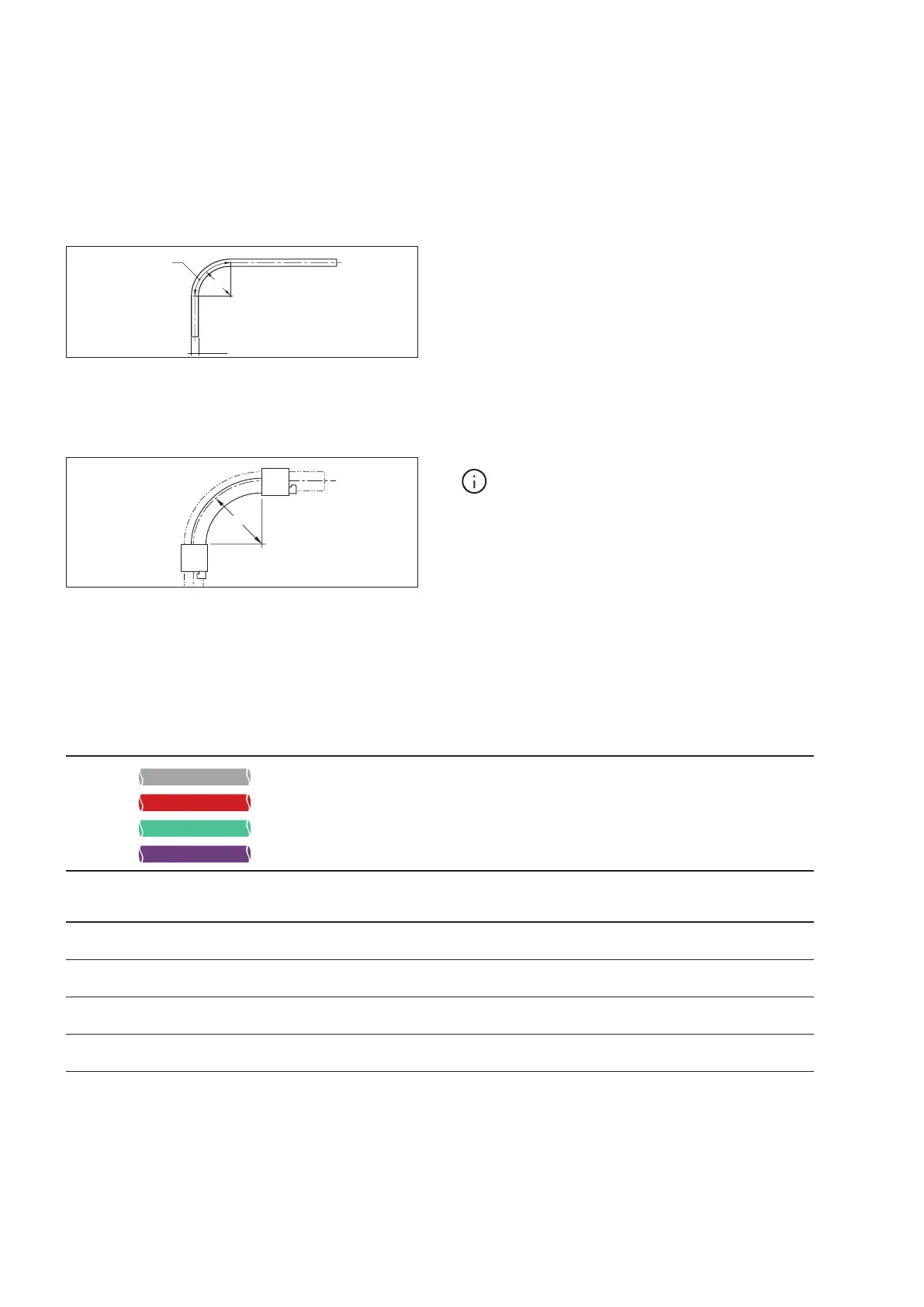

Rehau Edge User Manual

6.3
Pipe bending
Bending EDGE
TM
Pipes
Fig. 6-2 Pipe bend bracket for plumbing 90 degrees, for size 16– 32
and pipe bend bracket for plumbing/heating 5 x d 90
degree for size 32
R Bending radius
Tab. 6-
1 Minimum bending radii of EDGE
TM
PE-Xa pipes
Fig. 6-1 Pipe bend
R Bending radius
B Arc
d Pipe diameter
EDGE
TM
pipes can be bent by hand and installed with or
without a bend bracket depending on the desired radius as
per table 6-1.
Minimum bending radius
• The minimum bending radius is five times the
pipe diameter.
• When bending with a spiral spring, the minimum
bending radius is three times the pipe diameter.
• The minimum bending radius is measured with respect
to the centre of the pipe.
• After bending, ensure that there are no kinks, wrinkles
or bulges.
Only cold bending of EDGE
TM
pipes is allowed.
Using pipe bend brackets for plumbing/
heating (90°)
5 x d
Bent by hand (90°)
8 x d
Pipe sizes Bending radius
R [mm]
Bending radius
R [mm]
16 80 128
20 100 160
25 125 200
32 160 256
B
R
d
R
EDGE Silver
EDGE Green
EDGE Red
EDGE Lilac
16
