04 Installation tools
Before using tools, read and observe the
information in the operating instructions
completely. If these operating instructions are
no longer present with the tool or are no longer
available, order a copy or download them from the
internet. Do not use damaged tools or partially
functioning tools; send these for repair to your
local distribution network. Tool servicing needs
to be carried out at the specified time to ensure
reliable tool performance.
Operating instructions can be downloaded online
from www.rehau.com.au or www.rehau.co.nz.
4.1 Compression sleeve tools: RAUTOOL
For EDGE
TM
system
4.1.1
RAUTOOL L1
4.1.3
RAUTOOL A-light2
4.1.2 EDGE
TM
Jaws

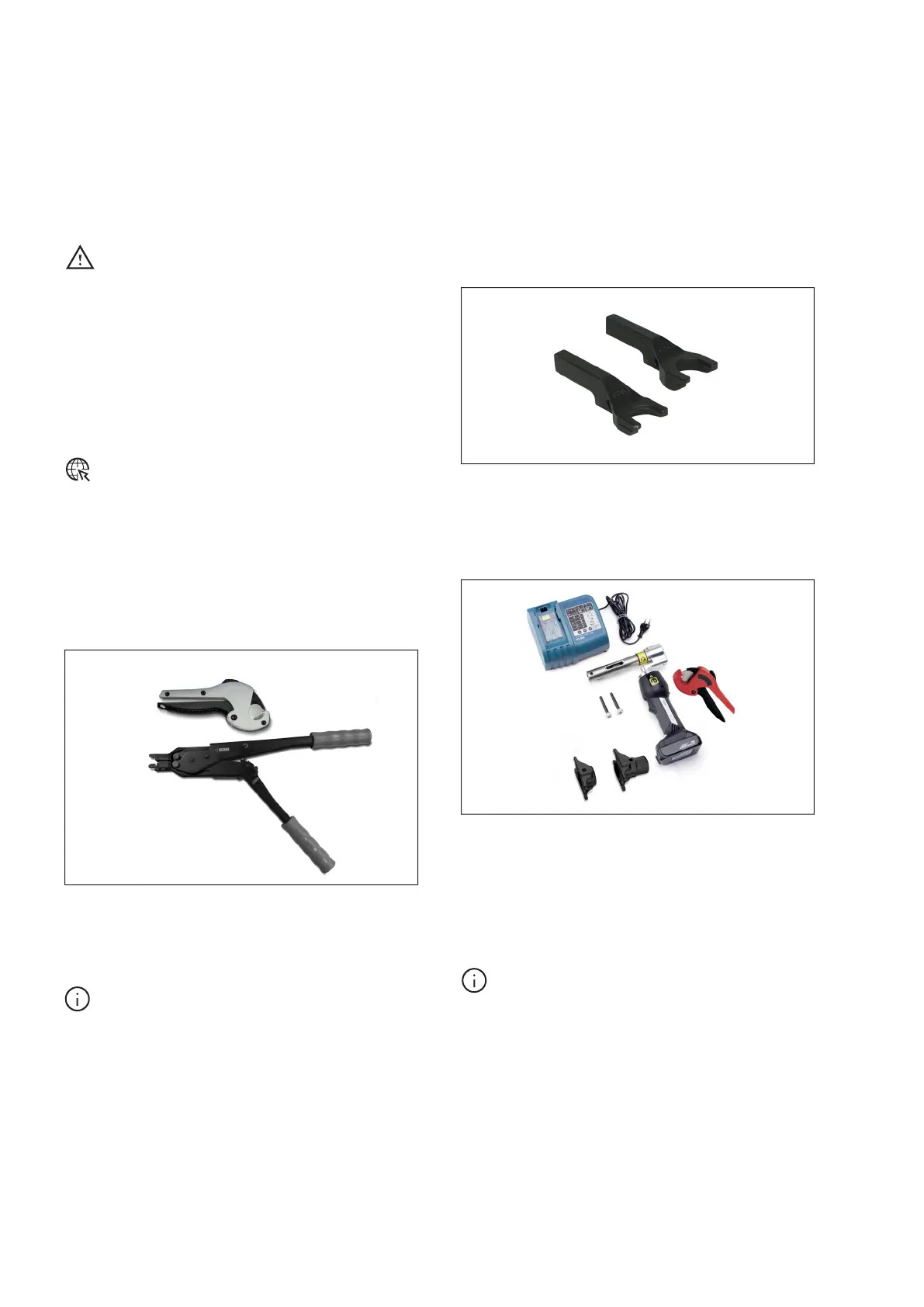

Fig. 4-1 RAUTOOL L1
- Manual tool
- Able to compress sizes 16-32mm
When using L1 tool, use only compression jaws that
are specifically approved for EDGE
TM
Sleeves and
Fittings (black colour). Refer to Figure 4-2.
Fig. 4-3 RAUTOOL A-light2
- Battery-operated hydraulic tool
- Able to compress sizes 16-32mm
- Drive with battery-operated hydraulic unit
located directly at the tool cylinder
When using A-Light2 tool, use only compression
jaws that are specifically approved for EDGE
TM
Sleeves and Fittings (black colour).
Fig. 4-2 EDGE
TM
jaws suitable for RAUTOOL L1
4.1.4
Rothenberger Romax Axial
EDGE
TM
connections can be made using the Rothenberger
Romax Axial tool in combination with EDGE
TM
jaws A-
light2 in black colour.
