6.6.3 Fitting cover
Clipping over the
fitting is not possible with EDGE Fittings.

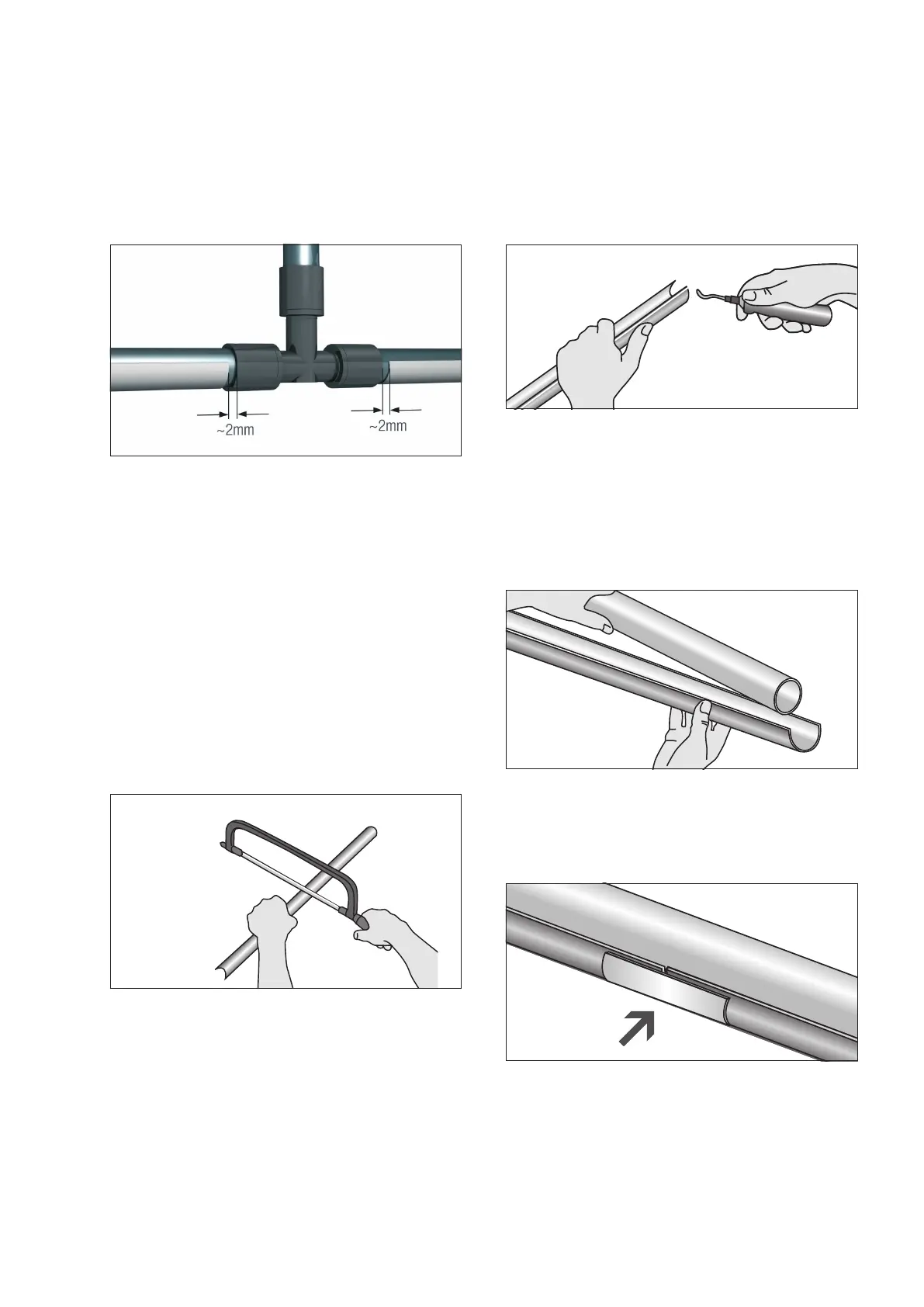

Fig. 6-7 Do not clip over EDGE Fittings
6.6.4 Assembly of the pipe support channels
Reduced retaining force of the pipe support channel can
cause greater thermal expansion of the pipe.
Do not lessen the retaining force of the pipe support
channels by storing or assembling them improperly.
1. Cut o the pipe support channel with a metal s aw (see
Fig. 7-11). Maintain a safe distance between your holding
hand and the cutting tool. Saw pipe support channels from
the rounded rear side, not the open side so that they are
not bent open at their bordered ends.
3. Deburr the ends of the pipe support channel.
4. Clip the pipe support channel onto the pipe
(by hand or using a pliers or pipe wrench with
plastic jaws).
Do not overlap the ends of pipe support channels.
Fig. 6-9 Deburring of pipe support channel
Fig. 6-
8 Cutting off pipe support channel
2. If the pipe support channel has been bent inwards or
outwards when it was cut to length, bend the pipe support
channel back to its original shape.
5. To join support channels together, use cut-os clipped
over both ends.
Fig. 6-
10 Clipping in pipe support channel
Fig.6-11 Joining two pipe support channels
Even short cut-o
s of the pipe support channel can be
used for clipping over joints, ensuring an almost waste-free
installation.
