RELACART UR-222D - Receiver Rear Panel Functions; Unbalanced Audio Output; Balanced Audio Output

P9
P10

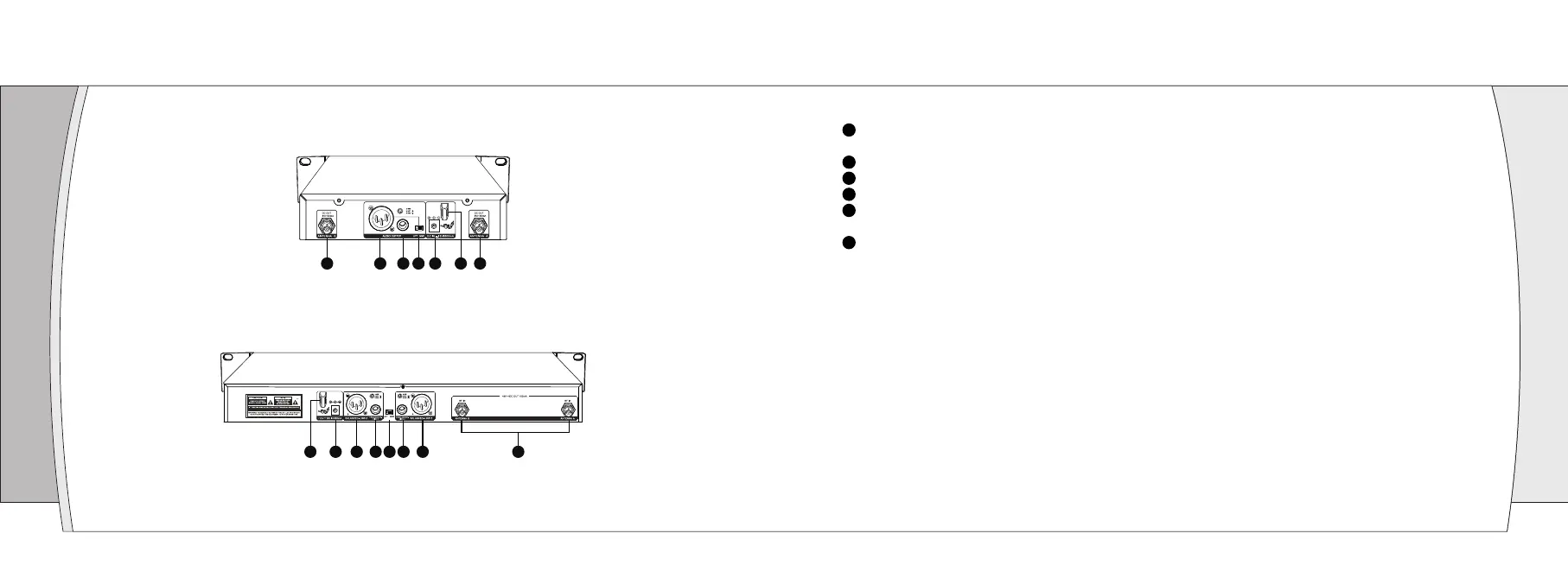

Receiver r Panel Function IntroductionRea
06
1
(UR-222S)
1
(UR-222D)
123456
32 6 5 4 5 6
RF antenna diversity BNC input connector: suitable for connection of antenna A and antenna B, and
supports DC 8V/150mA power output.
Anti-pull device: used to fix the connecting cable of the external power adapter.
DC IN socket: connect to external power adapter.
LIFT/GND switch: control XLR pin 1 whether is contact GND.
Unbalanced audio output port (dual channel independent): The 6.3mm port can be connected to an
aux- level input of a mixer or power amplifier.
Balanced audio output port (dual channel independent): The XLR port can be used to connect a
standard 2 conductor shielded cable the receiver output to a balanced microphone level input on a
mixer.
