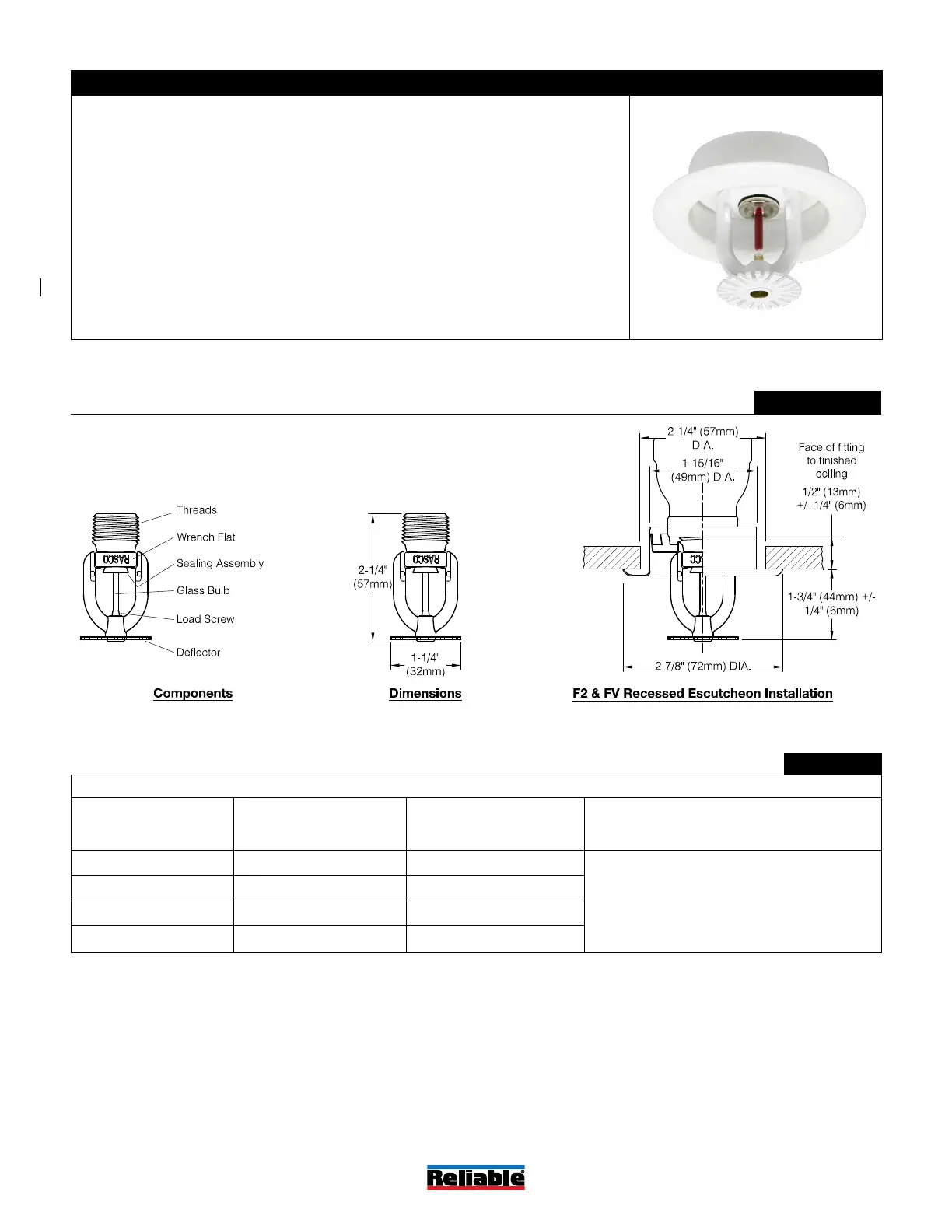

Model F1Res30 Residential Pendent Sprinkler Components and Installation Dimensions Figure 1
* Model FV escutcheons are not for use in positively pressurized ceiling plenums.
Technical Specifications
Style: Pendent and Recessed Pendent
Threads: 1/2” NPT or ISO7-1R1/2
Nominal K-Factor: 3.0 (43 metric)
Max. Working Pressure: 175 psi (12 bar)
Material Specifications
Thermal Sensor: 3 mm glass bulb
Sprinkler Frame: Brass Alloy
Button: Copper Alloy
Sealing Assembly: Nickel Alloy with PTFE
Load Screw: Bronze Alloy
Deflector: Bronze Alloy
Finishes
(See Table N)
Sensitivity
Fast-response
Temperature Ratings
155°F (68°C)
175°F (79°C)
Recessed Escutcheons
F2 Recessed
FV Recessed*
Sprinkler Wrenches
Model W2
Model W4 (Recessed)
Model F1Res30 Residential Pendent Sprinkler & Models F2 & FV Escutcheon SIN R3511
Bulletin 135
February 2020
Page 2 of 15
www.reliablesprinkler.com
Minimum Flow and Residual Pressure in Wet Pipe Systems
(1)
Maximum
Coverage Area
(2)
ft. x ft.(m x m)
Flow
gpm (l/min)
Pressure
psi (bar)
Deflector to
Ceiling Distance
12 x 12 (3.7 x 3.7) 8 (30) 7.0 (0.48)
1 to 4 inches
(25 to 100 mm)
14 x 14 (4.3 x 4.3) 10 (38) 11.0 (0.76)
15 x 15 (4.6 x 4.6) 12 (45) 16.0 (1.1)
16 x 16 (4.9 x 4.9) 13 (49) 18.8 (1.3)
Table B
Model F1Res30 Residential Pendent Sprinkler Hydraulic Design Criteria
Notes:
1. For NFPA 13 installations the flow per sprinkler must be the greater of: (1) the flow listed in the table above or (2) the flow required to
achieve a minimum design density of 0.1 gpm/sq ft over the design area of the sprinkler.
2. For coverage area dimensions less than those listed above, use the minimum required flow for the next larger max. coverage area listed.
