Reliabl�
Ceiling
3
/
16
" (5 mm)
3‑
5
/
16
" (84 mm) Dia.
2‑
5
/
16
" (58 mm)
Dia.
Model RFC cover plate
Deector (extended)
Pin (extended)
Deector (retracted)
Fusible link
Tower
1‑
3
/
4
" (44 mm) +/−
1
/
4
" (6 mm)
Nominal face of tting to ceiling
Cup
Body
Threads
Bottom View
Notes:
1. For NFPA 13 installations the ow per sprinkler must be the greater of: (1) the ow listed in Table B above and (2) the ow required to achieve a
minimum design density of 0.1 gpm/sq ft over the design area of the sprinkler.
2. For coverage area dimensions less than those listed above, use the minimum required ow for the next larger max. coverage area listed.
Minimum Flow and Residual Pressure
Max. Coverage Area
ft. x ft.
(m x m)
Flow
gpm
(l/min)
Pressure
psi
(bar)
12 x 12
(3.6 x 3.6)
9
(34)
9.0
(0.62)
14 x 14
(4.3 x 4.3)
10
(38)
11.0
(0.76)
Table B
Model RFC30 Sprinkler Hydraulic Design Criteria

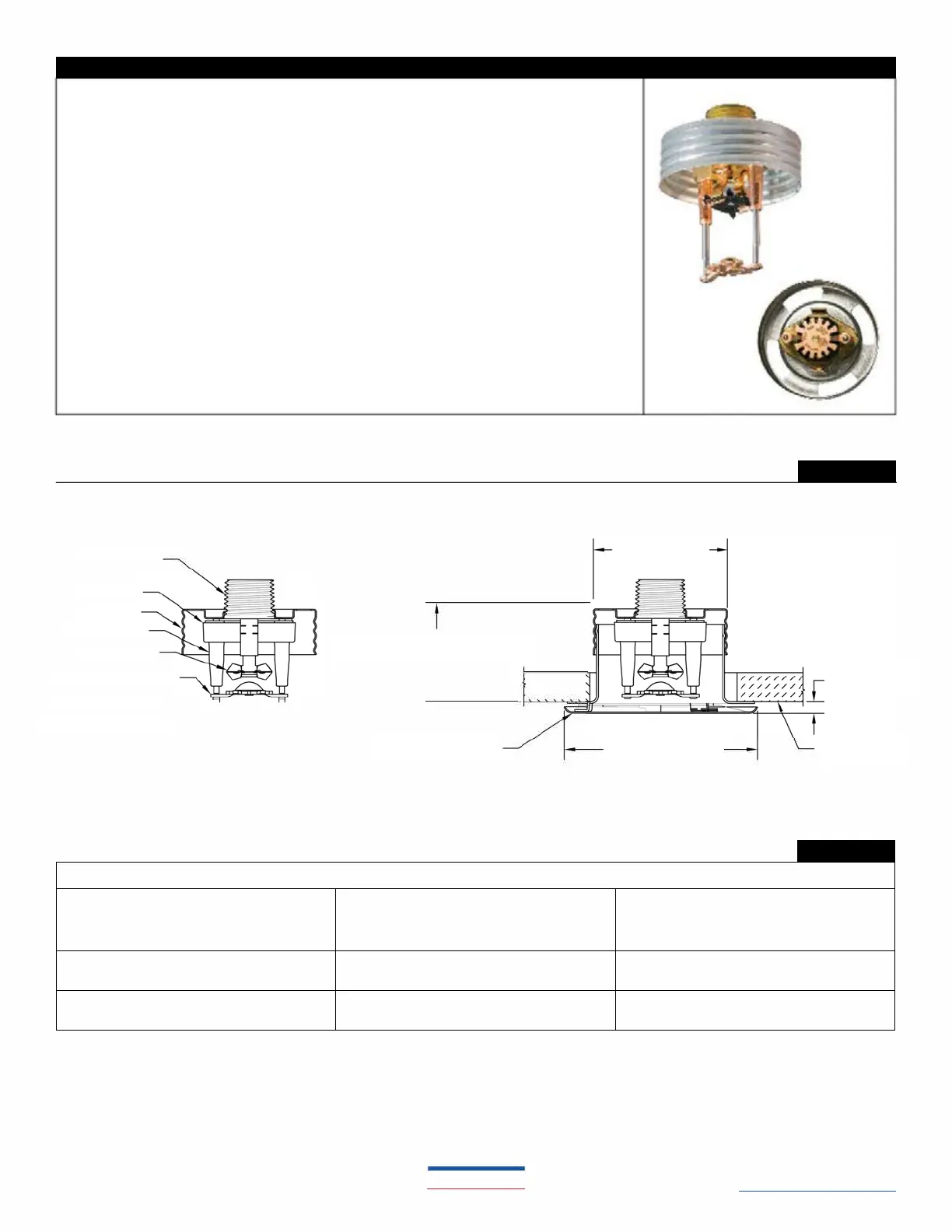

Figure 1
Model RFC30 Sprinkler Components and Dimensions
Cover Plate Finishes
(See Table H)
Sensitivity
Fast‑response
Temperature Rating
165 °F (74 °C) sprinkler
135 °F (57 °C) cover plate
Cover Plate
Model RFC cover plate
Sprinkler Wrench
Model FC
Listings and Approvals
cULus Listed
Technical Specifications
Style: Flat Concealed Pendent
Threads: 1/2" NPT or ISO 7‑1 R 1/2
Nominal K-Factor: 3.0 (43.2 metric)
Max. Working Pressure: 175 psi (12 bar)
Min. Spacing: 8 ft (2.4 m)
Material Specifications
Thermal Sensor: Nickel Alloy Solder Link
Sprinkler Body: Brass Alloy
Levers: Bronze Alloy
Yoke: Brass Alloy
Sealing Assembly: Nickel Alloy with PTFE
Load Screw: Bronze Alloy
Towers: Copper Alloy
Pins: Stainless Steel
Deflector: Bronze Alloy
Cup: Steel
Model RFC30 Residential Sprinkler SIN RA0611
Page 2 of 7
www.reliablesprinkler.com
Bulletin 006 Rev. K
February 2017
