Reliable RFC Series - Model RFC49 Residential Sprinkler; Technical and Material Specifications; Components and Dimensions; Hydraulic Design Criteria

Ceiling
3
/
16
" (5 mm)
3‑
5
/
16
" (84 mm) Dia.
2‑
5
/
16
" (58 mm)
Dia.
Model RFC cover plate
Deector (extended)
Pin (extended)
Deector (retracted)
Fusible link
Tower
1‑
3
/
4
" (44 mm) +/−
1
/
4
" (6 mm)
Nominal face of tting to ceiling
Cup
Body
Threads
Bottom View
Page 4 of 7
www.reliablesprinkler.com
Bulletin 006 Rev. K
February 2017
Notes:
1. For NFPA 13 installations the ow per sprinkler must be the greater of: (1) the ow listed in Table D above and (2) the ow required to achieve a
minimum design density of 0.1 gpm/sq ft over the design area of the sprinkler.
2. For coverage area dimensions less than those listed above, use the minimum required ow for the next larger max. coverage area listed.
Minimum Flow and Residual Pressure
Max. Coverage Area
ft. x ft.
(m x m)
Flow
gpm
(l/min)
Pressure
psi
(bar)
16 x 16
(4.9 x 4.9)
13
(49.0)
7.0
(0.48)
18 x 18
(5.5 x 5.5)
17
(64.3)
12.0
(0.83)
20 x 20
(6.1 x 6.1)
20
(75.7)
16.7
(1.15)
Table D
Model RFC49 Sprinkler Hydraulic Design Criteria

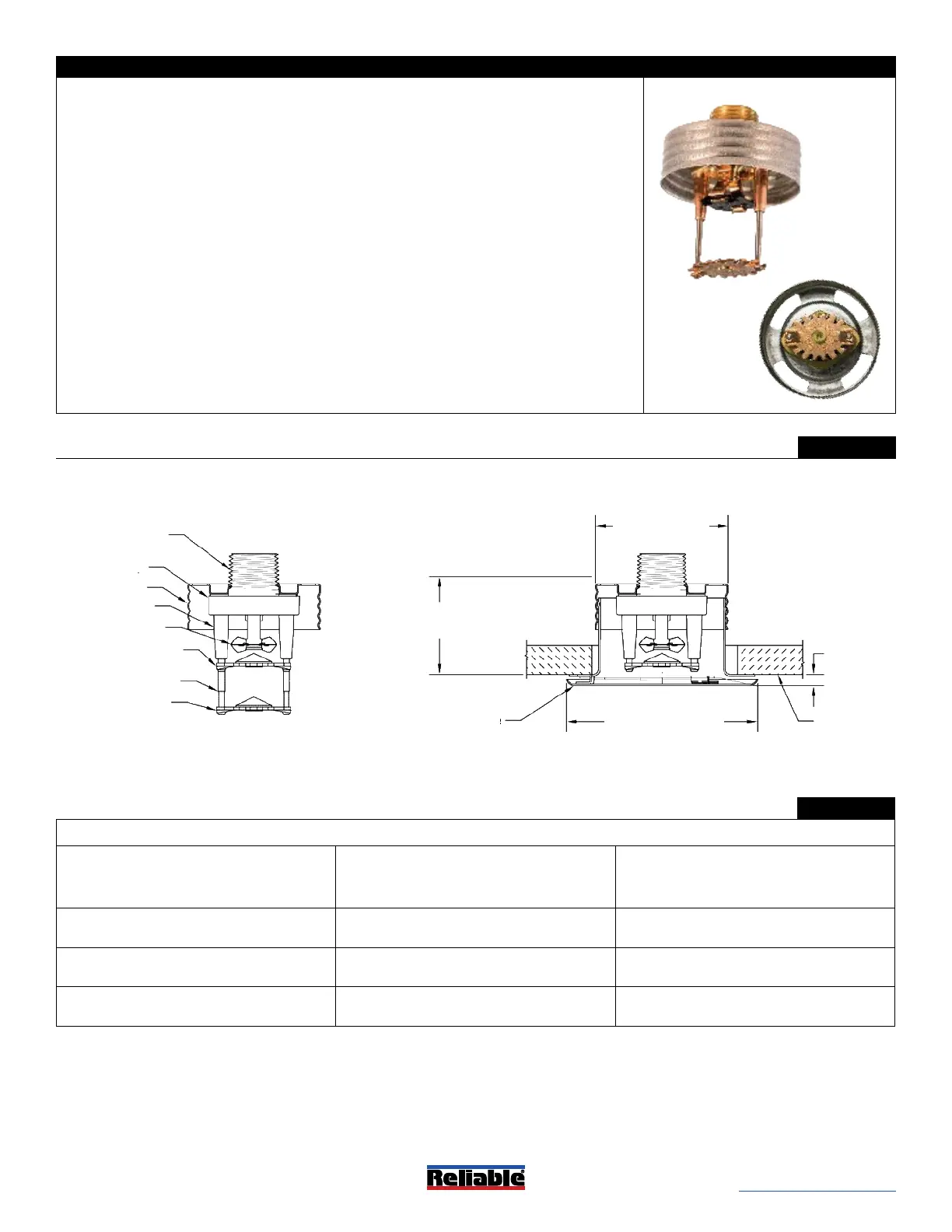

Figure 3
Model RFC49 Sprinkler Components and Dimensions
Cover Plate Finishes
(See Table H)
Sensitivity
Fast‑response
Temperature Rating
165 °F (74 °C) sprinkler
135 °F (57 °C) cover plate
Cover Plate
Model RFC cover plate
Sprinkler Wrench
Model FC
Listings and Approvals
cULus Listed
Technical Specifications
Style: Flat Concealed Pendent
Threads: 1/2" NPT or ISO 7‑1 R 1/2
Nominal K-Factor: 4.9 (70.6 metric)
Max. Working Pressure: 175 psi (12 bar)
Min. Spacing: 8 ft (2.4 m)
Material Specifications
Thermal Sensor: Nickel Alloy Solder Link
Sprinkler Body: Brass Alloy
Levers: Bronze Alloy
Yoke: Brass Alloy
Sealing Assembly: Nickel Alloy with PTFE
Load Screw: Bronze Alloy
Towers: Copper Alloy
Pins: Stainless Steel
Deflector: Bronze Alloy
Cup: Steel
Model RFC49 Residential Sprinkler SIN RA0616
