Page 45

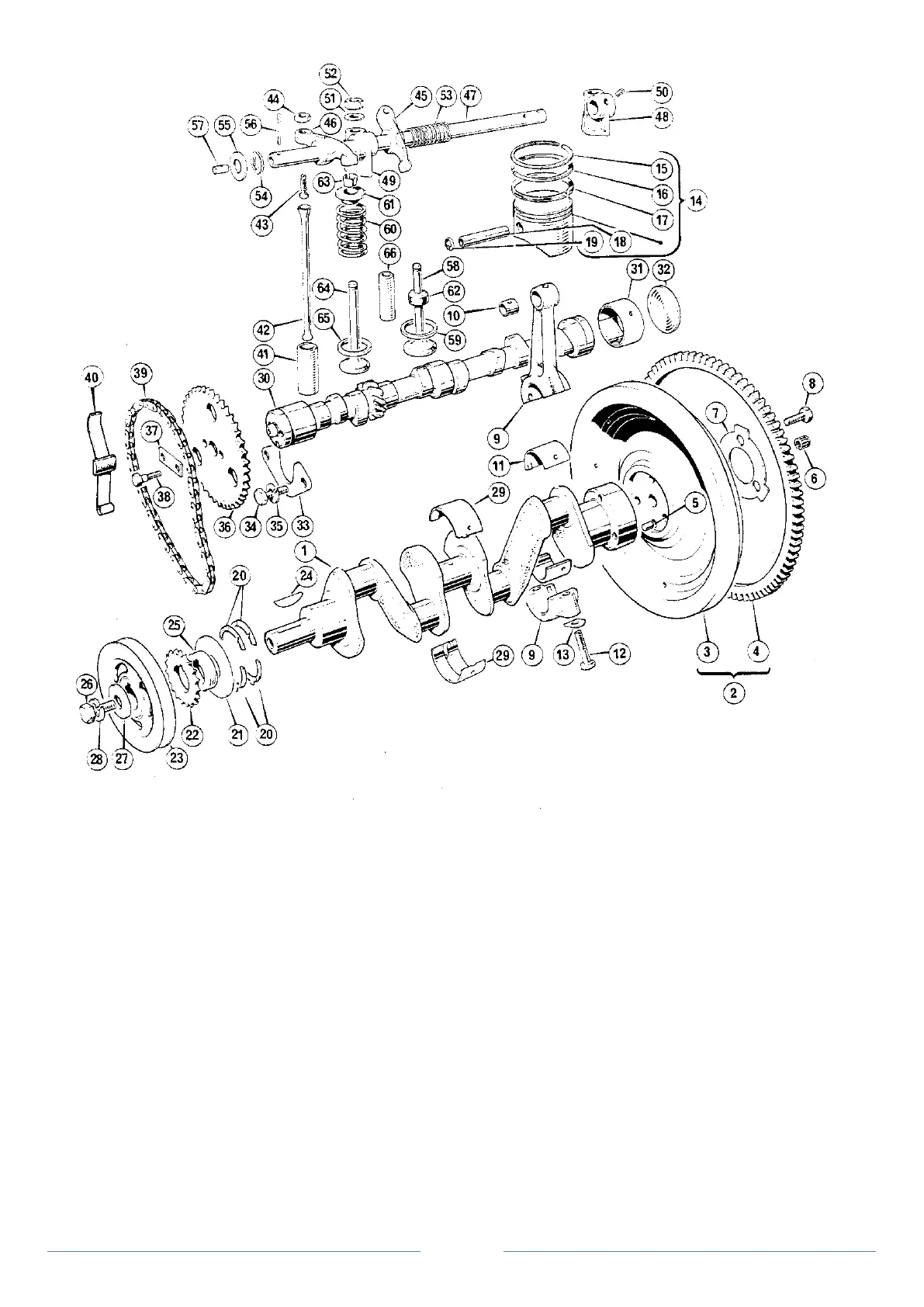

Figure 17 Engine, crankshaft and
camshaft - exploded view
1. Crankshaft 23. Pulley 45. Rocker LH
2. Flywheel assembly 24. Key 46. Rocker RH
3. Flywheel 25. Spacer 47. Rocker shaft
4. Flywheel ring gear 26. Bolt 48. Bracket
5. Dowel 27. Washer 49. Bracket
6. Spigot bearing 28. Lock washer 50. Screw
7. Flywheel tab washer 29. Main bearing shell 51. Washer
8. Set screw 30. Camshaft 52. Nut
9. Connecting rod 31. Camshaft bearing 53. Rocker shaft spring
10. Small end bearing 32. Core plug 54. Rocker shaft end spring
11. Big end bearing shell 33. Plate 55. Washer
12. Bolt 34. Bolt 56. Split pin
13. Plate 35. Lock washer 57. Plug
14. Piston assembly 36. Sprocket 58. Inlet valve
15. Compression ring 37. Plate 59. Valve seat
16. Taper ring 38. Screw 60. Valve spring
17. Oil Scraper ring 39. Timing chain 61. Valve spring cup
18. Gudgeon pin 40. Timing chain tensioner 62. Valve stem seal
19. Circlip 41. Cam follower 63. Valve cotter
20. Crankshaft thrust washer 42. Push rod 64. Exhaust valve
21. Crankshaft thrust washer 43. Screw 65. Valve seat
22. Sprocket 44. Lock nut 66. Valve guide
