Reliant Kitten Saloon - Page 78

Page 78

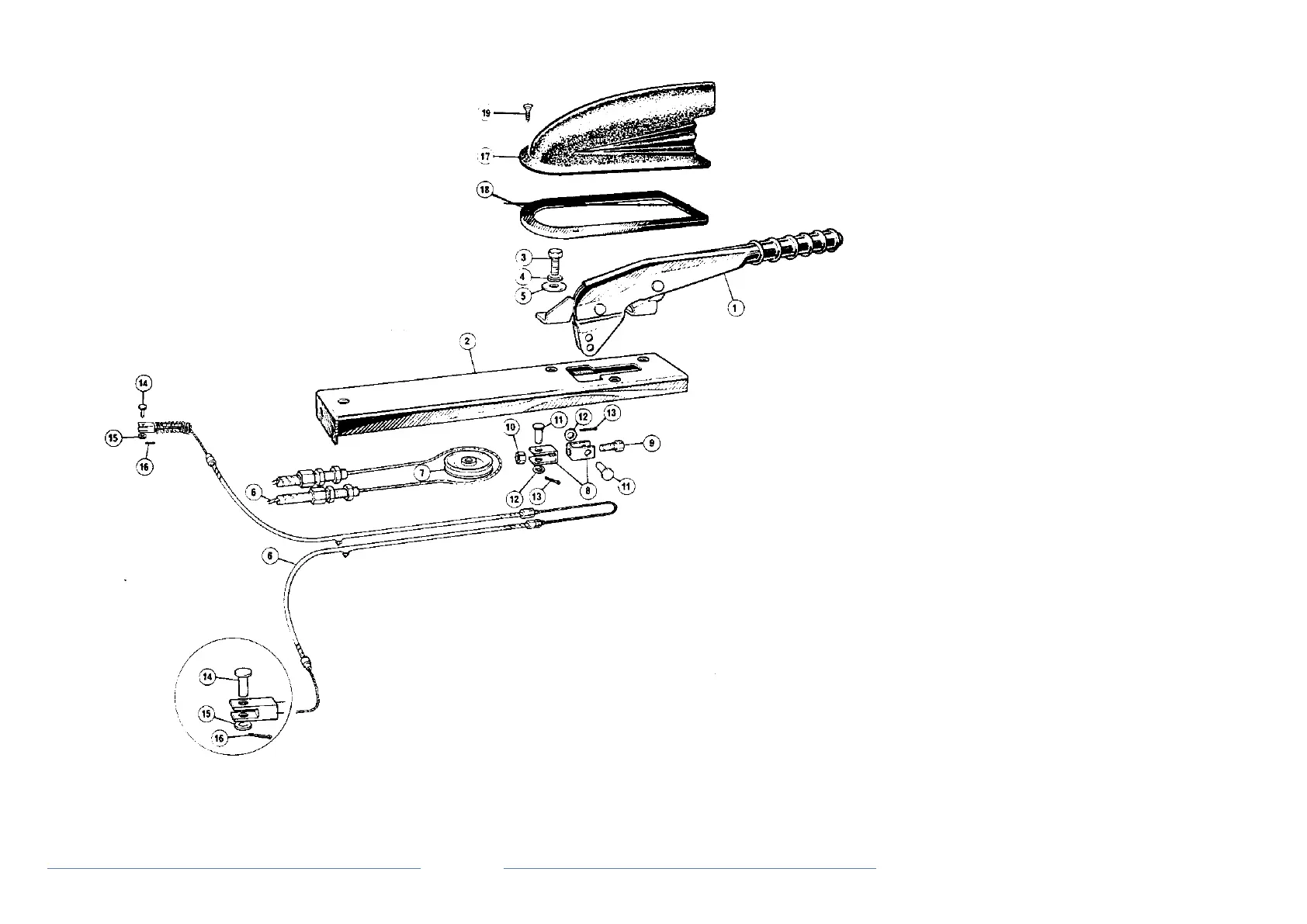

Figure 7 Handbrake lever - after chassis no:
6F7/14701001 - saloon,
6F7/14801002 - estate,
6H1/14901043 - van.
1. Handbrake lever
2. Mounting bracket
3. Set screw
4. Lock washer
5. Coach washer
6. Handbrake cable
7. Compensator pulley
8. Clevis
9. Clevis bolt
10. lock nut
11. Clevis pin
12. Washer
13. Split pin
14. Clevis pin
15. Washer
16. Split pin
17. Handbrake gaiter
18. Retaining ring
19. Screw
