Page 93

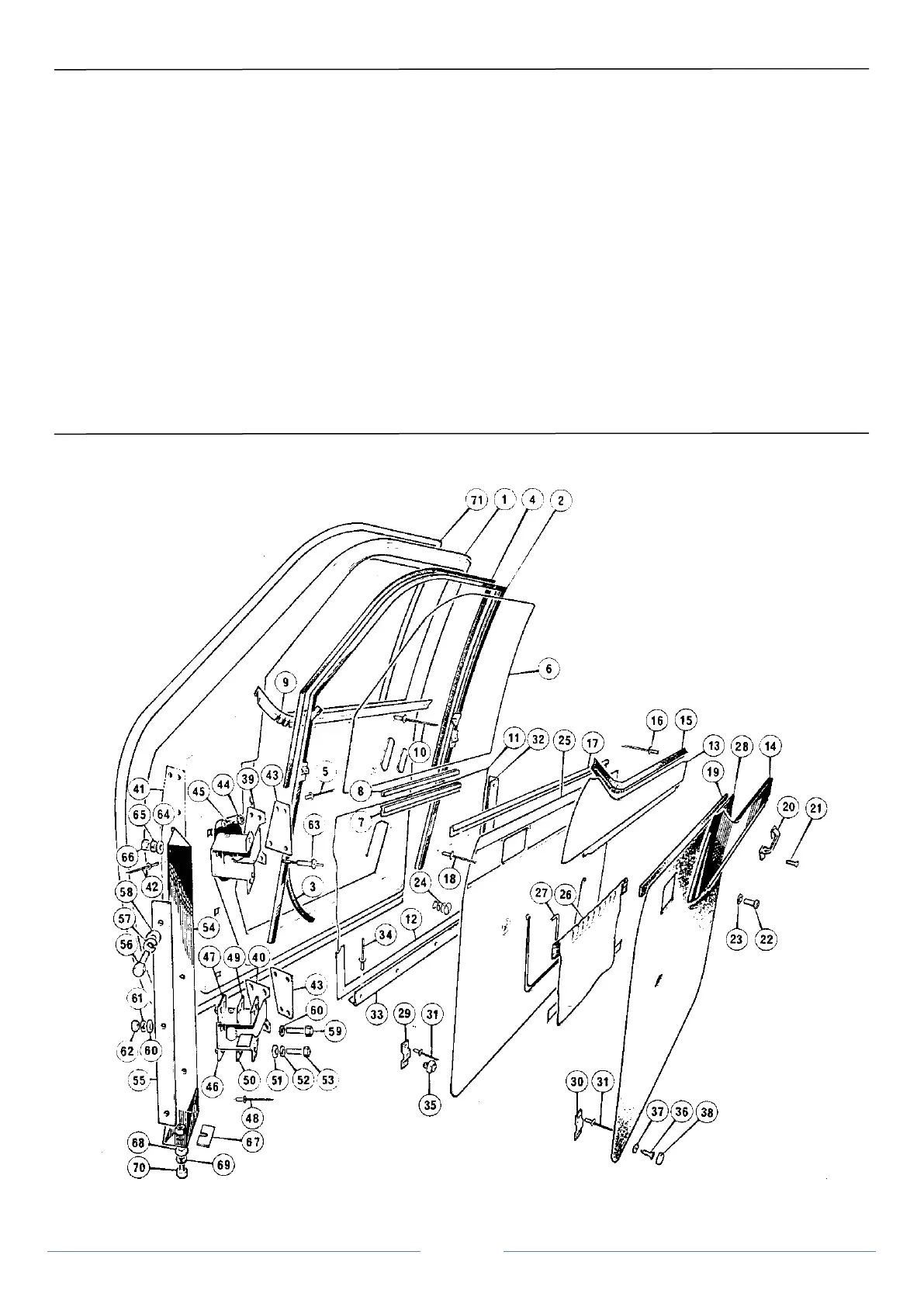

Figure 2 Door shell and trim
1. Door 18. Snap cap 35. Lock washer
2. Glass 19. Upper hinge 36. Coach washer
3. Frame 20. Lower hinge with check strap 37. Screw
4. Rubber silent channel 21. Screw 38. Coach washer
5. Rivet 22. lock washer 39. Lock washer
6. Stiffener 23. Washer 40. Nut
7. Weather strip 24. Backing plate 41. Shim
8. Rivet 25. Backing plate 42. Set screw
9. Weather strip 26. Rivet 43. Lock washer
10. Rivet 27. Screw 44. Coach washer
11. Regulator channel 28. Lock washer 45. Door seal
12. Insulation 29. Plate 46. Waterproof membrane
13. Door panel 30. Backing plate 47. Tape for membrane
14. Insulation 31. Rivet 48. Anti rattle pad
15. Door panel insert 32. Support plate 49. Sealing ring
16. Screw 33. Stiffener
17. Washer 34. Screw
