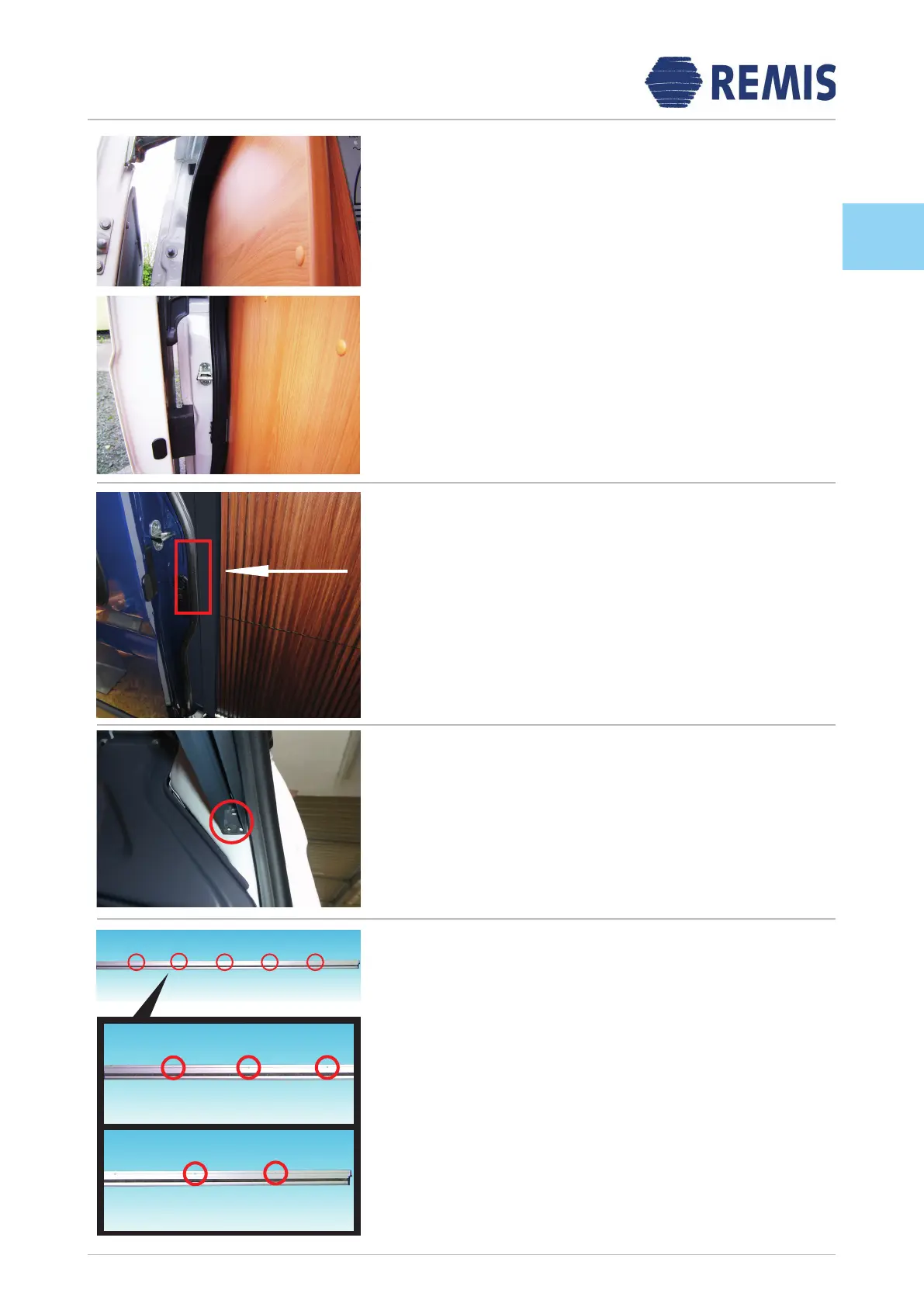

REMIS REMIcare Van - Position Insect Protection Door; Position Coffer and Floor Rail; Guide Top Guiding Rail; Secure Floor Rail

11/20
A14:
Screw the oor rail tight using the 2.9x16 countersunk bold (A).
A13:
Carefully guide the top guiding rail past the door sealing into the inside.
A14
A12:
Now position the coffer in the marked area at the door sealing prole.
Make sure that the shutter does not slip out of the coffer notch. Check
the coffer’s height position. The arm of the oor rail has to rest on the
oor cover (also see A13).
A12
A10
A10+A11:
Position the insect protection door in the door frame so you can push
the shutter between the rubber joint of the door section and the kitchen
furniture.
We remommend the top guiding and the oor prole to be held by one
person each while positioning the insect protection door.
A11
US/GB
A13
