12/20

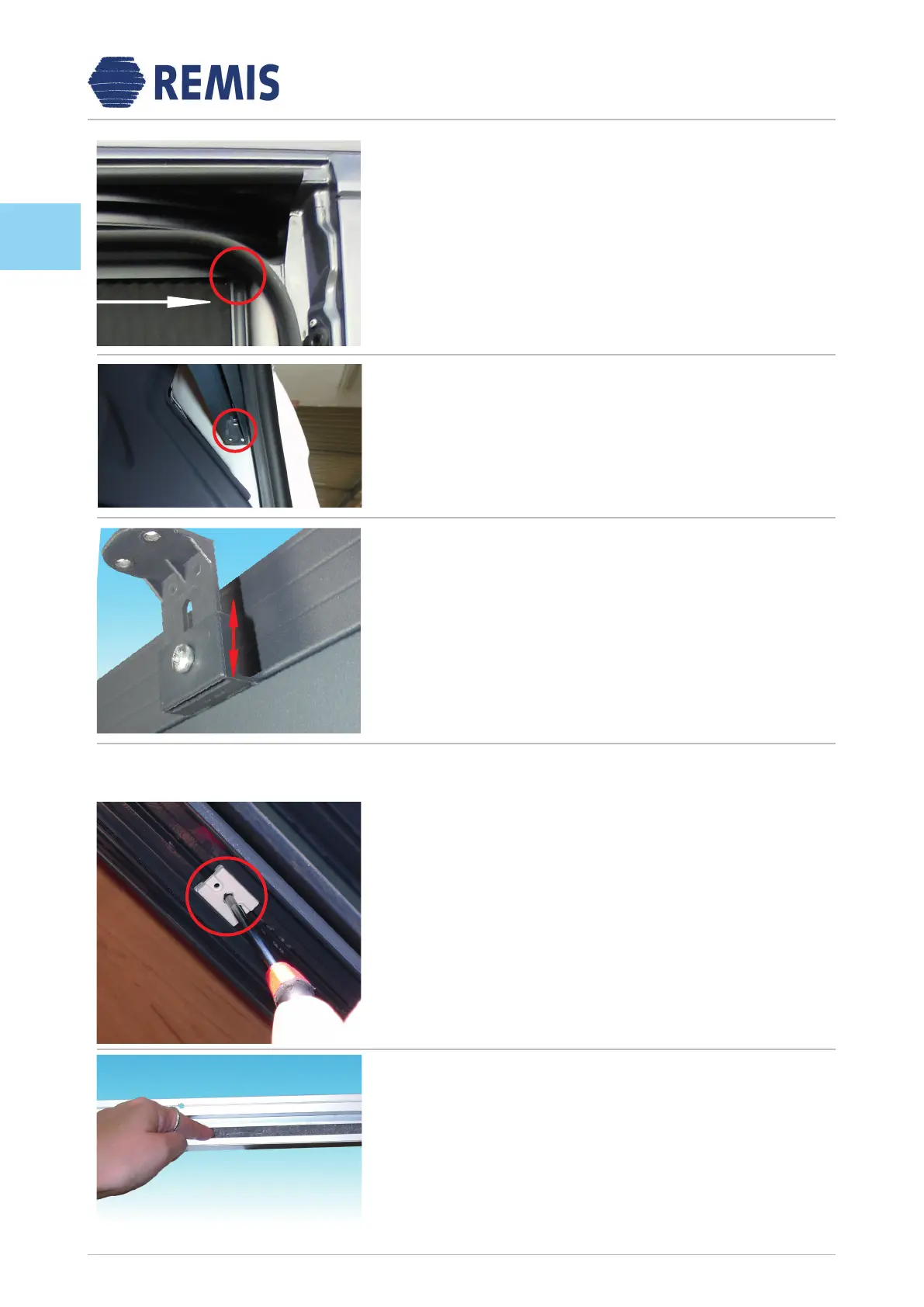

A16:
Bring the insect protection door back into idle position and screw the
top guiding rail onto the marked position using the 3.5x16mm panhead
bold (B).
A15:
Close the insect protection door and mark the position of the top gui-
ding prole’s end cap resulting from this. Make sure to let the guiding
rail run parallel to the door sealing.
A15
A17
A17:
Then attach the xation backet to the furniture construction. Depending
on the furniture construction screw length may vary. Select the panhead
bolt 3.5mm (C) length accordingly. In order to adjust the xation bracket
loosen the screw a bit and position the bracket at the desired height.
Now pull the screw tight again.
A20
A20:
In order to rst determine the position of the string stretcher inside the
oor prole, carefully move your nger along between the brushes of
the oor prole. The string stretcher is located inside the bottom canal
of the oor prole and is covered by the brushes.
A19
A18+A19:
In order to adjust the string tension, loosen the grub screw inside the
string stretcher sitting inside the top guiding prole, with a small 1.5mm
Allen screw. Now pull hte string stretcher towards the handle bar to
stretch it more, or into the opposite direction to loosen the tension. Pull
the grub screw tight again.
Step 4: (Adjusting the string tension, if necessary)
US/GB
A16
