REMIS REMIfrontII-S - Page 3

REMIfrontII-S User information
Issue: 34/2005 We reserve the right to make changes Page 3/5

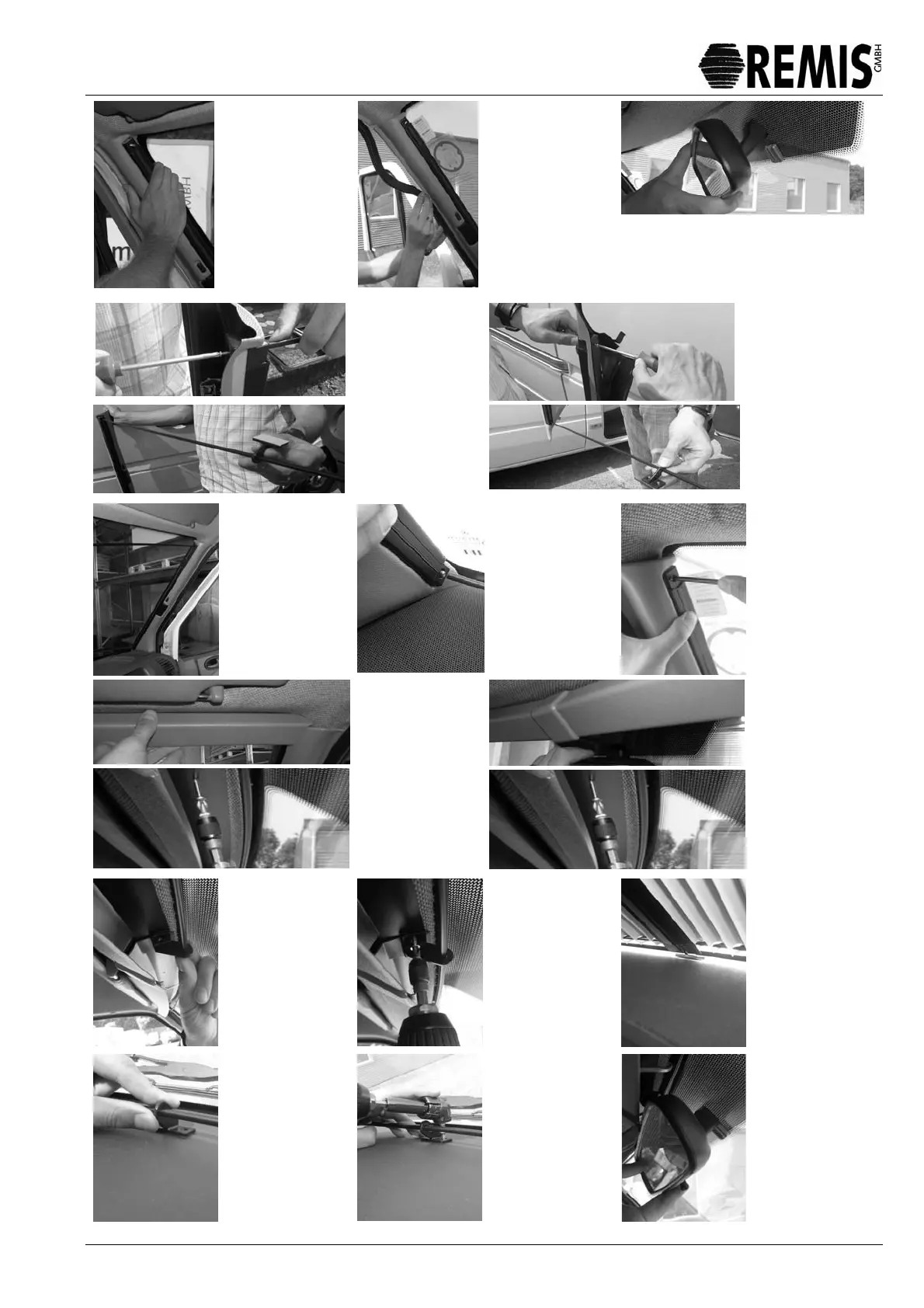

B14:
Press the cover on
firmly. If it does
not sit correctly,
pull off again and
either cut off more
of the roof
covering or push
the cables which
run behind
somewhat to the
side.
B15:
Press the rubber
door seal on again.
B16:
To make the next steps easier, remove
the mirror. The mirror must be pulled
out upwards.
B17:
Screw top guide
tube (plug) onto
the right A-pillar
cover.
(1x screw 2.9x16)
B18
Screw top guide
tube (plug) onto
the right A-pillar
cover.
(1x screw 2.9x16)
B19:
Push tube carrier
onto top guide
tube.
B20:
Push tube carrier
onto bottom guide
tube.
B21:
Mount the right A-
pillar cover just
like the left cover
(B7-14).
B22:
Screw the bottom
guide tube into the
thread of the left A
pillar cover.
B23:
Repeat process for
top guide tube.
B24-25:
Lay right section of
top cover with the
contour against
the A-pillar cover
and screw on.
(3x screws 3.9x16)
B26-27:
Push left section of
cover into the right
cover and lay with
the contour
against the A-pillar
cover and screw
on (3x screws
3.9x16).
B28:
Stick on the tube
carrier in the cover
in line with the
mirror carrier.
B29:
Screw tube carrier
tight.
(2x screws 4.2x13)
B30:
Pull together front
blind in order to
position tube
carrier in centre.
B31:
Straighten tube
carrier and stick
on.
B32:
Screw tube carrier
fast.
(2x screws 4.2x13)
B33:
Re-hang mirror.
B26
B19
B20
B21
B2
2
B30
B33
B25
B27
B28
B29
