REMIfrontII-S User information
Issue: 34/2005 We reserve the right to make changes Page 2/5
C. Assembly information
We recommend that the blind system is installed by a specialist workshop !
No liability or warranty is accepted in cases of incorrect assembly or installation.

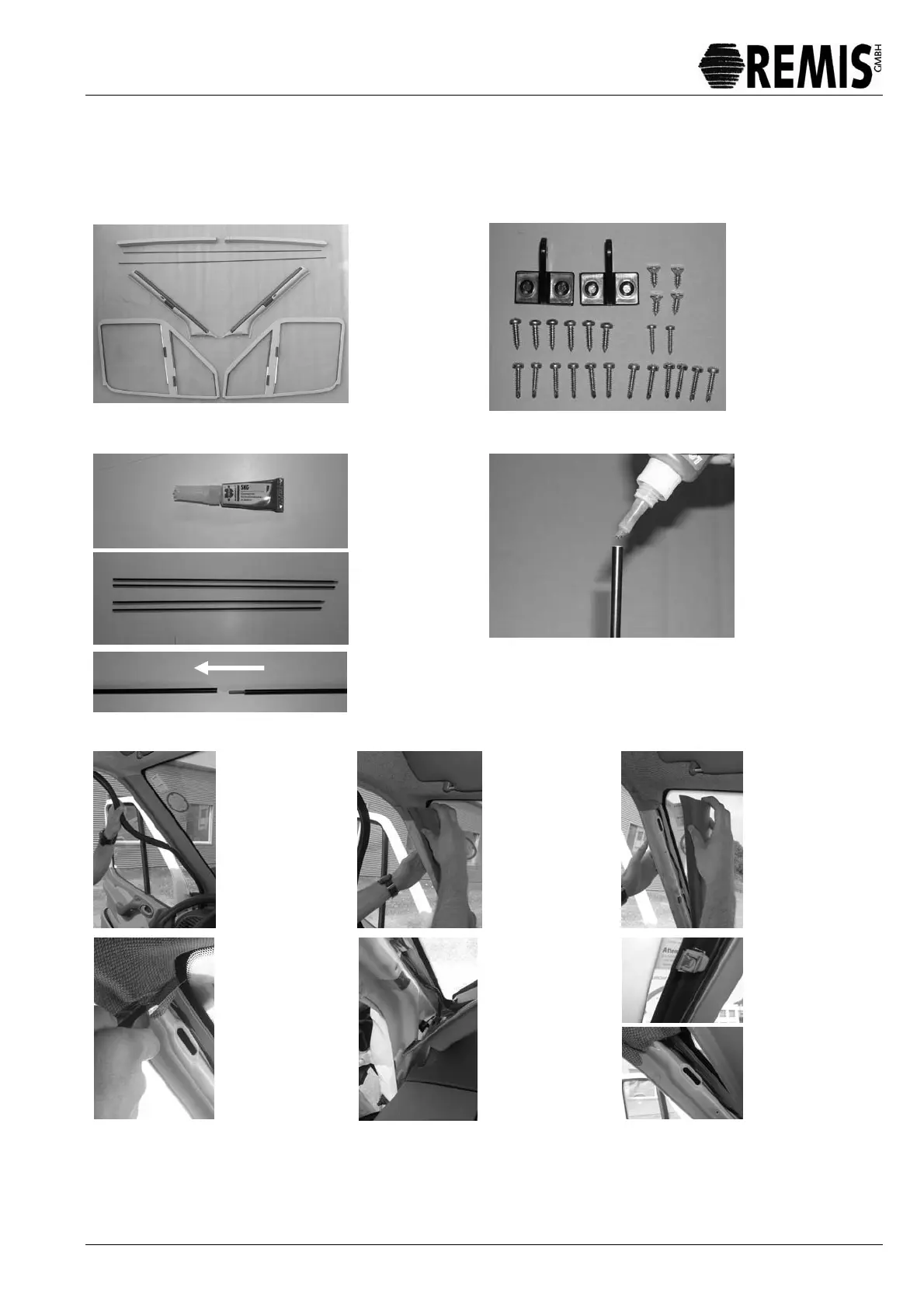

Step 1: (Check scope of delivery)
B1:
1 Front system
- Cover
A-pillar left/right
- Guide tubes top
(1515mm) &
bottom
(1585mm)
- Top cover, left
and right
2 Side system
- driver's side
- passenger side
B2:
Front blind
- 2 tube carriers
- 4 screws 4.2x13
- 6 screws 3.9x16
- 2 screws 2.9x16
Side blind
- 12 screws
3.5x19
Step 2: (Assemble guide tubes, for trade only!)
B3-B4:
If the top and
bottom guide tubes
are delivered
separately, they
must be joined with
the adhesive
supplied with the kit.
B5:
The adhesive is
applied into the
guide tube at the
end without the
thread. Use
sufficient to fill the
front part of the
opening generously.
B6:
The guide tube with pin is now pushed rapidly into the other tube. Allow the joined
tubes to harden for 10-15 minutes!
Important: Always link pairs of the same length!
Step 3: (Mount front system)
B7:
Remove door seal
from area of the
left A-pillar cover.
B8:
Push fingers
between A-pillar
and roof covering
and pull out of the
metal.
B9:
The A-pillar cover
can now be lifted
off upwards.
B10:
For ease of
assembly, a pieces
should be cut out
of the roof
covering, as
shown.
B11:
The bottom lug of
the "left A-pillar
cover" is fed into
the bottom
opening of the
metal.
B12-13:
Press the bracket
on the cover into
the top opening of
the metal.
B8
B9
B10
B13
B6
B12
B7
B11
B3
B4
B5
B5
