REMKO WKF Series Electrical Wiring Manual

WKF/WKF-compact 180
230V~/N/Pe
L1
L2 L3
N
Pe
400V/3~/N/Pe
L1
N
Pe
400V/3~/N/Pe
L1
L2 L3
N
Pe
1
A B C D
E

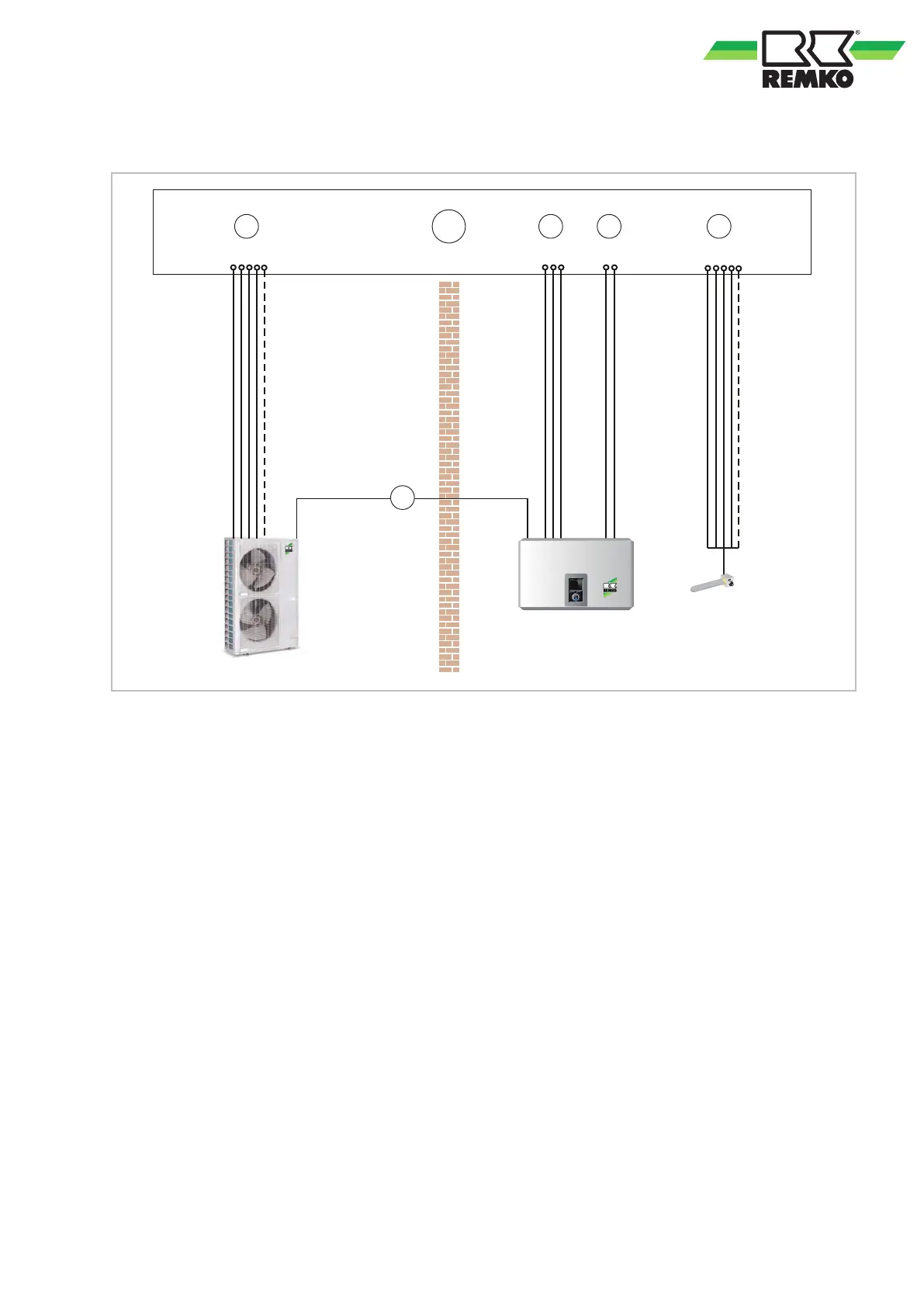

Fig. 5: Overview of the electrical cables WKF/WKF-compact 180
1: Main distributor
A: Power supply, outdoor unit
B: Power supply, indoor unit
C: Power company disable signal, potential-free /
open = OM disabled
D: Power supply, 9 kW heating element, indoor unit
E: Communication F1/F2, Outdoor unit / indoor unit
2x1 mm
2
shielded
11
