3.3 Overview of the electrical cables
WKF 120 Duo
230V~/N/Pe
230V~/N/Pe
230V~/N/Pe
L1
N
Pe
L1
N
Pe
L1
N
Pe
400V/3~/N/Pe
L1
L2 L3
N
Pe
1
A1
B C D
A2
E1
E2

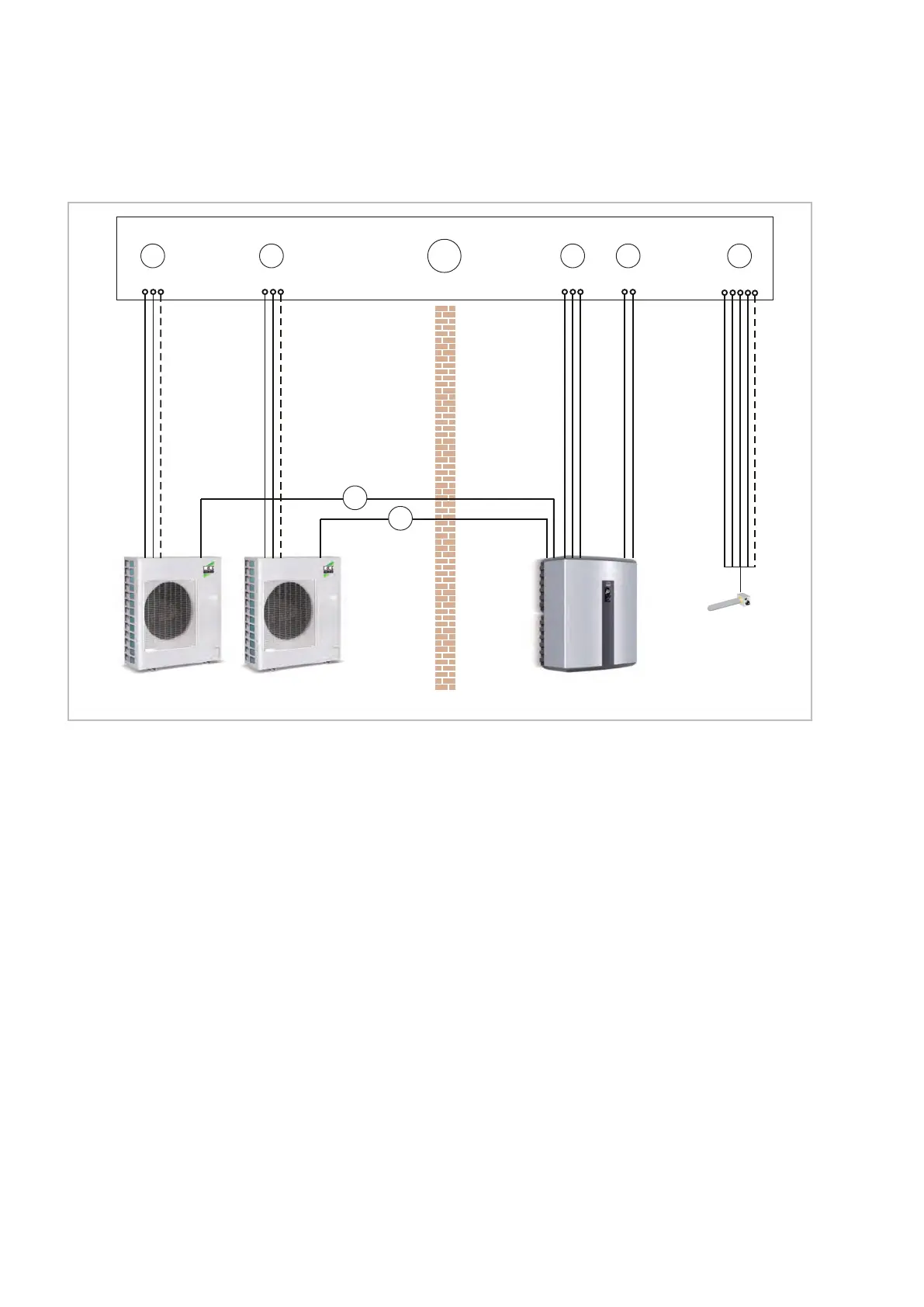

Fig. 15: Overview of the electrical cables WKF 120 Duo
1: Main distributor
A1: Power supply, outdoor unit 1
A2: Power supply, outdoor unit 2
B: Power supply indoor unit
C: Power company disable signal, potential-free /
open = OU disabled
D: Power supply, 9 kW heating element, indoor unit
E1: Communication F1/F2,
Outdoor unit 1 / indoor unit
2x1 mm
2
shielded
E2: Communication F1/F2,
Outdoor unit 2 / indoor unit
2x1 mm
2
shielded
REMKO WKF series
28
