98CUP_2013 Release
C-28

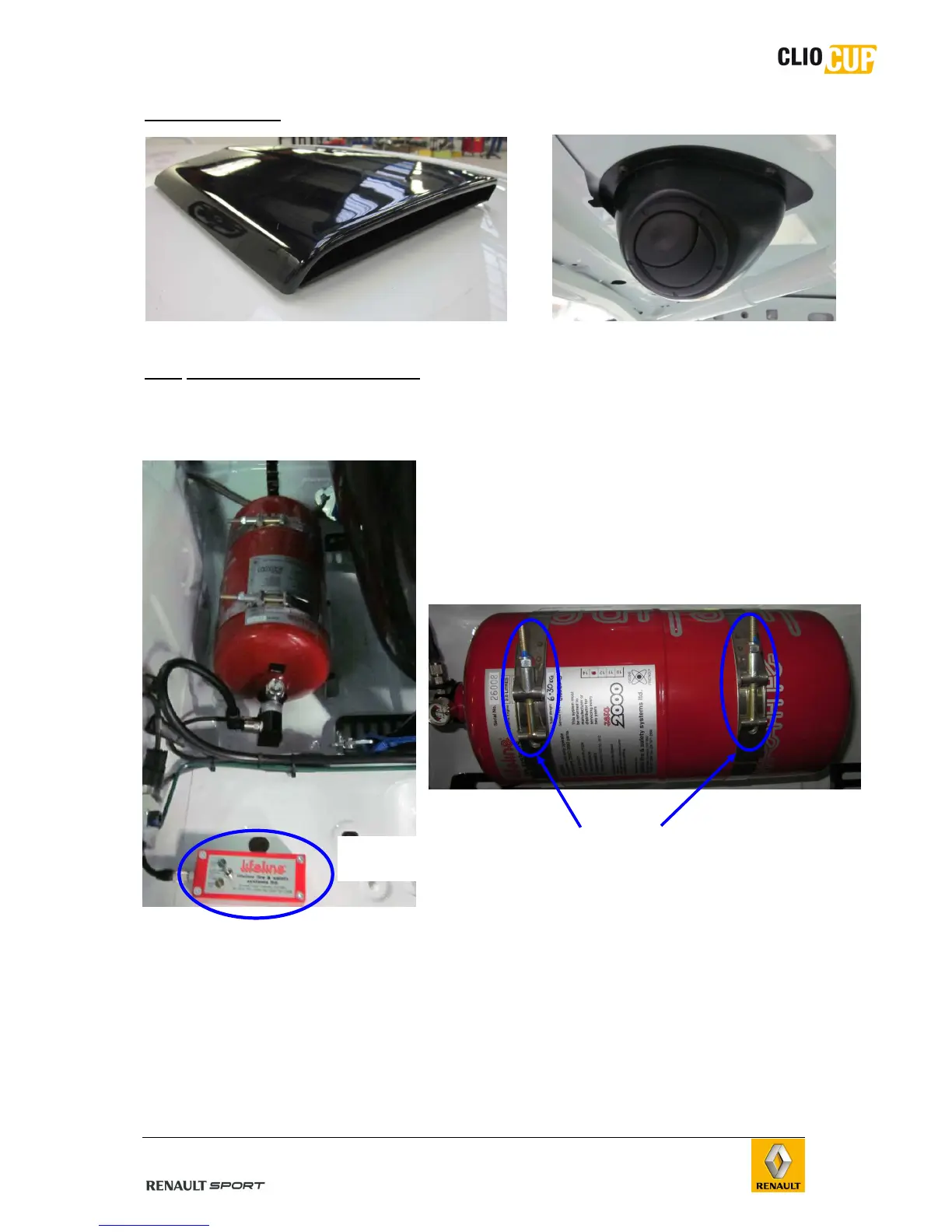

Roof ventilation:
B.7 SAFETY EQUIPMENT
B.7.1 FIRE EXTINGUISHER
Each vehicle is equipped with an extinguishing
system targeting the driver compartment and the
engine compartment.
The fire extinguisher is located behind the driver’s
seat.
The fire extinguisher is fitted on its support using 2 metallic straps which are mandatorily
screwed (automatic clamping forbidden).
The fire extinguisher support is fitted on the chassis using 4 M6 screws (+2 spacers) + 4
nuts screwed under the chassis through plates (welded to the chassis)
Control unit
(3 positions)
2 mandatory
screwed clamps
