Crevaison, roue de secours (BJA - Renault)
PUNCTURE, EMERGENCY SPARE WHEEL (2/2)

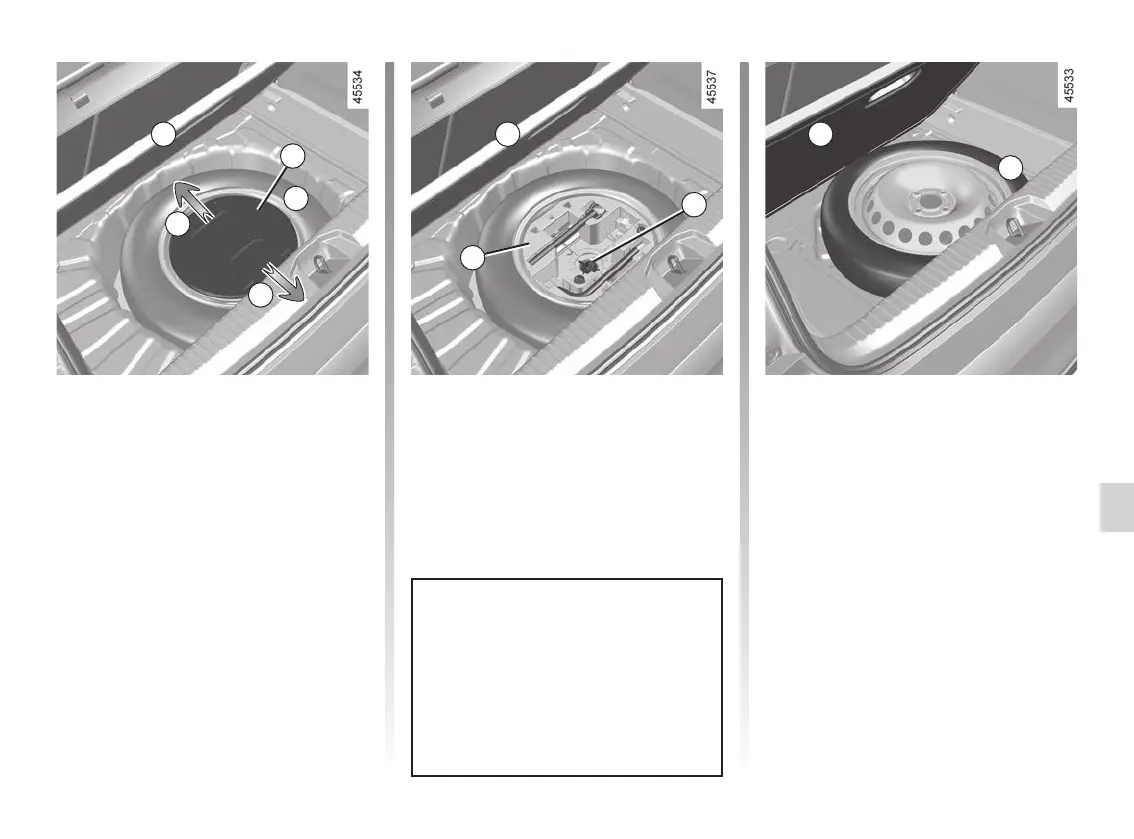

Emergency spare wheel
To get to it:
– open the boot;
– depending on the vehicle, lift up the
movable floor and the luggage com-
partment mat 1;
– depending on the vehicle, remove
the cover 2 from the tool kit 4 by slid-
ing it (movement C or D);
– unscrew the central mounting 3 (lo-
cated, depending on the vehicle,
under the jack) anti-clockwise;
1
A
– remove the tool kit 4;
– remove the emergency spare wheel
(A or B, depending on the vehicle).
B
1
2
On vehicles equipped with emer-
gency spare wheel B, the punctured
wheel may not be stored in place
of the emergency spare wheel B.
The 4 tool kit must be attached
using the central attachment 3 and
the punctured tyre must be placed
in the luggage compartment.
D
C
4
1 1
