Renault Clio - Page 87

display .......................................................
(up to the end of the DU)
overspeed buzzer ......................................
(current page)
control instruments ....................................
(up to the end of the DU)
range with fuel ...........................................
(current page)
indicators:
instrument panel ..................................
(up to the end of the DU)
trip computer and warning system.............
(current page)
instrument panel ........................................
(up to the end of the DU)
warning lights.............................................
(up to the end of the DU)
1.73
ENG_UD68927_4
Afficheurs et indicateurs (BJA - Renault)
DISPLAYS AND INDICATORS (4/7)

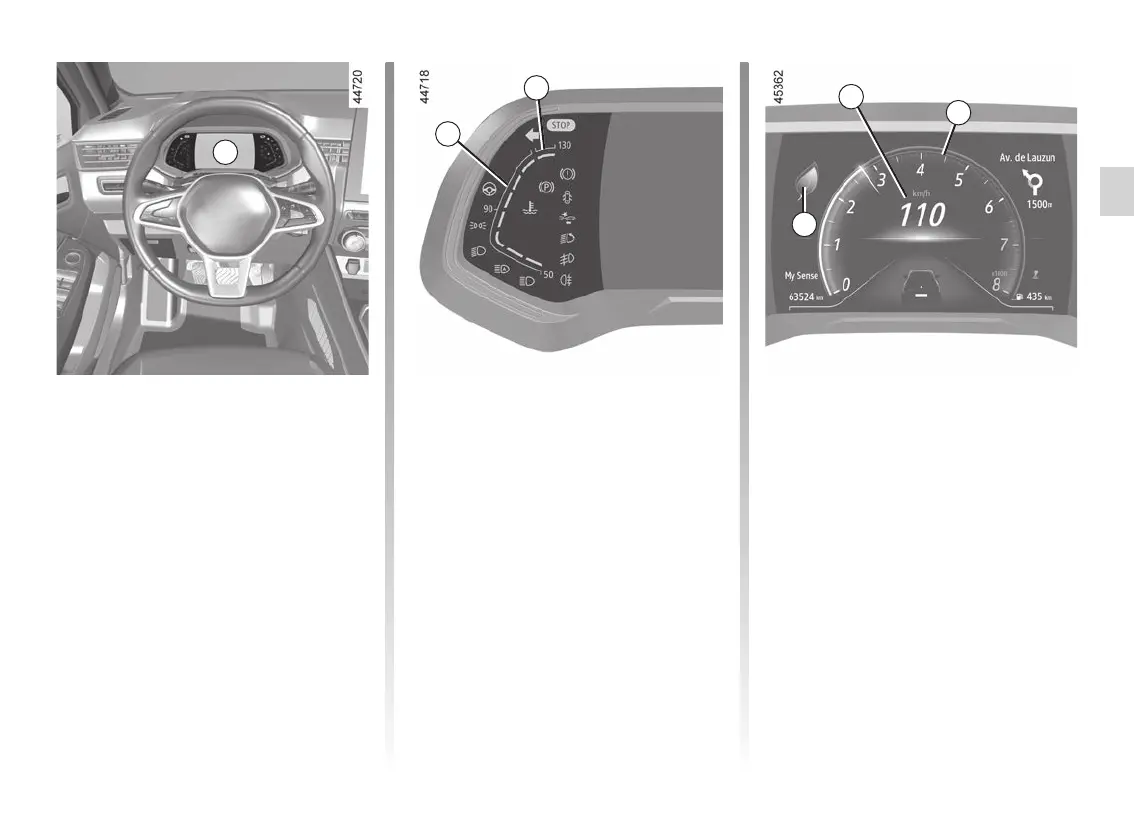

Instrument panel B
It lights up when the ignition is switched
on. In some cases, the appearance of a
warning light is accompanied by a mes-
sage.
Depending on the vehicle, you can cus-
tomise your instrument panel with the
content and colours of your choice.
For vehicles fitted with a multimedia
screen, refer to the equipment instruc-
tions.
For vehicles not fitted with a multimedia
screen ➥ 1.89.
B
1 2
4
5
3
6
Coolant temperature indicator 16
In normal use, indicator 16 should be
before area 17. Under “intensive” op-
erating conditions, the needle may ap-
proach this zone. This is not serious
unless the warning light
® comes
on accompanied by a message on the
instrument panel and a beep.
Speedometer 18
Depending on the style selected, the
display varies.
16
17
Overspeed buzzer
Depending on the vehicle and country,
the
 warning light is displayed
and a beep sounds. This sounds as
soon as the vehicle exceeds 74 mph
(120 km/h). The warning light remains
on as long as the vehicle speed is over
74 mph (120 km/h).
Rev counter 19
(graduations x 1000)
This is displayed differently according
to how the instrument panel is custom-
ised. Depending on the style selected,
it may not be displayed.
Driving style indicator 20 ➥ 2.28.
20
18
19
