VALUES AND SETTINGS
Procedure for tensioning the timing belt
07
07-9
F9Q engine

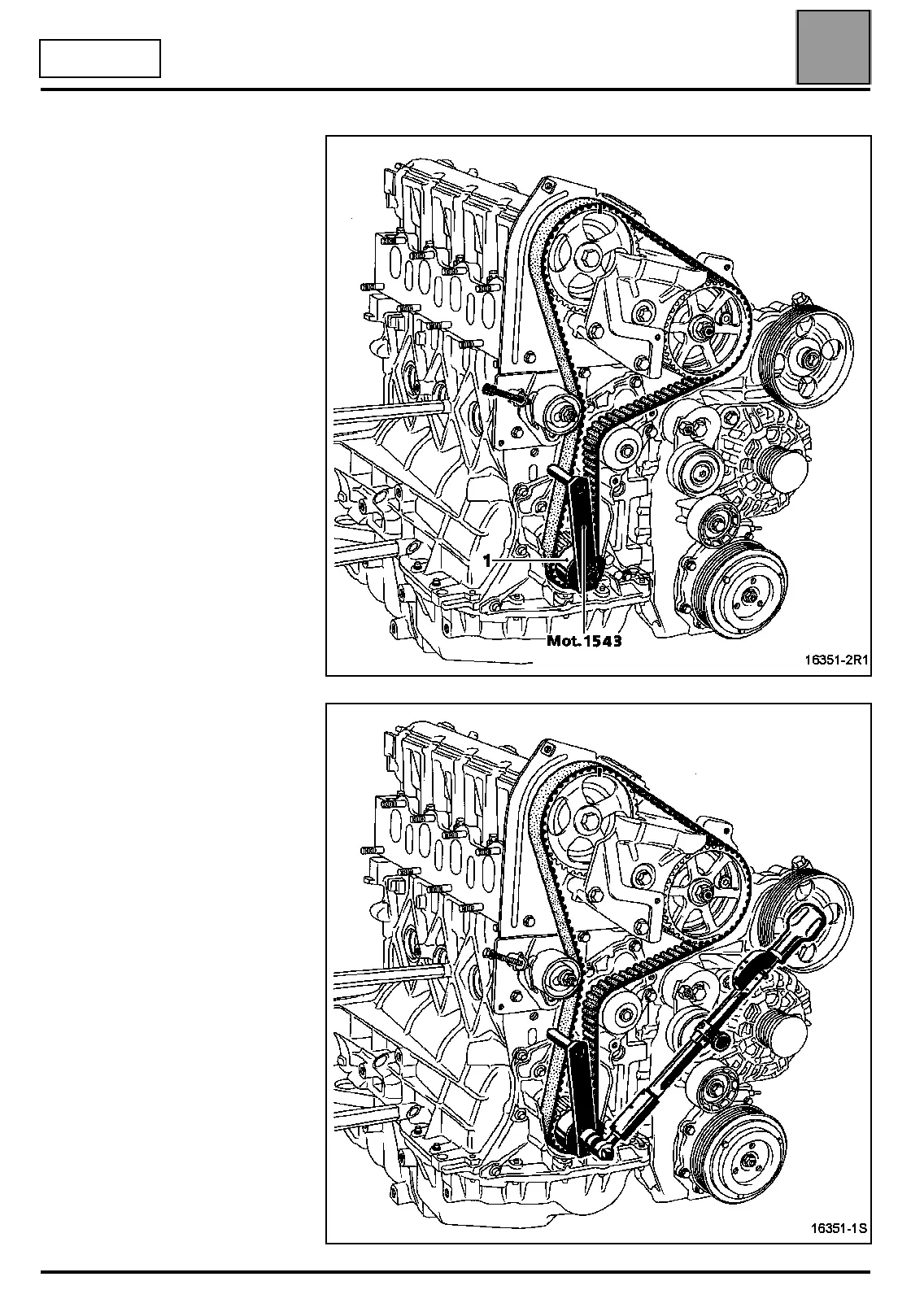

Fit Mot. 1543 and the cover
numbered 1 on the crankshaft
accessories pulley bolt.
16351-2R1
Apply pretension between the
crankshaft timing sprocket and the
tensioner using the tool Mot. 1543
and the cover 1, adjusting the torque
wrench to a torque of 1.1 daNm.
16351-1S
