Procedure for tensioning the timing belt
07
07-27
F4P engine
The tension wheel and the pulley must be replaced
when the timing belt is replaced.

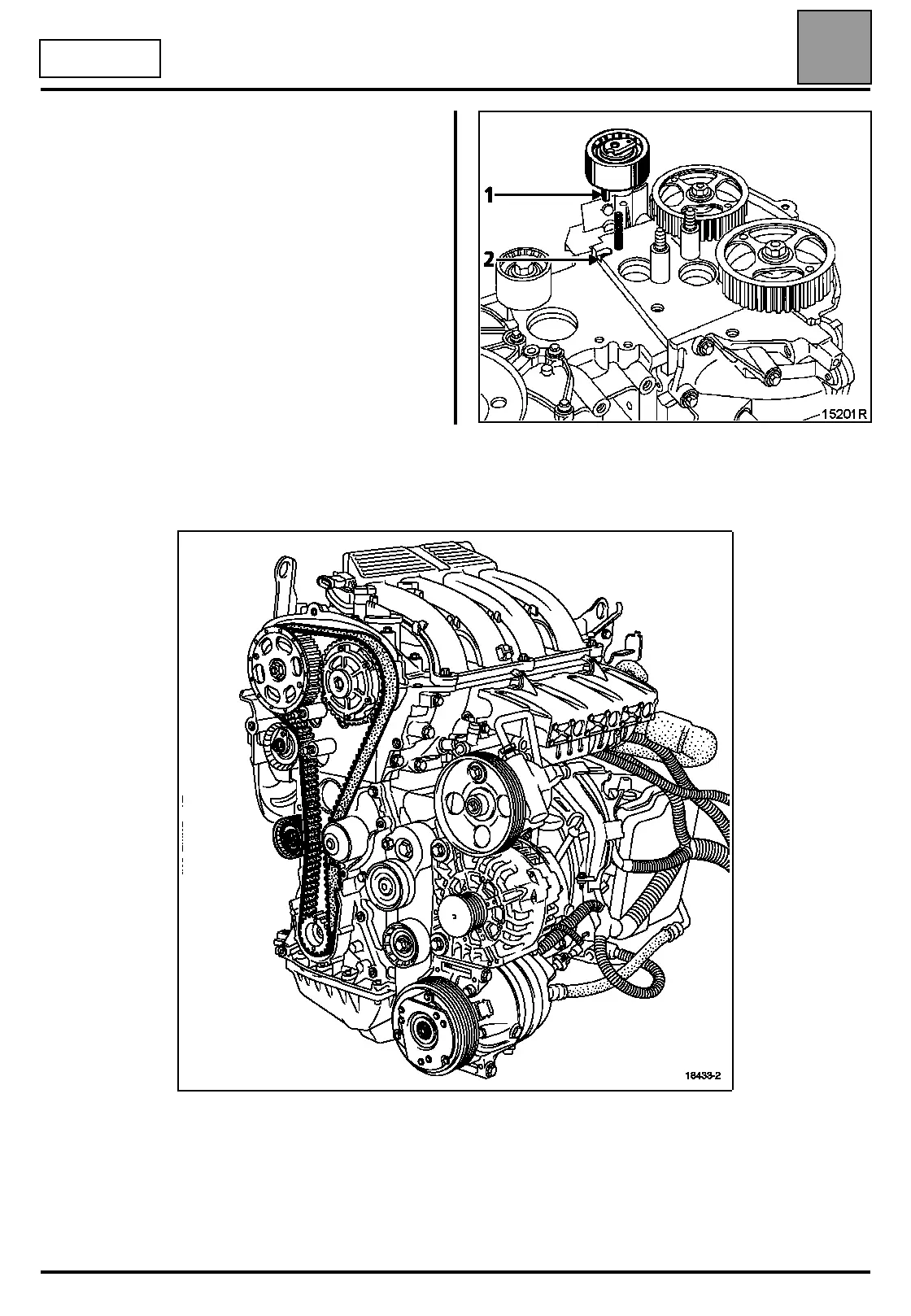

Ensure that the lug (1) of the tension wheel is correctly
positioned in the groove (2).
Refit:
– the timing belt,
– the pulley (3) tightening the mounting bolt to a torque of 4.5 daNm,
– the crankshaft accessories pulley, pretightening the bolt (without locking
the bolt, clearance of 2 to 3 mm between the bolt and the pulley).
NOTE:
– the crankshaft accessories pulley bolt can be reused if the length under
its head does not exceed 49.1 mm (otherwise replace it),
– do not oil the new bolt. However, the bolt must be oiled on the threads
and under the head if it is being reused.
