VALUES AND SETTINGS
Procedure for tensioning the timing belt
07
07-38
F4P engine

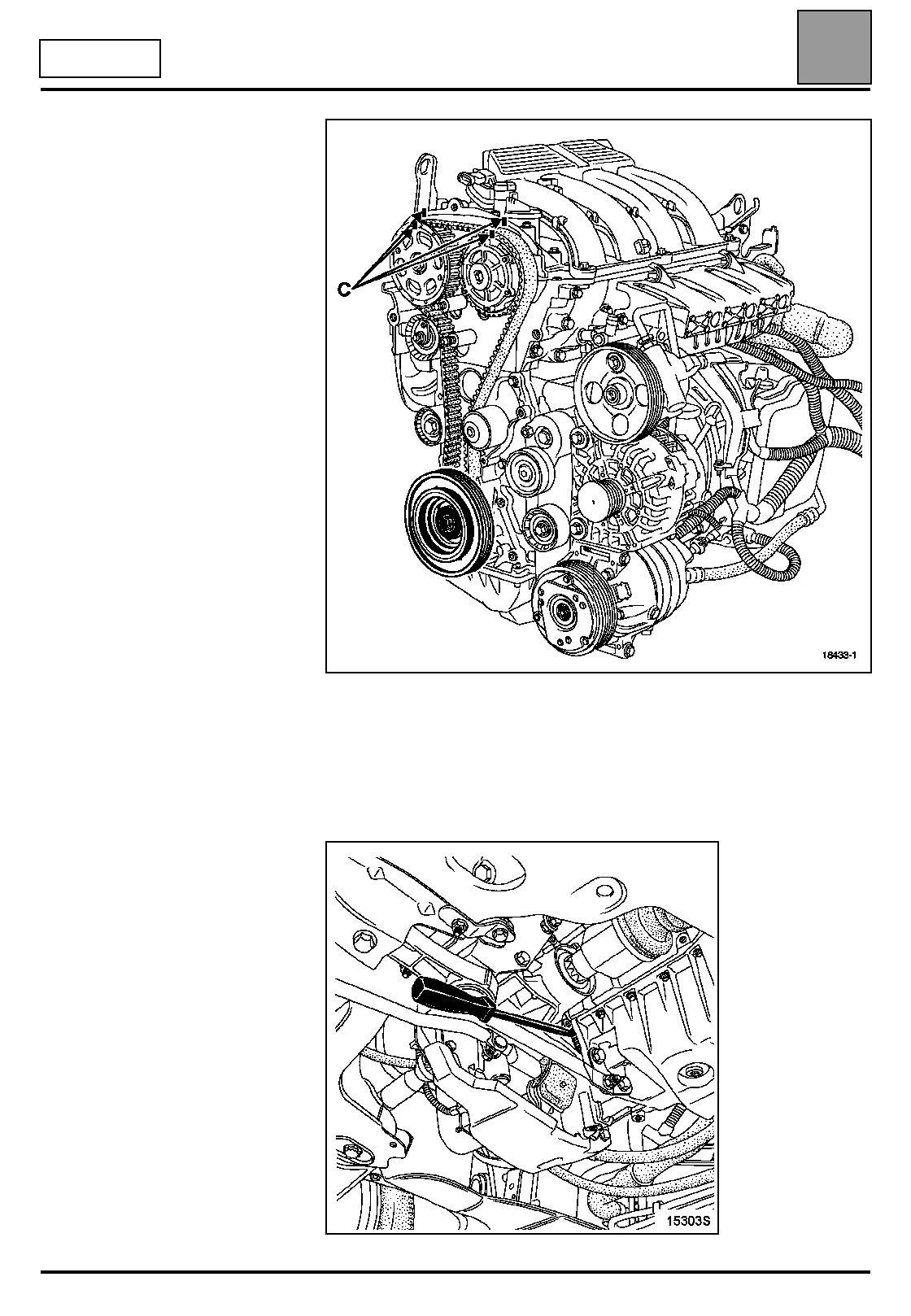

Mark a reference (C) on the ring of
the inlet camshaft dephaser and the
exhaust pulley in relation to the
camshaft bearing cap housing.
Remove the camshaft setting tool Mot. 1496 for as
well as the Top Dead Centre pin, tool Mot. 1054.
Tighten the crankshaft pulley bolt to an angle of
115° ± 15° locking the flywheel using a large
screwdriver.
