Renesas RA Family AIK-RA6M3, v1 User's Manual
R12UZ0143EE0100 Rev.0.1 Page
of 25
Oct.15.23
5. Hardware Details
5.1 Kit Architecture
AIK-RA6M3 have two functional areas:
MCU section (Daughterboard)
Peripherals section (Motherboard)
The MCU section includes the MCU, Clocks, SDRAM.
The Peripherals section includes Power Delivery, User LEDs and Pushbutton Switches, Debug Interface,
USB Full Speed, PMOD, Ethernet, CAN and Camera Module peripheral groups.

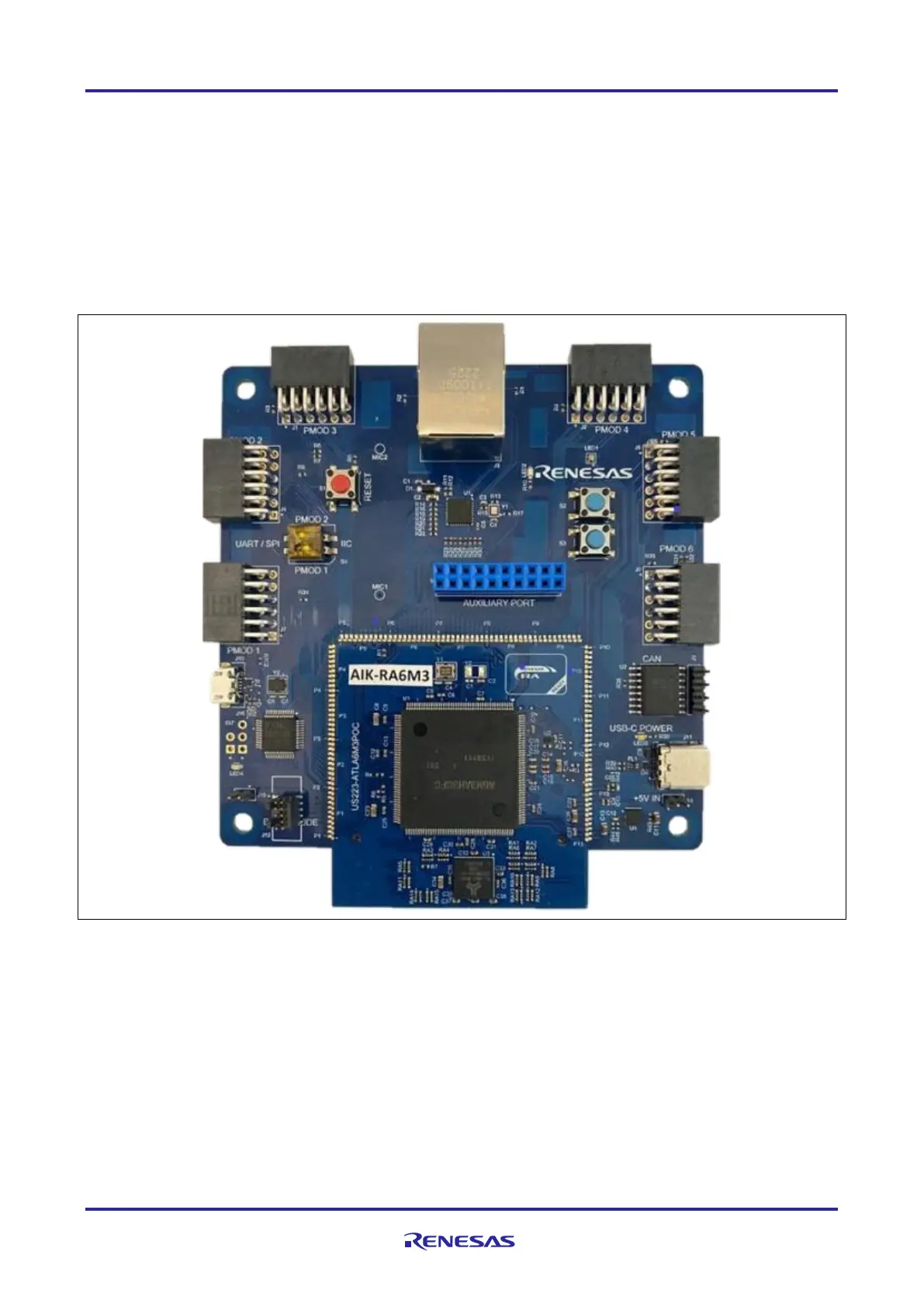

Figure 4. AIK- RA6M3 Board
