Renesas RA Family AIK-RA6M3, v1 User's Manual

R12UZ0143EE0100 Rev.0.1 Page

of 25

Oct.15.23

The DIP Switch S4 can be used to change between UART/SPI and ICC for PMOD 1 and PMOD2

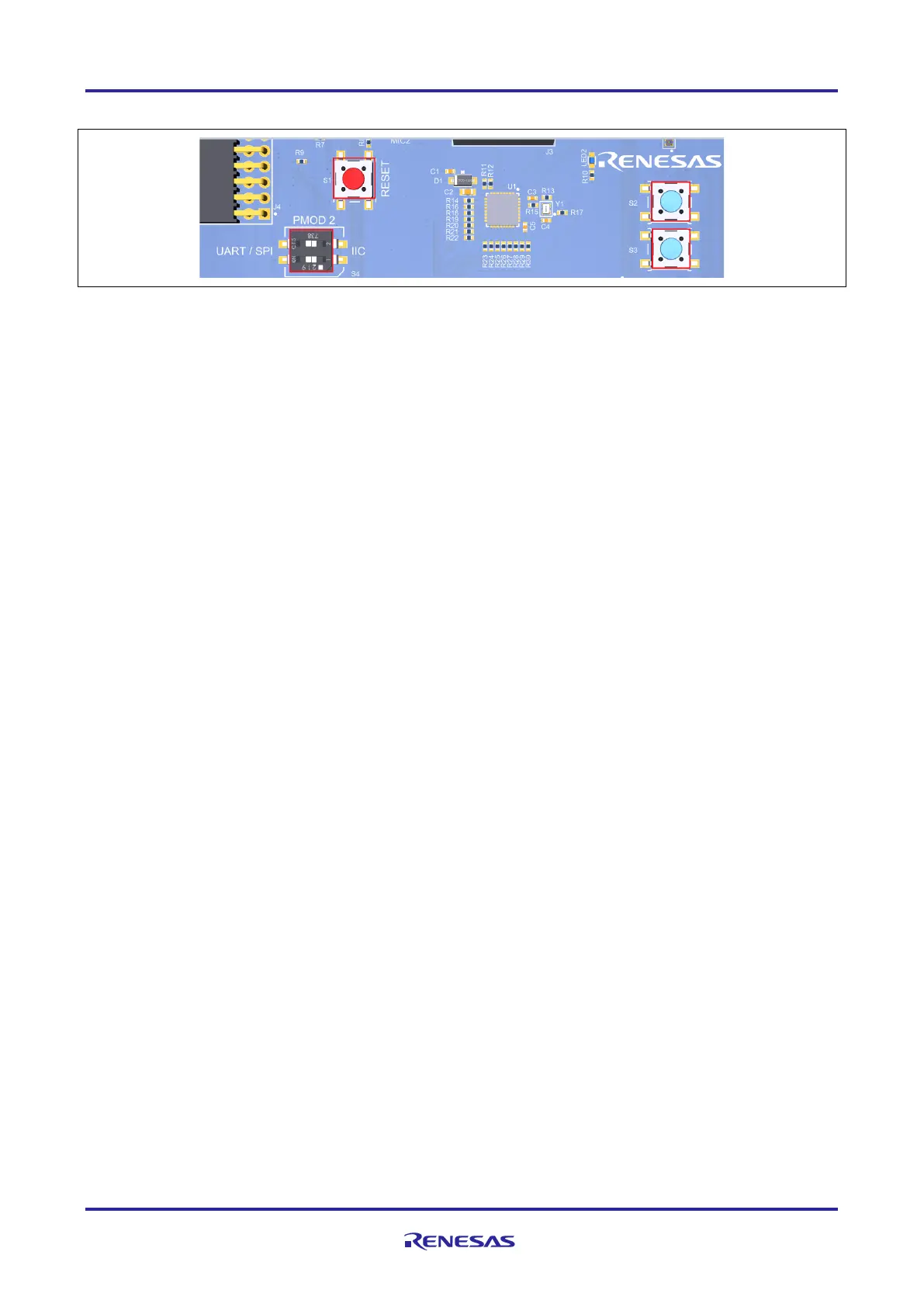

Figure 17. Reset and User Switches
