2.2 Expansion Board Setup
If you are using the expansion board together with your RZ/N1S CPU Board, here you may find some setup
notes for it. For more information refer to the board documentation in the Solution Kit. The expansion board
comes with an external power supply to drive the expansion board and the RZ/N1x CPU board plugged onto
the connectors J1 and J2. Please note the position of the power supply selection jumper below and ensure
that the 12…24V position is chosen. This board expands the RZ/N1S CPU boards with 3 Gbit PHY ports, an
SD-Card slot, a USB Host as well as CAN, RS232, RS485, PMODs, LCD display interface with integrated
touch screen, etc.

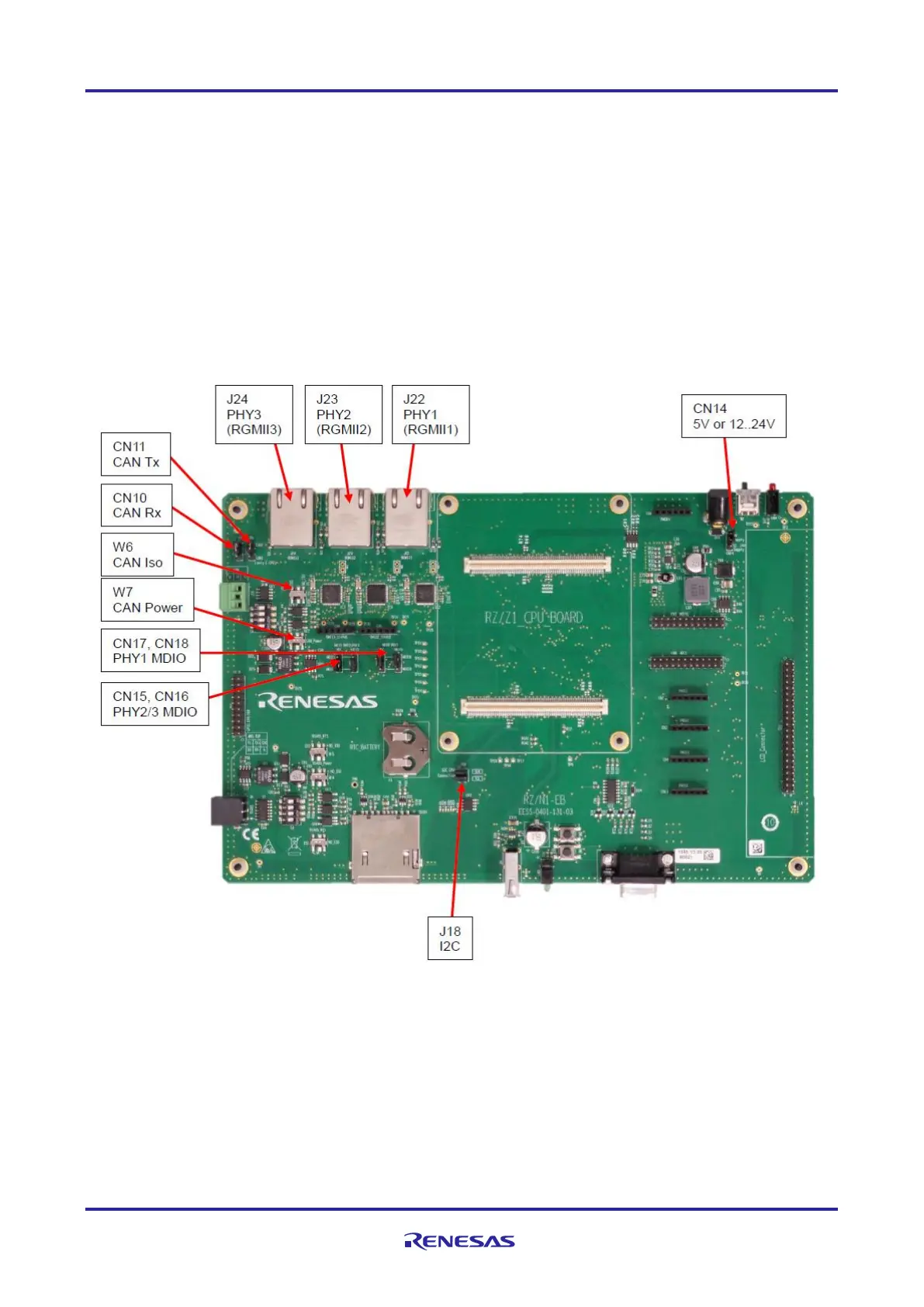

Figure 2-6: RZ/N1-EB Expansion Board Overview
