You can perform a soft-reset of the board by pressing SW9.
3. Ethernet Interface
The Ethernet connection to the PC or a PLC can be prepared using one of the two RJ-45 connectors
CN5 or CN1, as shown in Figure 2-5: Ethernet RJ-45 connectorsFigure 2-5. For running the
EtherCAT sample program you can use any of the two connectors. There are two PHY Micrel chips
connected to these RJ-45 connectors.

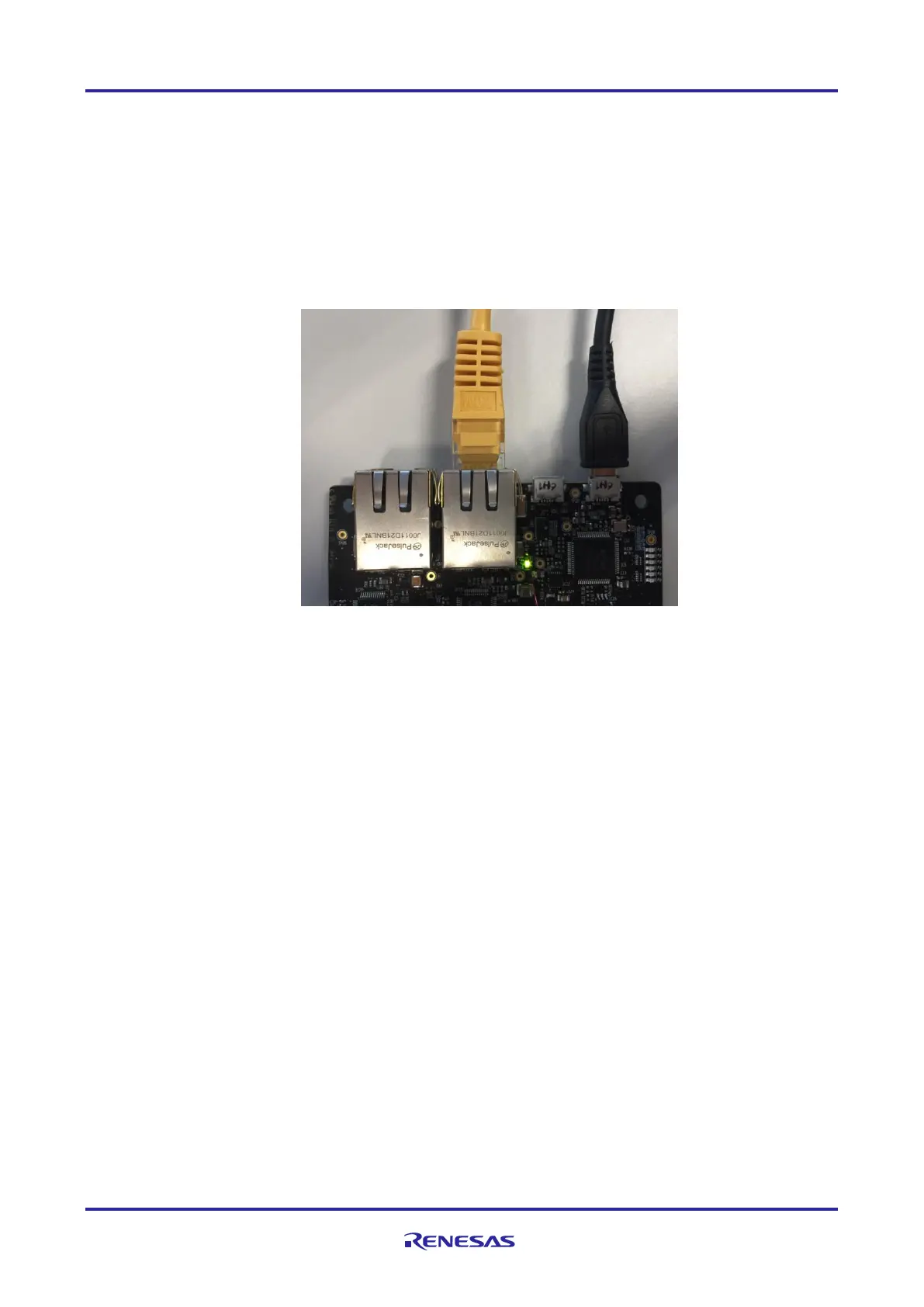

Figure 2-5: Ethernet RJ-45 connectors
