Jan.31.2020

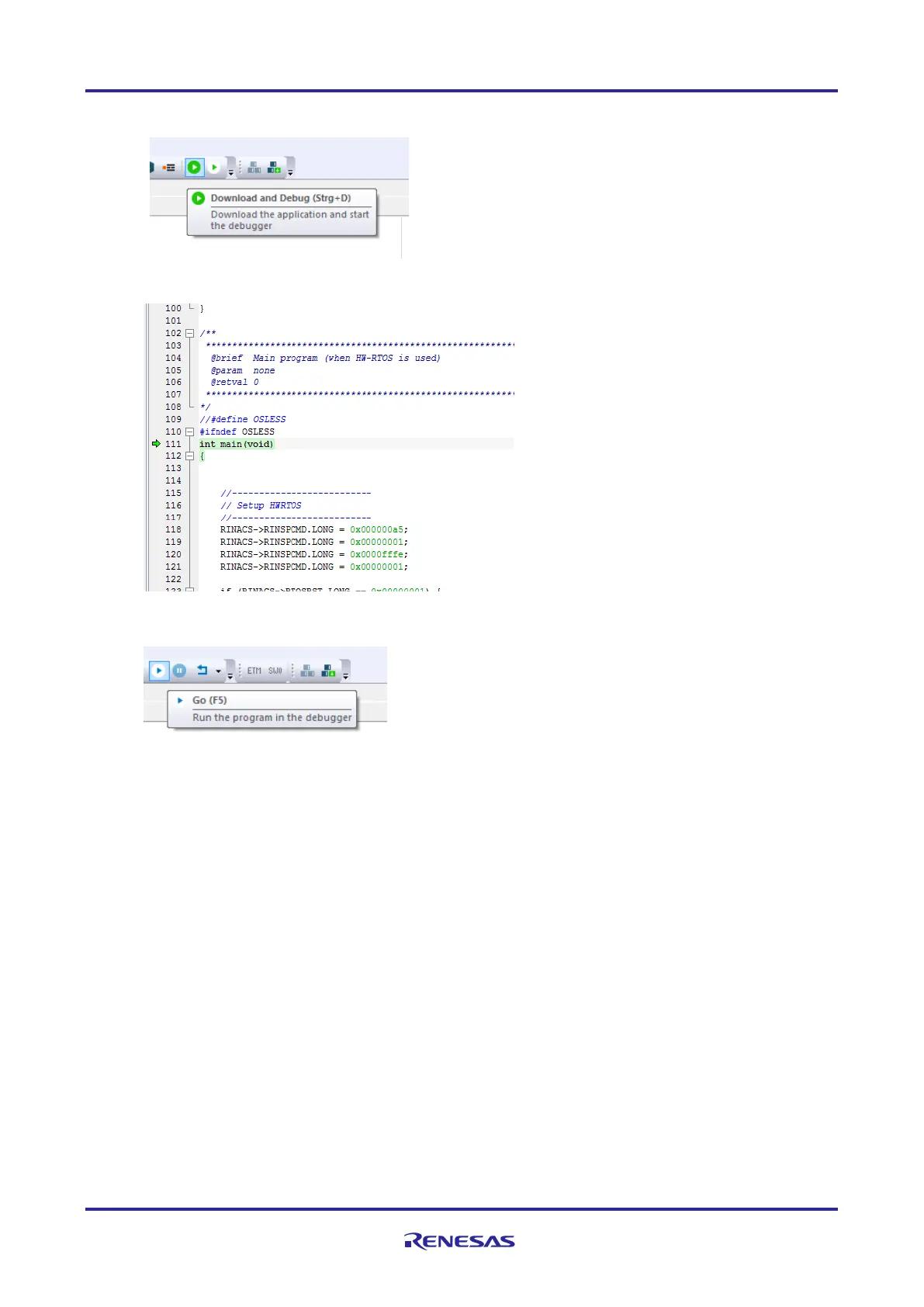

7. Click on the “Download and Debug” button in the program control panel in IAR EWARM, as shown
below.
8. In the Debug Log window there should be no errors nor warnings and the program should be stopped
at the beginning of the main() now.
9. At this stage you can click F5 on your keyboard or “Go” button in the IAR program flow panel.
The program should be running now on your board, the LEDs are toggling from one direction to another and
you should see some info output on your serial console as shown below.
Model: RZ/N1S Demo Board
DRAM: 4 MiB
MMC: sdhci@0x40100000: 0
SF: Detected mx25l25635f with page size 256 Bytes, erase size 64 KiB, total 32 MiB, mapped at
10000000
In: serial@0x40060000
Out: serial@0x40060000
Err: serial@0x40060000
Net: , dwmac.44002000
Hit any key to stop autoboot: 0
=> [CC_I|goal_lmLogLegacy:1152] [I|goal_cmInit:209] Calculated config size of 656 in 3 modules
[CC_I|goal_lmLogLegacy:1152] [I|goal_queuePoolBufsReq:776] ID(35) requests buffers[1556]
[CC_I|goal_lmLogLegacy:1152] [I|goal_queuePoolBufsReq:777] fixed/temp = 1, 0
[CC_I|goal_lmLogLegacy:1152] [I|goal_queuePoolBufsReq:776] ID(35) requests buffers[1556]
