RZ/T2M Group RZ/T2M Motor Solution Board Hardware Manual
R01AN5986EJ0100 Rev.1.00 Page 23 of 30
Jul.31.21
4. Controller board, inverter board connection configuration
By connecting the RZ / T2M motor controller board and the inverter board, it is possible to expand the
controlled motor to 1 channel and 2 channel. Table 4.1 is shown a list of controller board and inverter board
connection configurations.
Table 4.1 Controller board, inverter board connection configuration list
No
Constitution
Motor
Connection
Jumper
remarks
1
Constitution1
(
Standard
configuration)
1ch
Connect P2900 and P8 with a flat cable
Default
2
Constitution2
1ch
Connect P2901 and P8 (B to B connection)
Default
3
Constitution3
2ch
Connect P2901 and P12 (inverter board A)
Default
Inverter board A / B has
different mounting parts
Connect P3001 and P8 (inverter board B)

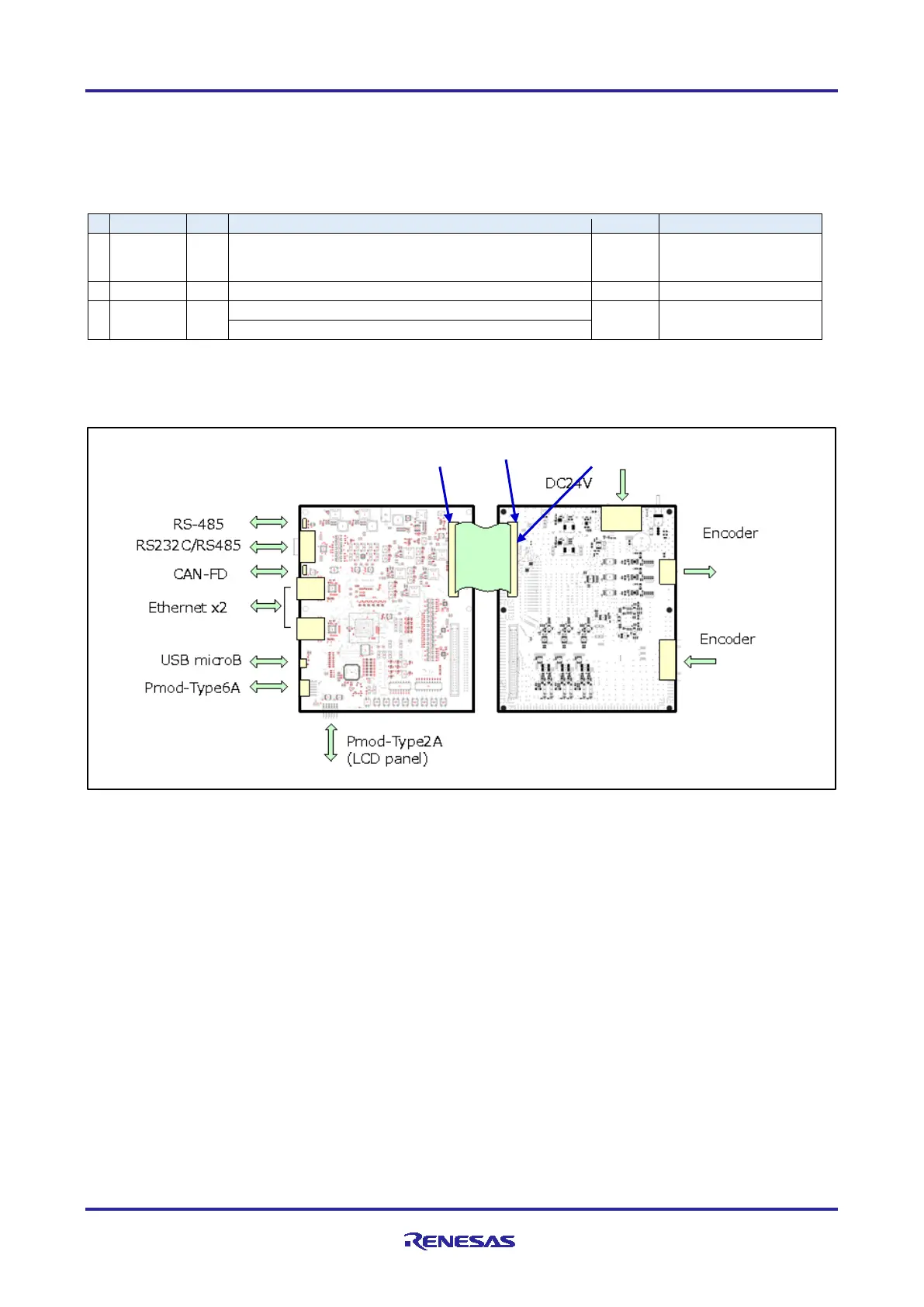

4.1 Constitution1(Motor:1ch,Flat cable connection)
Figure 4.1
Constitution1
Controller board
Inverter board
P2900
P8
Flat cable
