RZ/T2M Group RZ/T2M Motor Solution Board Hardware Manual
R01AN5986EJ0100 Rev.1.00 Page 24 of 30
Jul.31.21
4.2 Constitution2 (Motor:1ch, B to B connection)

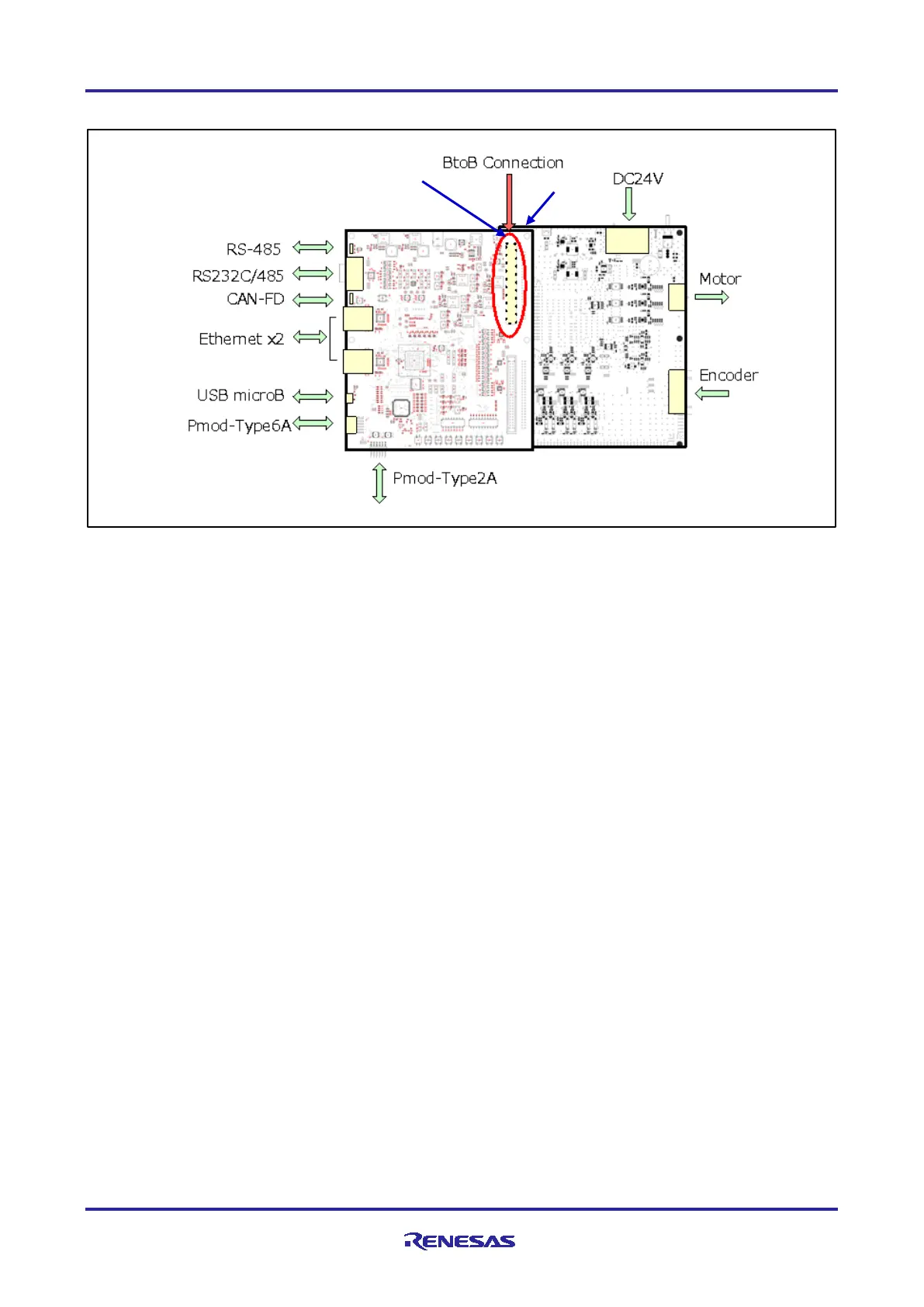

Figure 4.2 Constitution2
P2901
P8
Controller board
Inverter board
