Renishaw HSI Installation Guide

2.5
HSI basics
Solid-state relay (SSR)
The SSR relay is configured as follows:
Normally closed (NC)
or
Normally open (NO)
Maximum current is ±50 mA.
Maximum voltage is 30 V.
NOTE: Change of state debounce time is 25ms ±5ms. Debounce time is the time delay between the
HSI responding to a probe trigger and the point at which the probe can be used again.

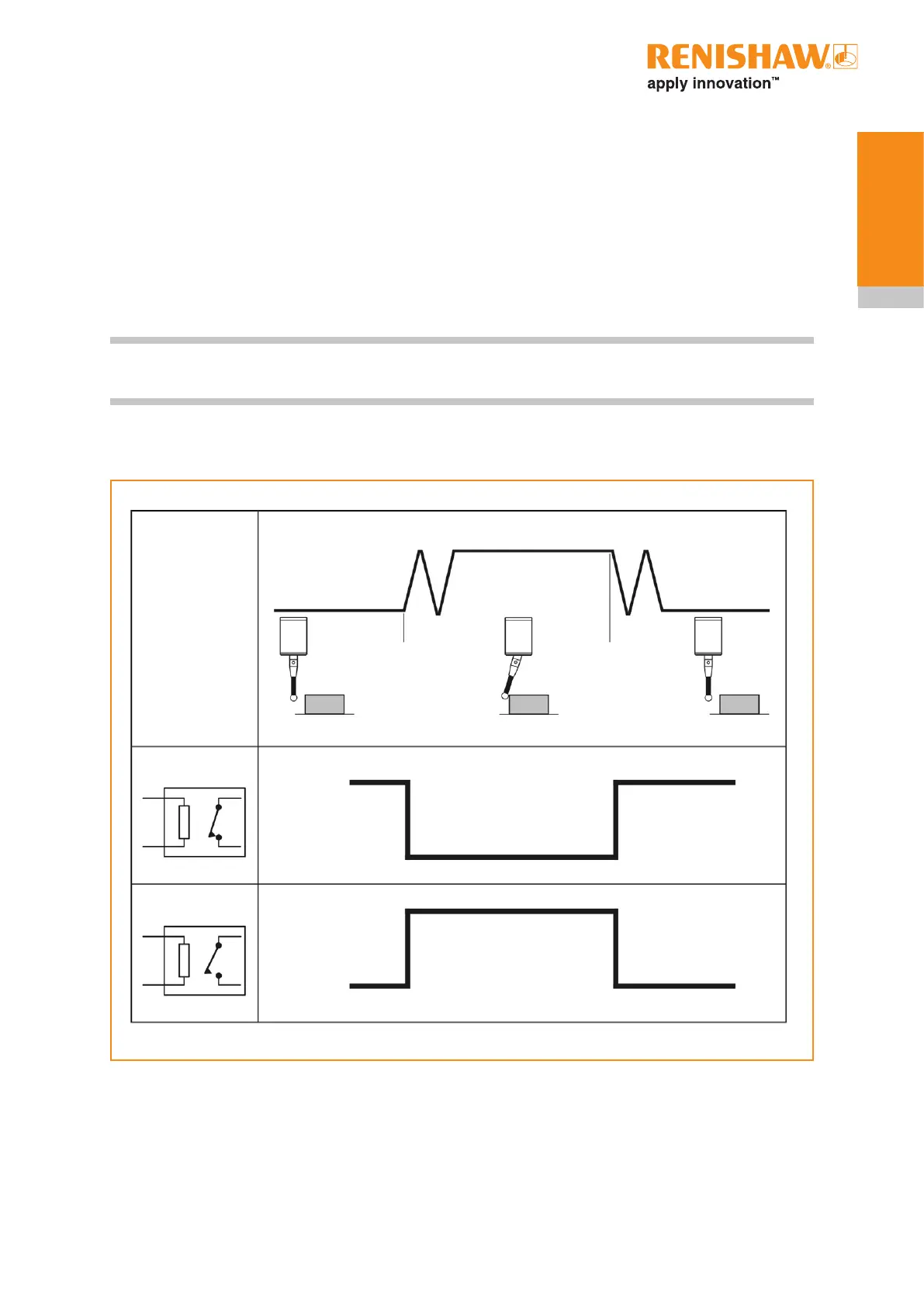

SSR
OUTPUT
OPTIONS
PROBE
STATUS
Stylus contact bounce
Reseat
At rest
Deflected At rest
Trigger point
Move clear
Closed
Open
Open
Closed
Status NC
Status NO
