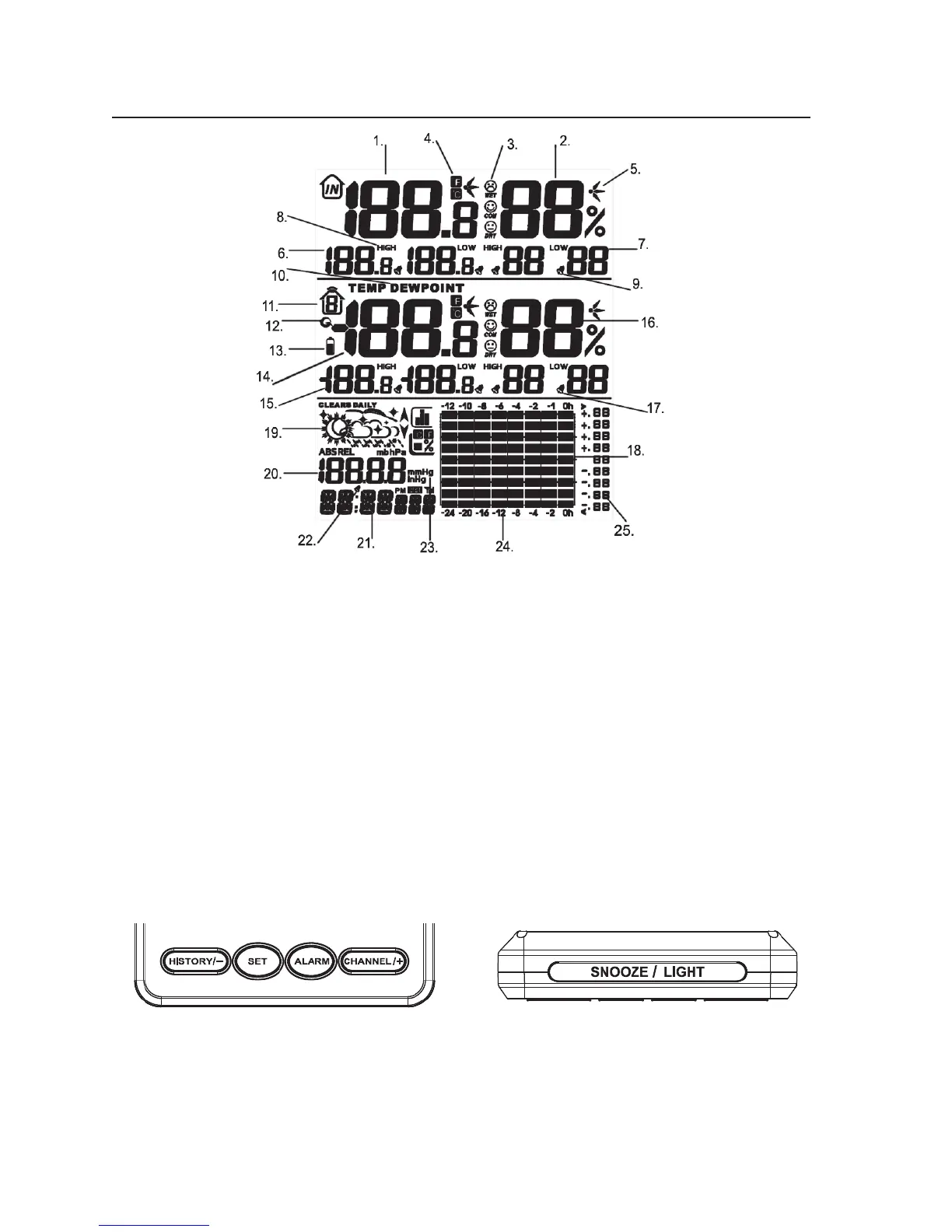

8. Operating elements and display description
1 Indoor temperature
13 Battery symbol for outdoor sensors
14 Outdoor temperature
15 Min./Max. Display for outdoor temperature and
humidity
16 Outdoor humidity
17 Alarm symbols outdoor unit (outdoor sensor) (High/
Low for temperature and humidity)
18 Graphical display (temperature, humidity and baro-
metric pressure)
19 Weather forecast
20 Barometric pressure
21 Display range date/time
22 Alarm symbol time
23 Barometric pressure unit
24 12h/24h display
25 Value of the change for temperature, humidity, baro-
metric pressure
2 Indoor humidity
3 Comfort indicators
4 Symbols degrees Celsius (°C) or degrees Fahrenheit
(°F)
5 Trend displays for temperature and humidity
6
Min./Max. Display for indoor temperature and humidity
7 LOW (temperature and humidity)
8 HIGH (temperature and humidity)
9 Alarm symbols inner unit (basic station) (High/Low for
temperature and humidity)
10 Display of temperature or dewpoint
11 Channel number outdoor sensor (1 - 8)
12 Symbol Scroll Mode
“HISTORY/-” button “SNOOZE/LIGHT” button
“SET” button
“ALARM” button
“CHANNEL/+” button
