Renogy 48V - Page 9

08
Product Overview
Key Parts
3
4
12
13
14
15
16
5
7
8
9
10
11
1

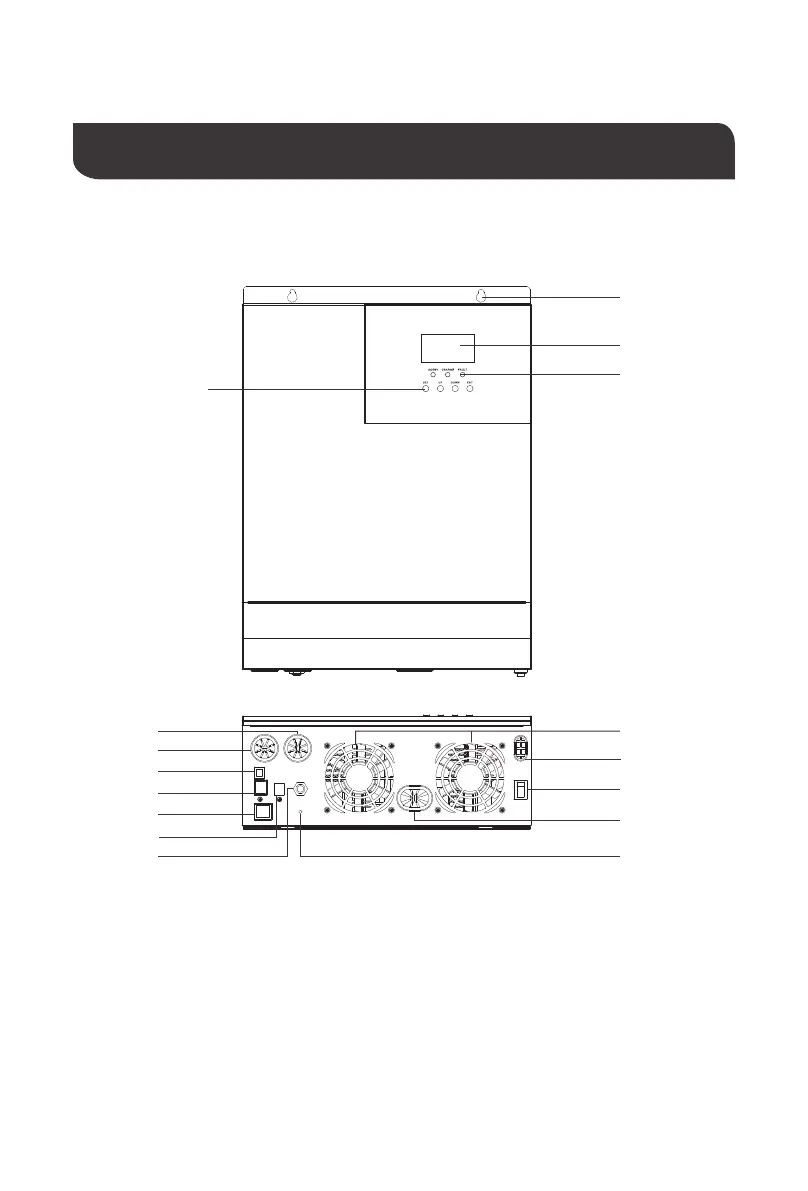

Identification of Parts
1. LCD Buttons
2. Mounting Holes
3. LCD Screen
4. LED Indicators
5. AC Input Breaker
6. Wired Remote Port
7. Dry Contact Port
8. RS485/CAN Communication Port
9. USB Debugging Port (Internal Use)
10. AC Input Terminal
11. AC Output Terminal
12. Cooling Fans
13. PV Input Terminal
14. Main On/Off/Remote Power Switch
15. Battery Input Terminal
16. Grounding Lug
2
6
