Renogy PCL Series User Manual

20
05 Setup Battery Type
A.G.M.2
Calcium
De-sulphation
14.6 13.7
14.4 13.6
14.4 13.8
14.8 13.8
15.1 13.6
15.5 for 4 hrs
Gel 2
Type of battery
14.0 13.7
A.G.M.1
14.1 13.4
Gel 1
For Charging to be
accurate, Temperature
Sensor must be connected.

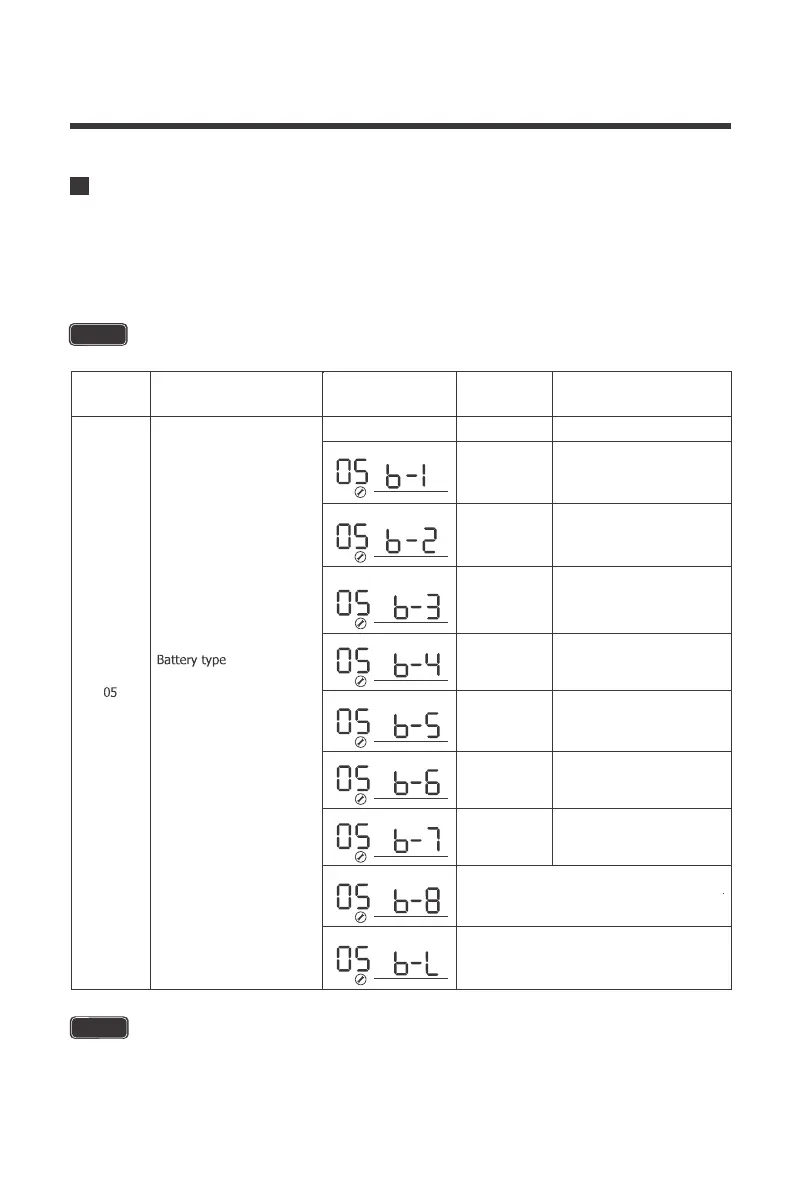

The PCL inverter charger series is fully programmable. The minimum programming needed to
get started would be to set the battery type. Press and hold the parameter setting key to enter
parameter setting mode. Use the arrow keys to go to Program 05. Use the following table to set
the appropriate battery type based on the boost voltage and float voltage that has been preset.
The PCL series is only compatible with 12V battery banks.
NOTE
Lithium charging is preset to 14.7V charging. When charging the battery and it
reaches the 14.7V setpoint it will stop charging the battery. Upon normal use, when
the voltage of the battery drops down to 12.4 and below, charging will resume.
NOTE
Program
Number
Parameter
Setting
Description
Boost
Voltage
Float
Voltage
When battery voltage reaches 14.7V
charging will stop. When battery voltage
drops below 12.5V charging will resume.
Sealed Lead Acid
Open Lead Acid / Flooded
Li
