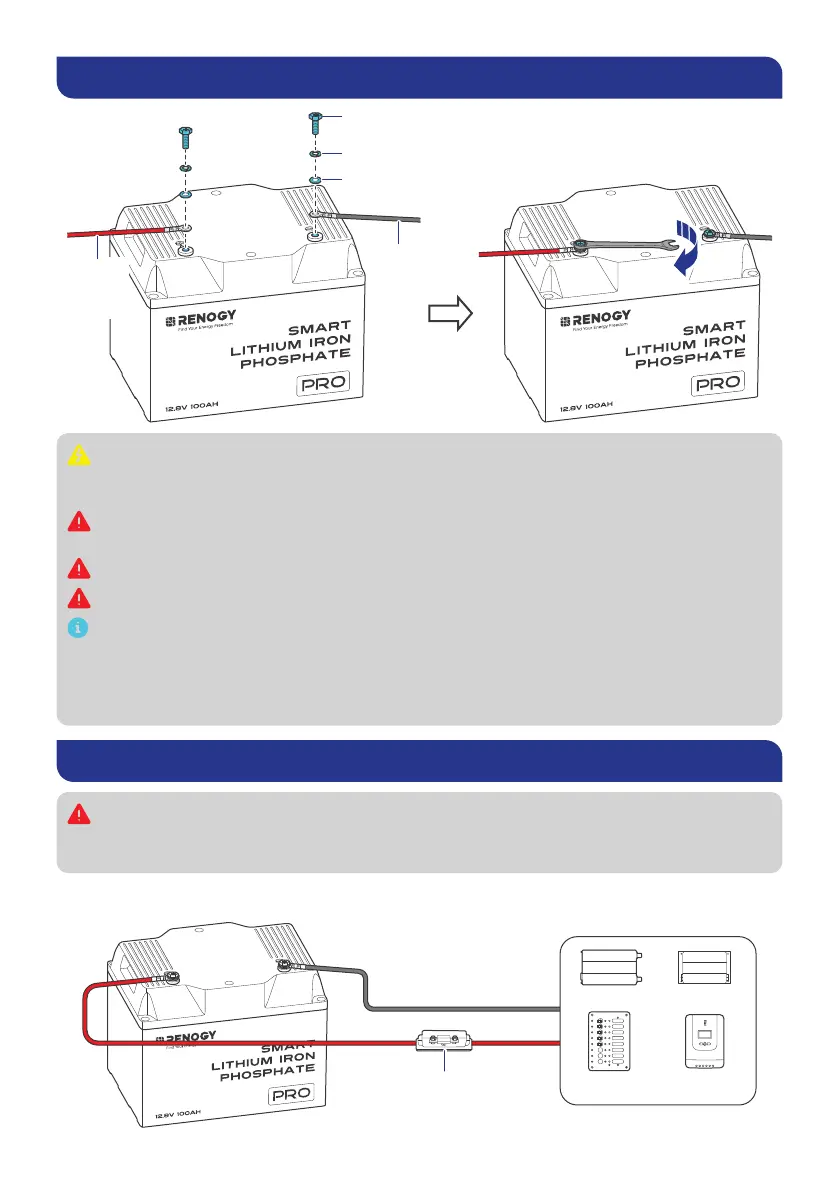

Step 4. Install Battery Terminals
70.8 in·lbs
(8 N·m)
Battery
Adapter
Cable
Battery
Cable
Spring Washer
Flat Washer
Ensure the cable lug and the top surface of the terminal are in contact, and place the
washers on top of the lug. Do not place the washers between the battery terminal and the
cable lug to avoid high resistance and excessive heating.
Avoid short-circuiting the battery terminals to prevent irreversible damage to the system
and battery caused by current bursts.
Verify polarity before wiring to avoid irreversible battery damage due to polarity reversal.
Do not touch the positive and negative terminals of the battery with your hands.
To ensure safe and reliable operation of the system, please follow the torque specifications
recommended by the manufacturer when securing cable connections. Over-tightening
can result in terminal breakage, while loose connections can lead to terminal meltdown or
fire. When securing multiple cable lugs on a single battery terminal, use the included Long
Terminal Bolts.
Step 5. Connect the Battery to Other Devices
Please use circuit breakers, fuses, or disconnects appropriately sized by a certified
electrician, licensed installers, or regional code authorities to protect all electrical
equipment.
█
For a Single Battery
Inverter DC-DC Charger
DC Distribution
Panel
Charge
Controller
Battery Fuse
To Next Page
